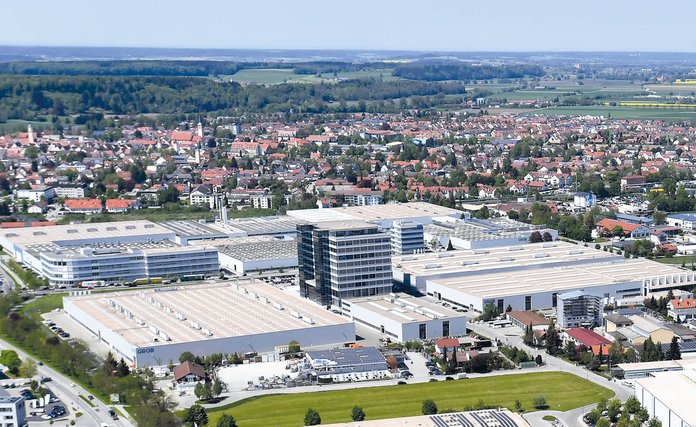

GROB-WERKE GmbH & Co. KG
GROB-WERKE | Plant & machine engineering | Global
Reliable lighting for demanding manufacturing processes
GROB-WERKE is a globally active plant and machine engineering company with production facilities in Europe, the Americas, and Asia. The company develops highly automated manufacturing solutions for automotive production, assembly technology, e-mobility, and universal machine engineering. GROB also leverages innovative technologies in additive manufacturing.
In the GMP300 metal 3D printing system (Liquid Metal Printing), components are built layer by layer at elevated ambient temperatures. Powerful, temperature-resistant lighting of the build chamber is essential for safe process monitoring.
Product: TUBELED_40 II RGB-W
Application: Build chamber lighting in metal 3D printing systems
Benefit: Temperature-resistant lighting, process visibility, signaling
A performance-optimized LED machine light with RGB-W functionality is used. Thanks to advanced thermal management, the light operates reliably at ambient temperatures of up to 158 °F. In addition to uniform white-light illumination, the RGB function enables color-coded signaling of process states or production progress.
The installed luminaire is part of LED2WORK’s family of slim, high-output machine lights, featuring IP67/IP69K protection, safety glass, and high resistance to chips, oils, and coolants. This makes it ideal for harsh production environments and enclosed machine spaces.

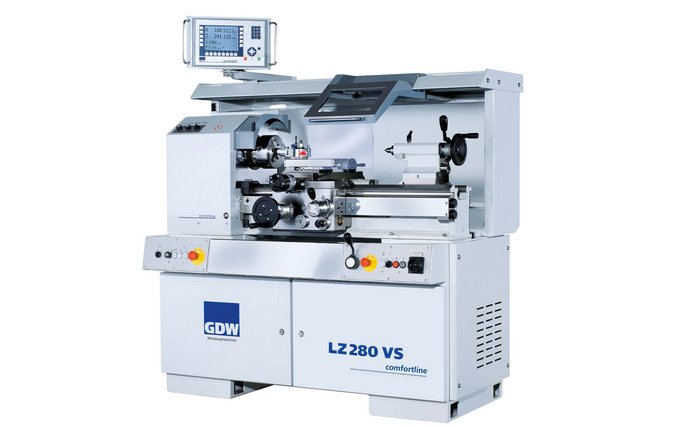

GDW Werkzeugmaschinen GmbH
GDW machine tools | Precision lathes
Optimal visibility for manual and automated turning operations
GDW Werkzeugmaschinen GmbH designs and manufactures high-quality precision lathes—from conventional manual lever machines to CNC-controlled turret lathes. The modular product lines enable application-specific customization to meet individual customer requirements.
Since many work steps—from setup to changeover—are performed manually, reliable, high-output lighting directly in the work area is essential. To optimally illuminate the area between the chuck and spindle, GDW relies on LED machine lights from LED2WORK.
Product: TUBELED_40 II ECO
Application: Work area lighting in lathes
Benefit: Clear visibility, high process reliability, long service life
The installed LED machine lights feature a rugged design with IP67/IP69K protection and high resistance to coolants, lubricants, and chip impact. Daylight-white area lighting provides high-contrast, low-shadow illumination of the work zone. Thanks to light-forming technology and opal glare control beneath safety glass, the light is distributed evenly.
The lights are vibration- and shock-resistant, can be mounted flexibly, and are powered directly from the machine supply. Modern LED chips deliver high light output with low power consumption and reduced heat generation. In addition, the light offers an ON/OFF interface for load-free switching, flashing, and dimming—ideal for future digital machine concepts.

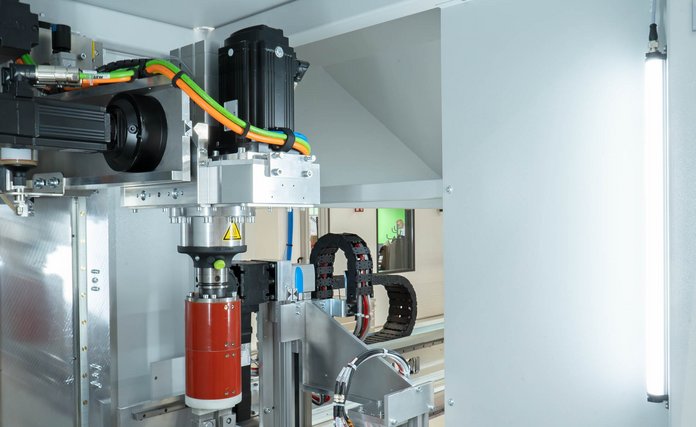

OTEC Oberflächentechnik GmbH
OTEC Precision Finishing | Surface finishing machinery
High-contrast lighting for perfect surface quality
OTEC Precision Finishing designs and manufactures machines for deburring, grinding, smoothing, and polishing. The systems are used worldwide in the automotive, medical, electrical, toolmaking, and mechanical engineering industries, as well as in the watch and jewelry sectors. At the Straubenhardt facility, high-precision solutions for processing metal, ceramics, and plastics are produced.
For nearly ten years, OTEC has consistently relied on LED lighting from LED2WORK to equip its machines. The goal is detailed, high-contrast illumination of all relevant work and process areas—from assembly through final finishing.
Product: LEANLED II, TUBELED_40 II POWER, TUBELED_40 II RGB-W
Application: Lighting in grinding, polishing, and deburring systems
Benefit: Precise visibility, rugged industrial lighting, visual process signaling
Depending on the application, the LED2WORK machine lights used provide protection ratings from IP54 to IP67/IP69K, making them suitable for both dry machines and harsh production environments. Daylight-white area lighting ensures uniform, low-shadow illumination. Modern LED chips deliver high light output with low power consumption.
RGB-W lights are used in setup and loading areas, enabling color-coded signaling of process states—an ideal space-saving alternative to traditional signal towers. The lights are vibration- and shock-resistant, protected against chip impact, and designed for elevated ambient temperatures of up to 158 °F. In addition, ON/OFF interfaces for switching, flashing, and dimming are available—ready for future digital machine concepts.

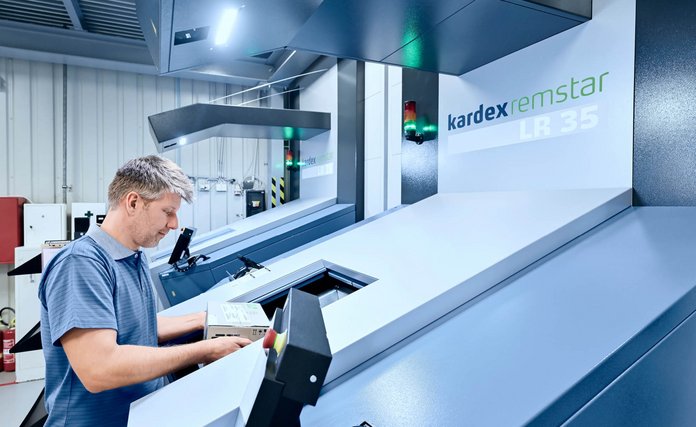

Kardex Remstar
Kardex Remstar | Automated storage systems
Precision lighting for efficient order picking operations
Kardex Remstar designs and delivers automated storage systems to optimize warehouse and material handling processes. As part of the globally operating Kardex Group, the company stands for efficient intralogistics solutions that maximize available space and consistently automate manual tasks.
At its Neuburg an der Kammel facility, customized systems are manufactured for the German market, including the Vertical Buffer Module—a scalable, fully automated storage concept for bins and trays. The systems are software-controlled and enable precise storage and retrieval in both horizontal and vertical directions.
Product: TUBELED_40 II POWER, LEANLED II
Application: Lighting for picking and retrieval areas
Benefit: Safe picking, error-free order fulfillment, ergonomic visibility
The LED2WORK light is integrated into the cantilever above the rotary table, providing targeted illumination of the access area. On/off control is conveniently handled via the system control panel. Despite its compact form factor, the light delivers high lumen output—ideal for tight installation spaces in automated systems.
Featuring modern LED technology, the light provides flicker-free 100° area lighting, is vibration- and shock-resistant, and contains no UV or IR components. An ON/OFF interface enables load-free switching; flashing and dimming are also supported. Integration uses standard automation connectors—perfectly suited for networked storage systems.
