TUBELED_70 EVO

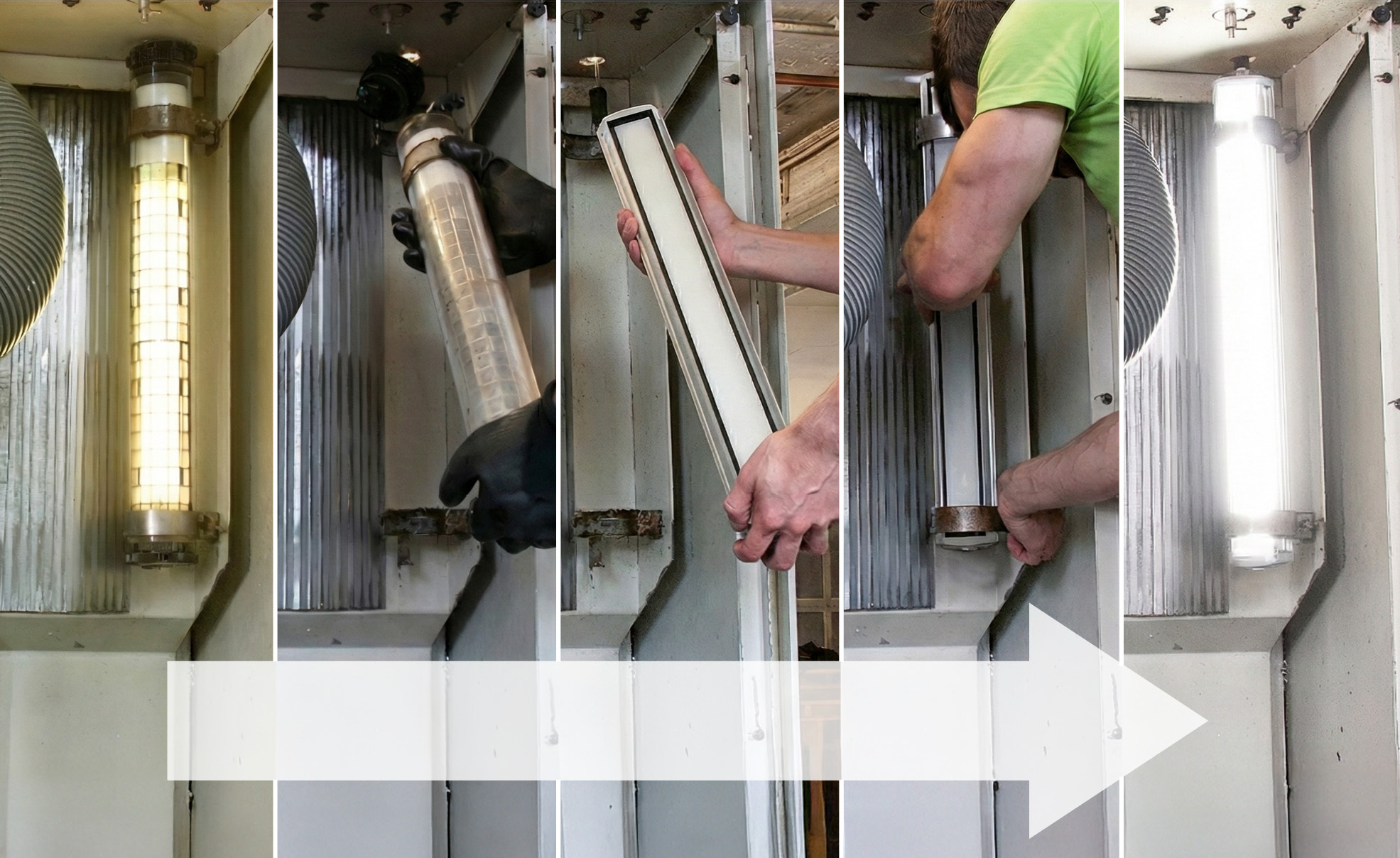

The TUBELED_70 EVO: Simple to retrofit, instantly bright
whether replacing older lighting systems.
With a diameter of 70 mm and optimized thermal management the T70 EVO ensures reliable, long-term light output even in tough industrial environments.
The right choice for anyone who wants machine lighting that’s future-ready, rugged, and easy to upgrade.
Your Benefits
- Bright, flicker-free illumination without harmful UV or IR radiation
- Compact design for easy installation or retrofit
- Resistant to flying chips, vibration, and shock – thermally robust for CNC environments
- 100° beam angle and high color rendering – custom optics available on request
- Available as both DC and AC machine light
- Certifications: CE, UKCA, ETL
- German manufacturing quality – durable, precise, and backed by a 5-year warranty
Application Areas
- Metalworking
- CNC and machine tools
- Industrial applications
- Plastics processing
- Outdoor applications
- Retrofit
- Vision
Technology
- High-performance LED chips with daylight white light (5700 K) – extremely bright and efficient
- Extruded aluminum housing for optimal heat dissipation – prevents coolant residue buildup
- Oil-resistant FKM seals (Viton®) ensure long-lasting tightness and durability
- Shatter-resistant 4 mm toughened glass with opal diffuser for uniform, glare-free illumination

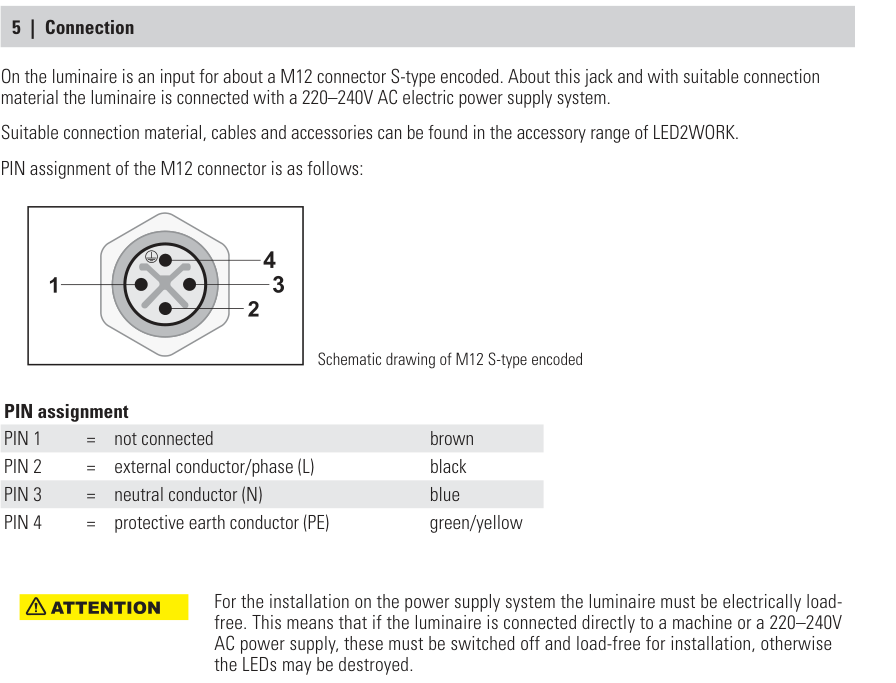

- Connection options: 24 V DC (with M12 A-coded connector) or 120–277 V AC (with M12 S-coded connector)
- Mounting via separately available mounting components
| Article number | Power consumption | Lamp luminous flux | Data sheet | ||
|---|---|---|---|---|---|
| TUBELED_70 EVO, 100°, ~11,81“, 24V DC | 156010-01 | 12 W | 1899 lm | Data sheet | |
| TUBELED_70 EVO, 100°, ~20,08“, 24V DC | 156110-01 | 21 W | 3164 lm | Data sheet | |
| TUBELED_70 EVO, 100°, ~22,05“, 24V DC | 156210-01 | 24 W | 3798 lm | Data sheet | |
| TUBELED_70 EVO, 100°, ~31,1“, 24V DC | 156310-01 | 37 W | 5697 lm | Data sheet | |
| TUBELED_70 EVO, 100°, ~43,31“, 24V DC | 156410-01 | 48 W | 7596 lm | Data sheet | |
| TUBELED_70 EVO, 100°, ~62,2“, 24V DC | 156510-01 | 74 W | 11394 lm | Data sheet |
| Article number | Power consumption | Lamp luminous flux | Data sheet | ||
|---|---|---|---|---|---|
| TUBELED_70 EVO, 100°, ~11,81“, 120-277V AC | 156010-11 | 12 W | 1899 lm | Data sheet | |
| TUBELED_70 EVO, 100°, ~20,08“, 120-277V AC | 156110-11 | 21 W | 3164 lm | Data sheet | |
| TUBELED_70 EVO, 100°, ~22,05“, 120-277V AC | 156210-11 | 25 W | 3798 lm | Data sheet | |
| TUBELED_70 EVO, 100°, ~31,1“, 120-277V AC | 156310-11 | 37 W | 5697 lm | Data sheet | |
| TUBELED_70 EVO, 100°, ~43,31“, 120-277V AC | 156410-11 | 49 W | 7596 lm | Data sheet | |
| TUBELED_70 EVO, 100°, ~62,2“, 120-277V AC | 156510-11 | 74 W | 11394 lm | Data sheet |
