DOMELED light holder V2A
Item No.: 210200-30
DOMELED

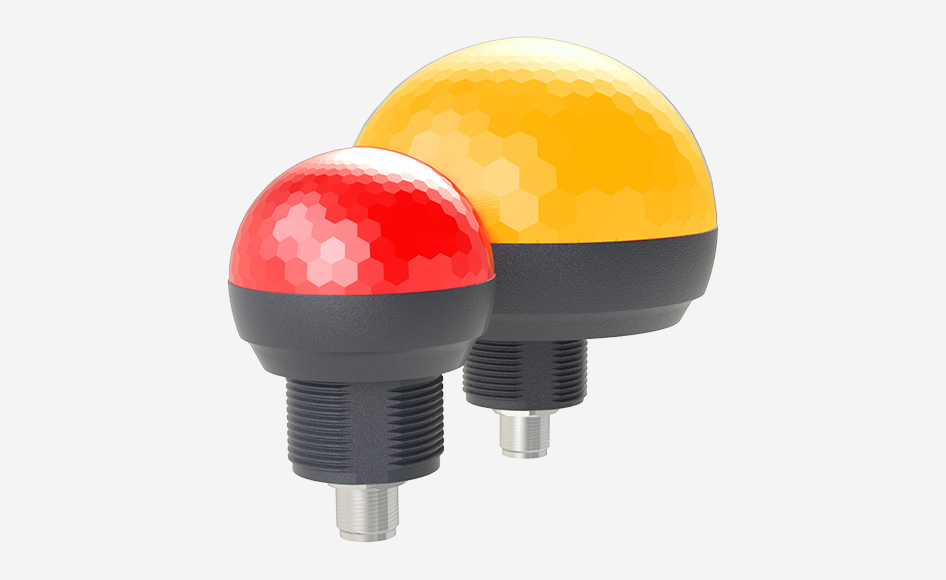

Compact LED signal light with 360° signaling function and integrated white light channel.
As small as a tennis ball yet impossible to miss, the DOMELED provides 360° all-around status indication—with steady or flashing light in red, yellow, or green.
Its compact 50 mm housing makes it ideal for tight machine spaces, while the 90 mm version delivers maximum visibility and signaling performance where required. The honeycomb optic ensures uniform light distribution and clear signal recognition from any viewing angle.

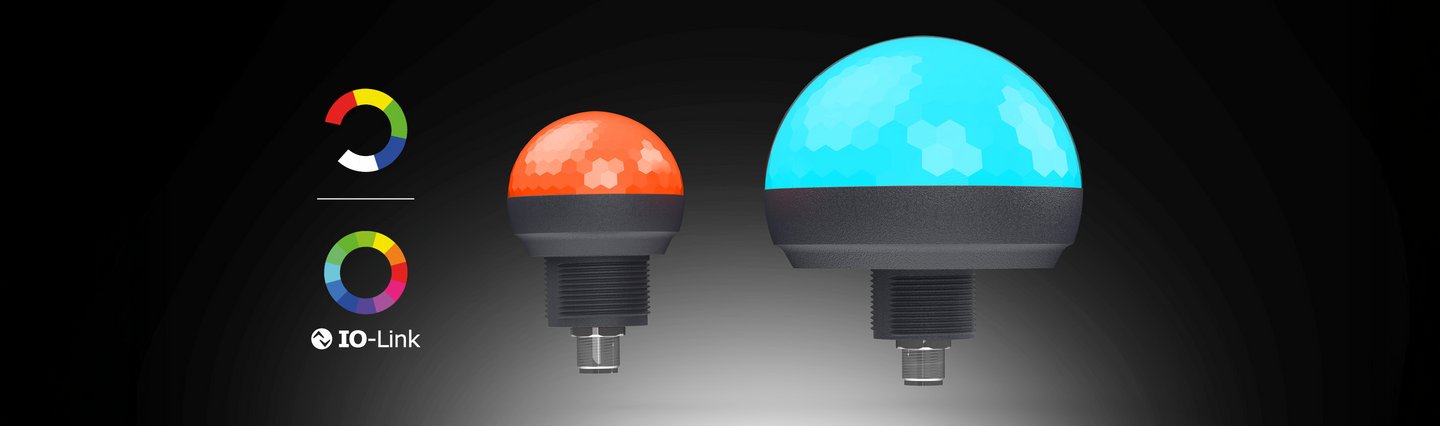

Available as a standard 24 V DC version or as an IO-Link variant for intelligent, configurable signaling directly from the control system—ideal for modern industrial environments.
Your Benefits
- 360° visible LED signal light for machines and systems – powerful signaling, flicker-free, and free of UV and IR radiation
- Freely configurable RGB colors and flash modes – via IO-Link or standard control for precise status indication
- Rugged, compact design – ideal for retrofitting and easy system integration
- Maximum protection: IP67 – dust-tight and waterproof for industrial environments
- Certified to CE, UKCA, and ETL – tested to international industrial standards
- Developed in Germany and manufactured to strict quality standards, backed by a 5-year warranty
Application Areas
- Status indication
- Safety
- Pick-to-light
Technology
- Multicolor LED chip with standard colors or freely selectable RGB color control via IO-Link
- Color changes and flash functions can be individually parameterized
- Direct control via the light itself or through IO-Link in combination with sensors and actuators

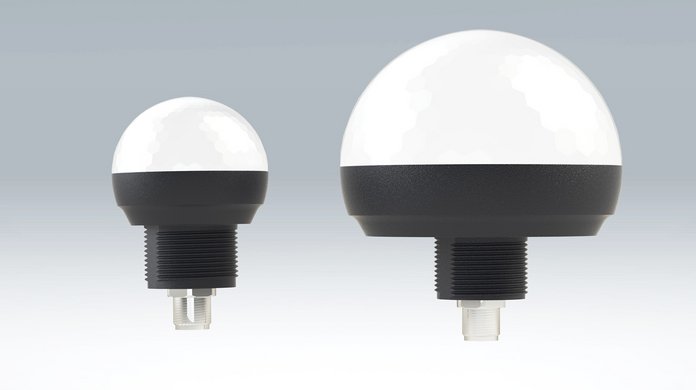

- Opal honeycomb diffuser and translucent cover ensure uniform, glare-free light distribution
- Highly visible 180° optical design provides optimal signaling performance in industrial applications

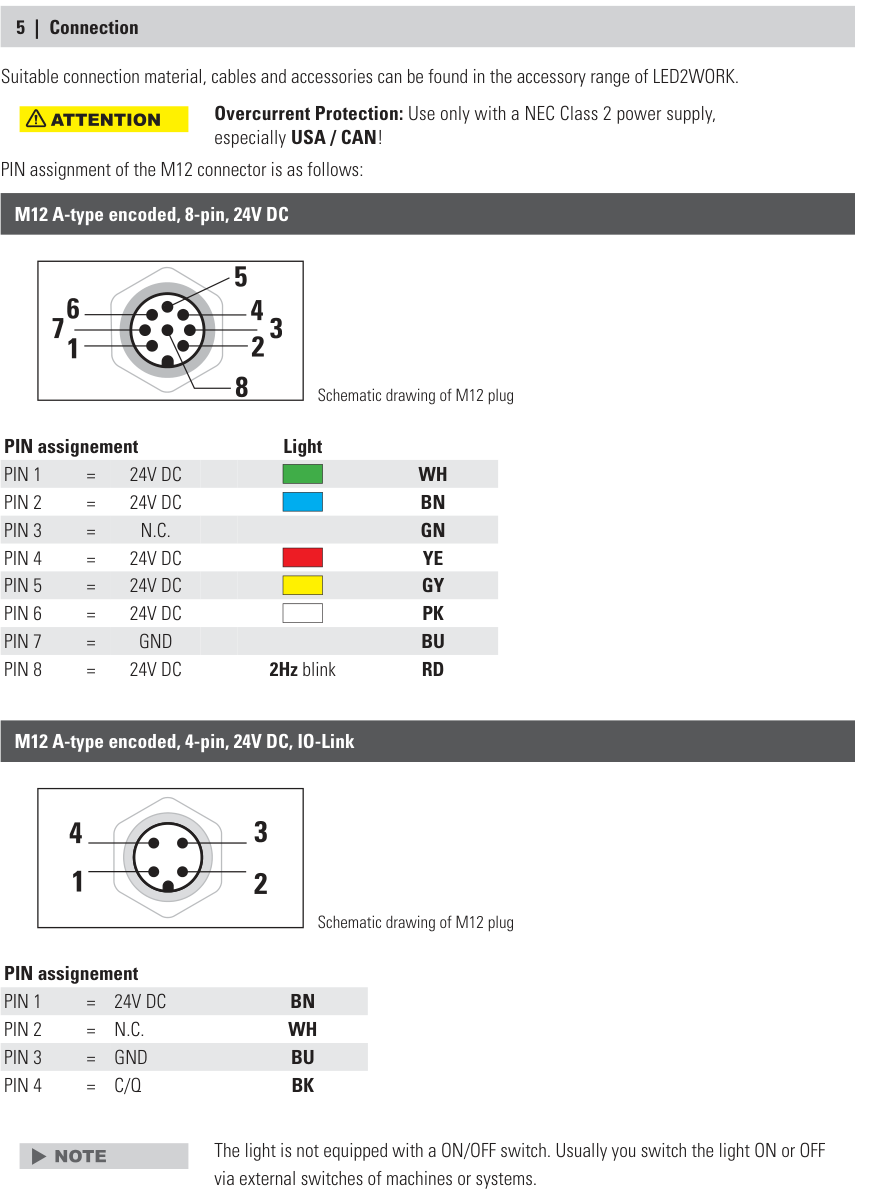

- Rugged M12 connector – for easy and secure integration into existing control systems
Product Accessories
Product Accessories
DOMELED mounting tube, aluminum, 5.9 in
Item No.: 210200-36
DOMELED mounting tube, aluminum, 7.9 in
Item No.: 210200-37
DOMELED mounting tube, aluminum, 11.8 in
Item No.: 210200-38
