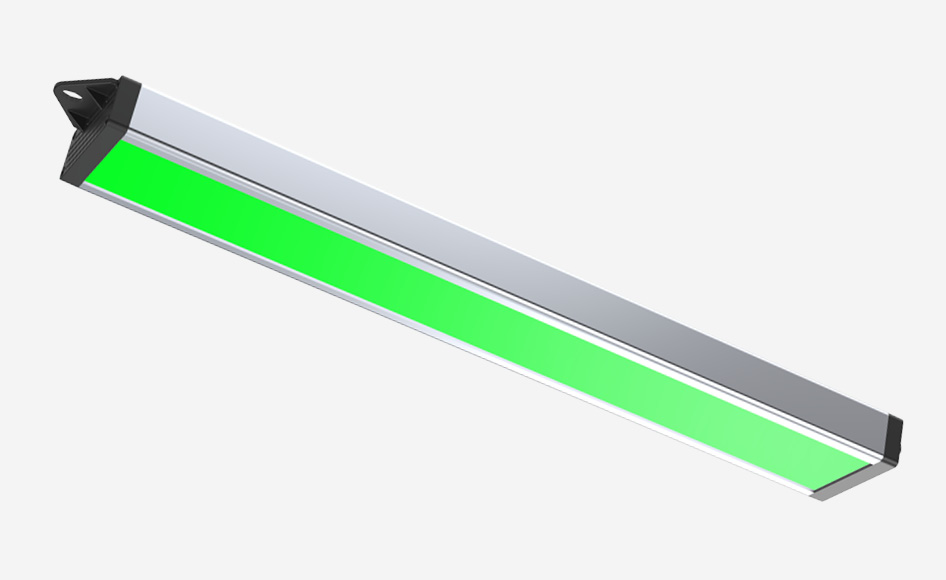

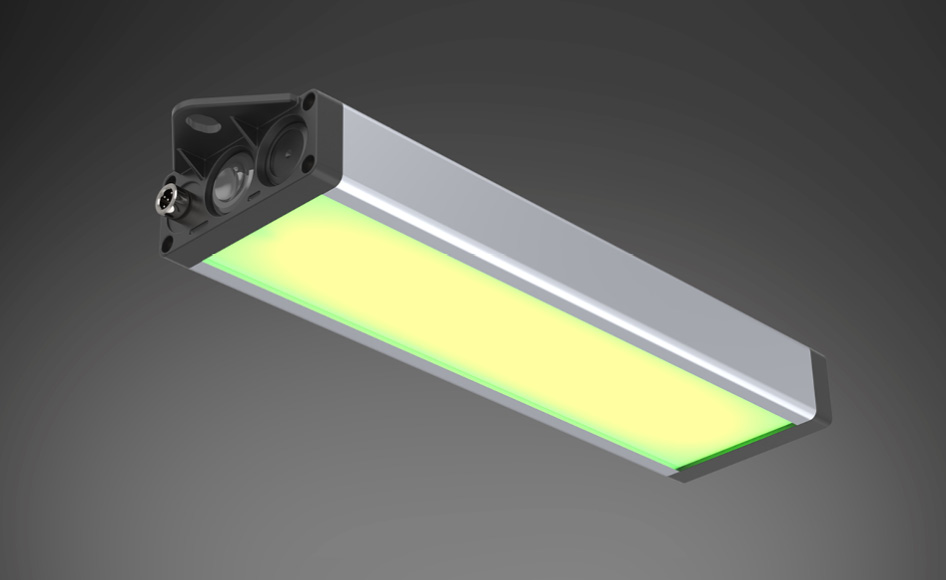

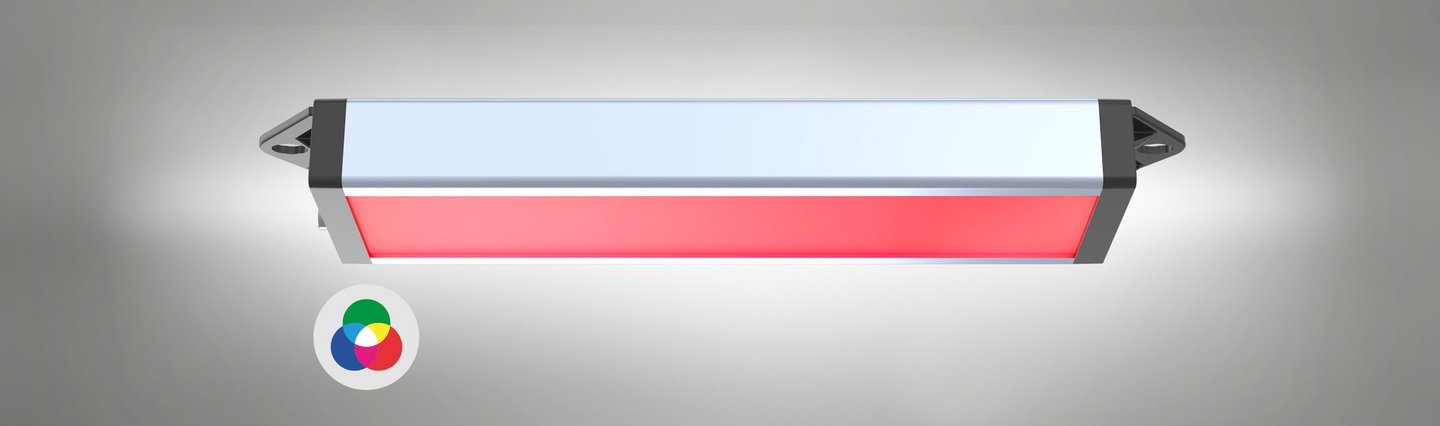

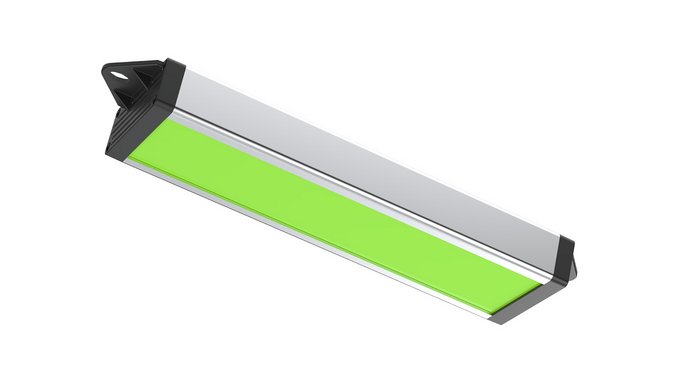

UNILED SL RGB-W

signal and workstation lighting in one.

The UNILED SL RGB-W got you covered with clean, steady white light with no flicker, and it can switch to red, green, or blue to show what is going on with your machine. When something changes, the color flips or starts flashing so people on the floor can catch it right away, which makes it perfect for assembly lines or test setups.

As part of the UNILED SL lineup, it brings strong signaling capability to the LED2WORK portfolio and gives you solid flexibility for a wide range of industrial applications.

Your Benefits

LED system light with flicker-free white light – fully configurable RGB colors and flashing modes
White light close to daylight (5000 K) – natural, high-contrast illumination
Opal diffuser for glare-free, wide-spreading light distribution
Adjustable and dimmable via optional accessories
Certified to CE, UKCA, and ETL – tested to meet international industrial standards
100% Made in Germany – durable manufacturing quality with a 5-year warranty

Application Areas

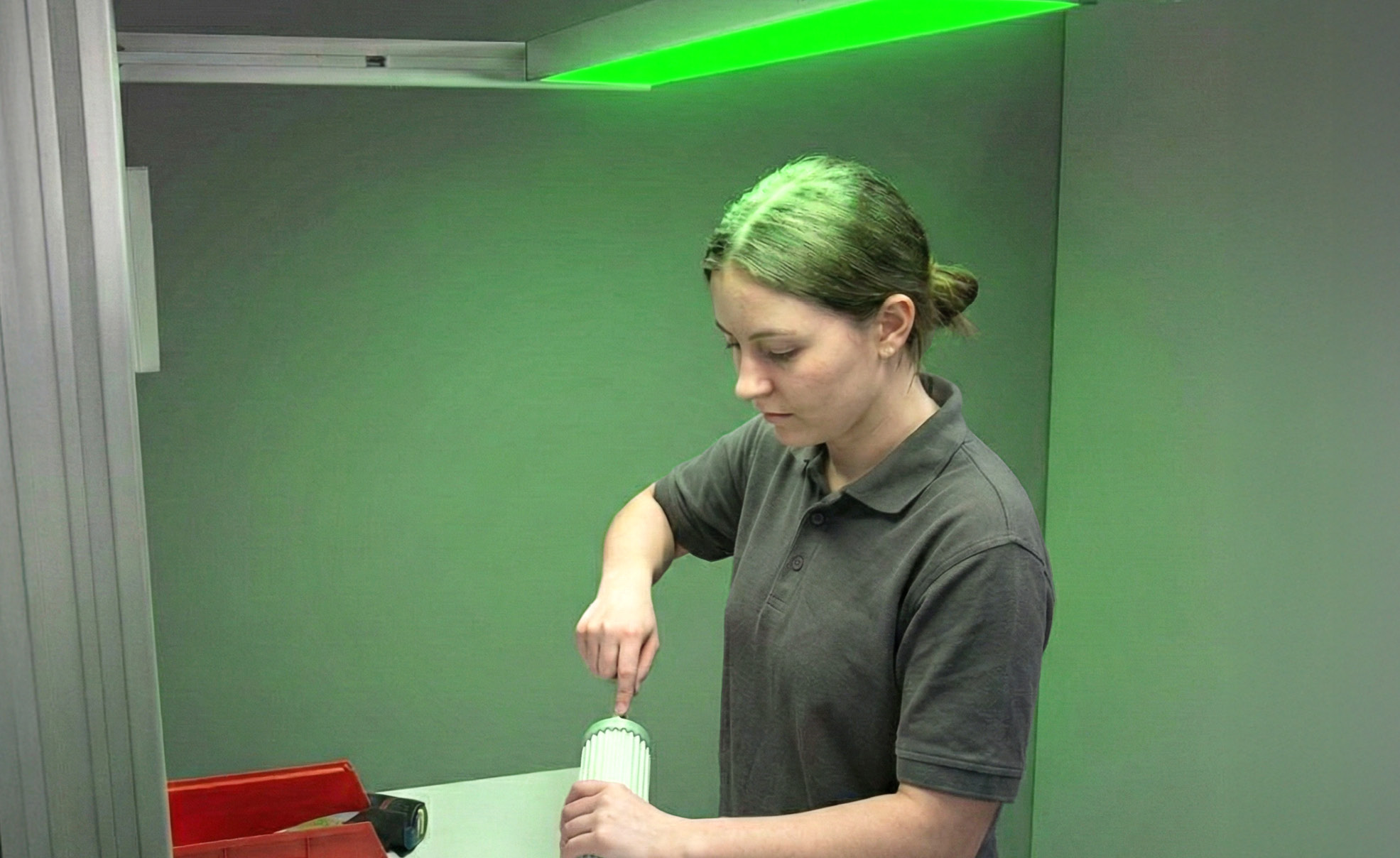

System workstations
assembly stations
Optical inspection workstations
Testing workstations
Color and paint inspection
Machines without coolant or flying chips

Technology

LED cluster with RGB and white light chips – combines signaling and work lighting in a single industrial LED light
Individual RGB color control allows freely selectable colors for status indication and visual alerts
Rugged aluminum housing with integrated mounting – ideal for horizontal installation
Efficient heat dissipation via aluminum base body ensures consistent light output and long service life
IP50 protection for reliable operation in industrial environments
24 V DC connection via standardized M12 connector – quick and easy to install

Service

OM UNILED SL RGB-W (2.03 MB, PDF)

	Article number	Lamp luminous flux RED	Lamp luminous flux GREEN	Lamp luminous flux BLUE	White lamp luminous flux	Data sheet
UNILED SL RGB-W, 11,61 inches, 24V DC	110994-11	240 lm	355 lm	150 lm	1215 lm	Data sheet
UNILED SL RGB-W, 21,46 inches, 24V DC	110994-12	480 lm	710 lm	300 lm	2430 lm	Data sheet
UNILED SL RGB-W, 41,14 inches, 24V DC	110994-13	960 lm	1420 lm	600 lm	4860 lm	Data sheet
UNILED SL RGB-W, 60,83 inches, 24V DC	110994-14	1440 lm	2130 lm	900 lm	7290 lm	Data sheet

add to request cart Download CAD

Product Accessories

UNILED SL luminaire holder joint bracket (1 pair)

Item No.: 213200-02

Datasheet
