Opener PROFILED

PROFILED

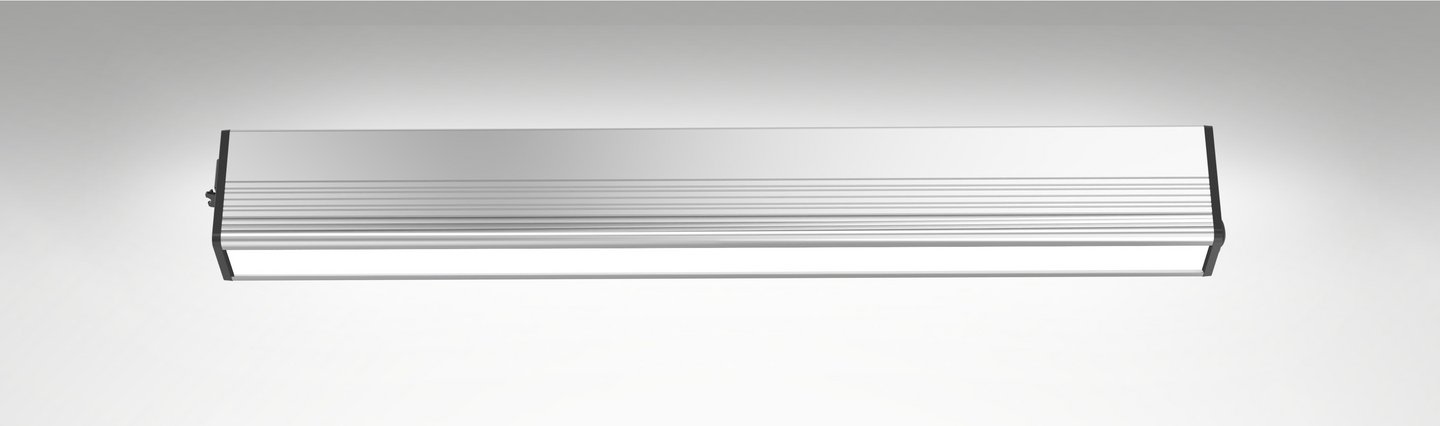

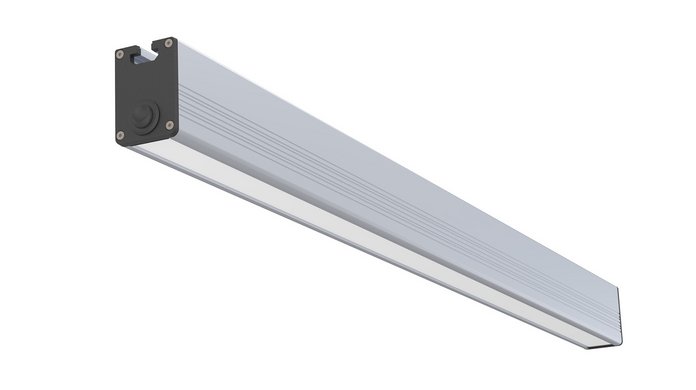

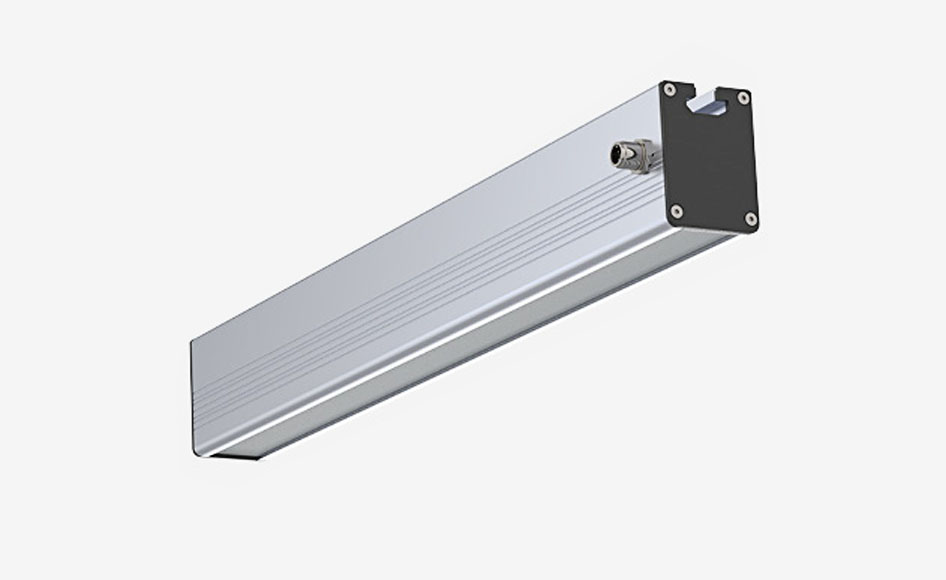

The PROFILED DC is a slim LED profile light designed for industrial use.

It provides bright, uniform, and glare-free lighting – suitable for all dry applications around technical systems, assembly lines, packaging stations, or as a workbench light in workshops.

The integrated T-slot in the profile housing allows flexible horizontal or vertical mounting, enabling easy integration into existing work environments. With its robust aluminum construction and energy-efficient LED technology, it delivers long service life and consistently high light quality.

24V DC
IP40
100 000h
14 °F - 140 °F
ETL (DC)

Your Benefits

  • Daylight white (5700 K) – natural, high-contrast light for precise work
  • Glare-free LED profile light with microprismatic optics (Ra > 85) – uniform, reflection-free illumination with high energy efficiency
  • Universally applicable – compact light, easy to install and flexible in use
  • Available in various versions – in lengths up to 1500 mm and optionally with integrated dimmer via pushbutton
  • Tested and certified to CE, UKCA, and ETL (DC) according to international industrial standards
  • 100% Made in Germany – durable manufacturing quality backed by a 5-year warranty

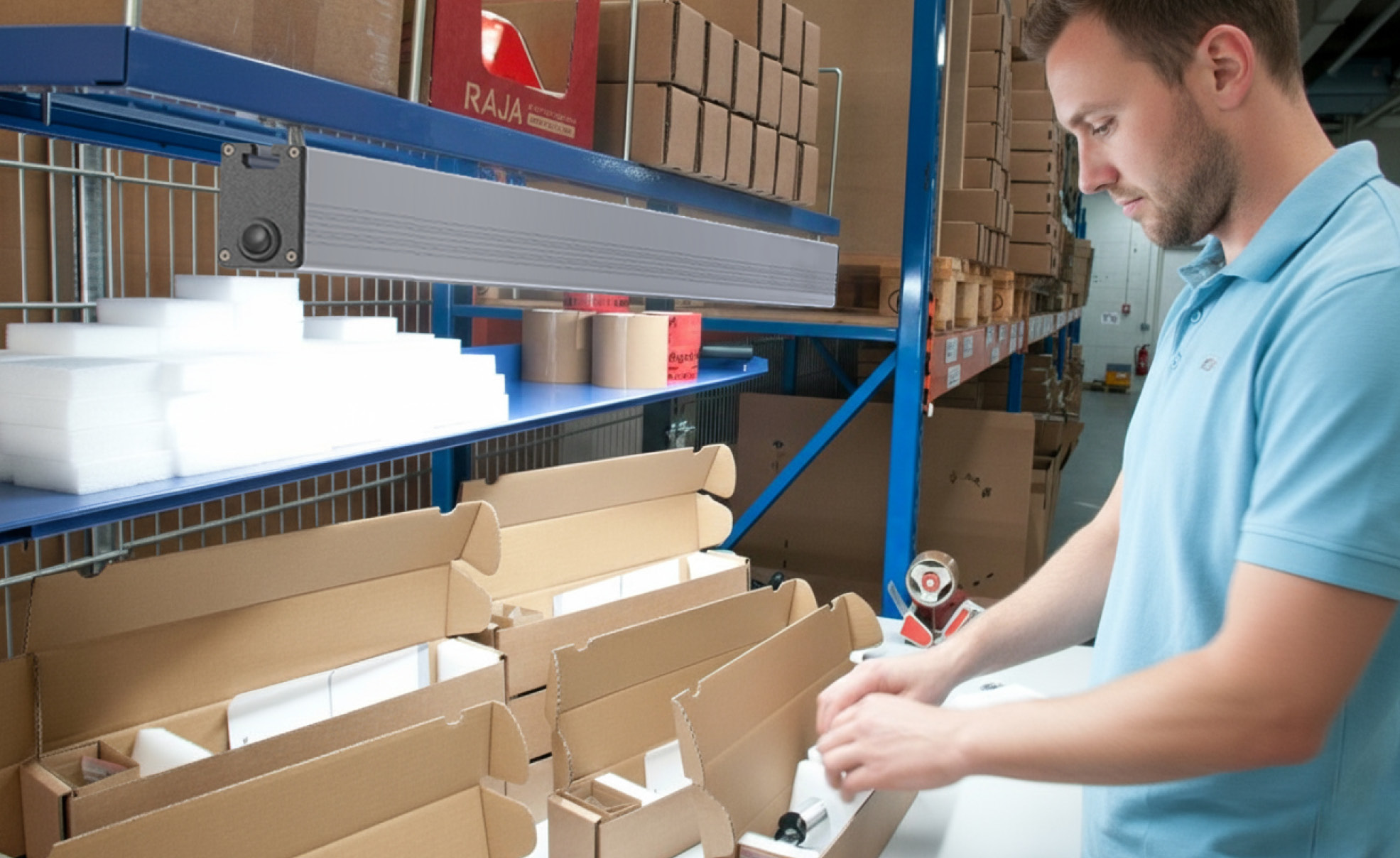

Application Areas

  • System workstations
  • assembly workstations
  • optical inspection workstations
  • inspection workstations
  • packaging stations and laboratory areas

Technology

  • High-efficiency LED chips (5700 K, Ra >85, 100°) – bright, high-contrast, and energy-efficient
  • Effective heat dissipation through aluminum housing ensures consistent light output and long service life
  • Protection rating IP40 – rugged construction for industrial applications
  • DC version: 24 V DC with M12 connector
  • Flexible mounting via T-slot in the profile or optional suspension kit

Service

Article number Power consumption Lamp luminous flux Data sheet
PROFILED DC, 19,69 inches, M12 A-coded, 24V DC 150314-01 ~11 W 1670 lm Data sheet
PROFILED DC, 19,69 inches, with dimmer, M12 A-coded, 24V DC 150314-02 ~11 W 1670 lm Data sheet
PROFILED DC, 35,43 inches, M12 A-coded, 24V DC 150614-01 ~21 W 3340 lm Data sheet
PROFILED DC, 35,43 inches, with dimmer, M12 A-coded, 24V DC 150614-02 ~21 W 3340 lm Data sheet
PROFILED DC, 39,37 inches, M12 A-coded, 24V DC 150714-01 ~23 W 3674 lm Data sheet
PROFILED DC, 39,37 inches, with dimmer, M12 A-coded, 24V DC 150714-02 ~23 W 3674 lm Data sheet
PROFILED DC, 47,24 inches, M12 A-coded, 24V DC 150814-01 ~30 W 4676 lm Data sheet
PROFILED DC, 47,24 inches, with dimmer, M12 A-coded, 24V DC 150814-02 ~30 W 4676 lm Data sheet
PROFILED DC, 59,06 inches, M12 A-coded, 24V DC 150914-01 ~37 W 5678 lm Data sheet
PROFILED DC, 59,06 inches, with dimmer, M12 A-coded, 24V DC 150914-02 ~37 W 5678 lm Data sheet
add to request cart Download CAD

Product Accessories

Product Accessories

Cable suspension for light fixtures with T-slot profile (1 pair)
Cable suspension for light fixtures with T-slot profile (1 pair)
Item No.: 213300-02
N10, Mounting kit for T-slot mounting SYSTEMLED / PROFILED (1 pair)
N10, Mounting kit for T-slot mounting SYSTEMLED / PROFILED (1 pair)
Item No.: 240400-03
Mounting kit for T-slot mounting SYSTEMLED EVO/ PROFILED (1 pair)
Mounting kit for T-slot mounting SYSTEMLED EVO/ PROFILED (1 pair)
Item No.: 240400-04
PROFILED / SYSTEMLED EVO Mounting kit for T-Nut slot holder T-Nut, flat, with ESD insulation (1 pair)
PROFILED / SYSTEMLED EVO Mounting kit for T-Nut slot holder T-Nut, flat, with ESD insulation (1 pair)
Item No.: 240400-05
SYSTEMLED EVO / PROFILED front bracket
SYSTEMLED EVO / PROFILED front bracket
Item No.: 240400-06
Mounting kit SYSTEMLED EVO sliding blocks N8
Mounting kit SYSTEMLED EVO sliding blocks N8
Item No.: 240400-07
PROFILED / SYSTEMLED Mounting kit for T-Nut slot holder T-Nut, rotatable, with ESD insulation (1 pair)
PROFILED / SYSTEMLED Mounting kit for T-Nut slot holder T-Nut, rotatable, with ESD insulation (1 pair)
Item No.: 240400-02
