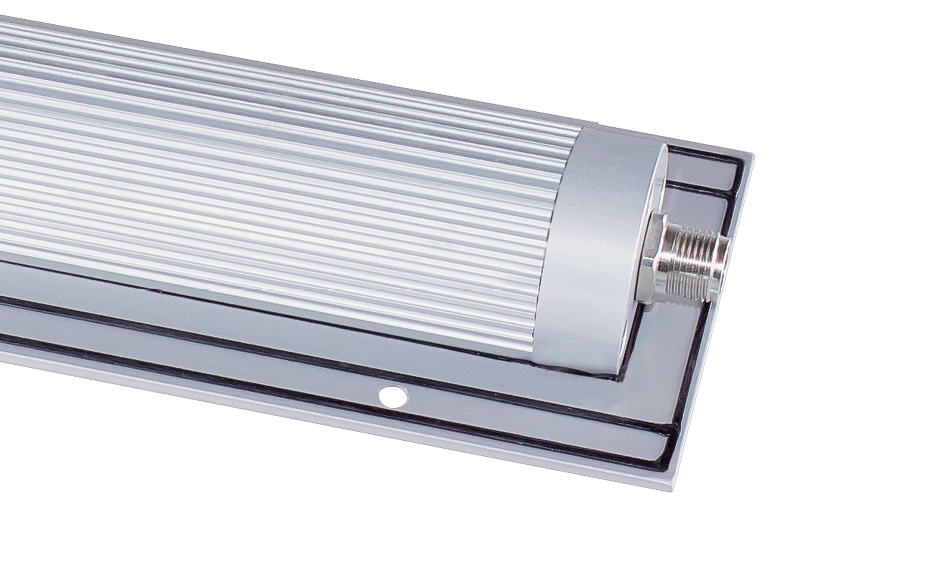

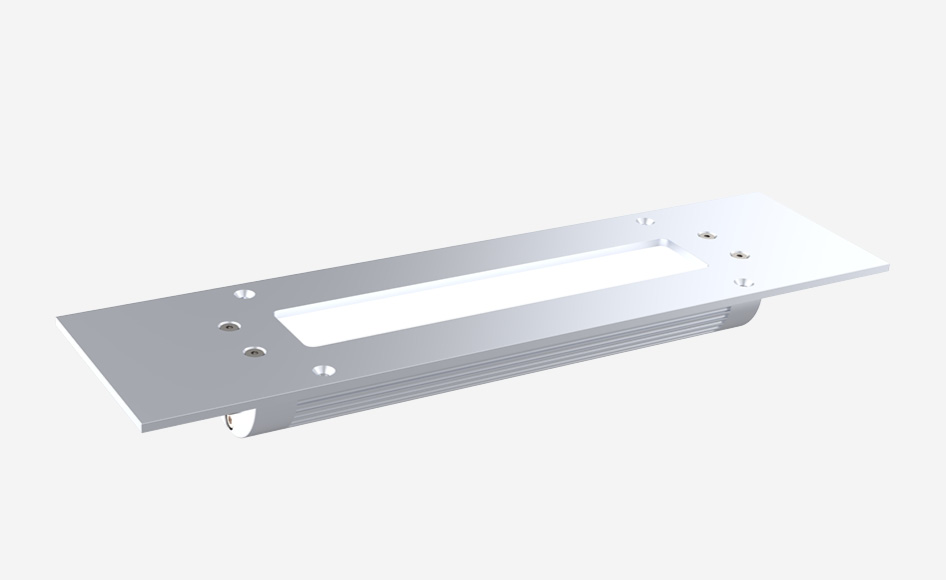

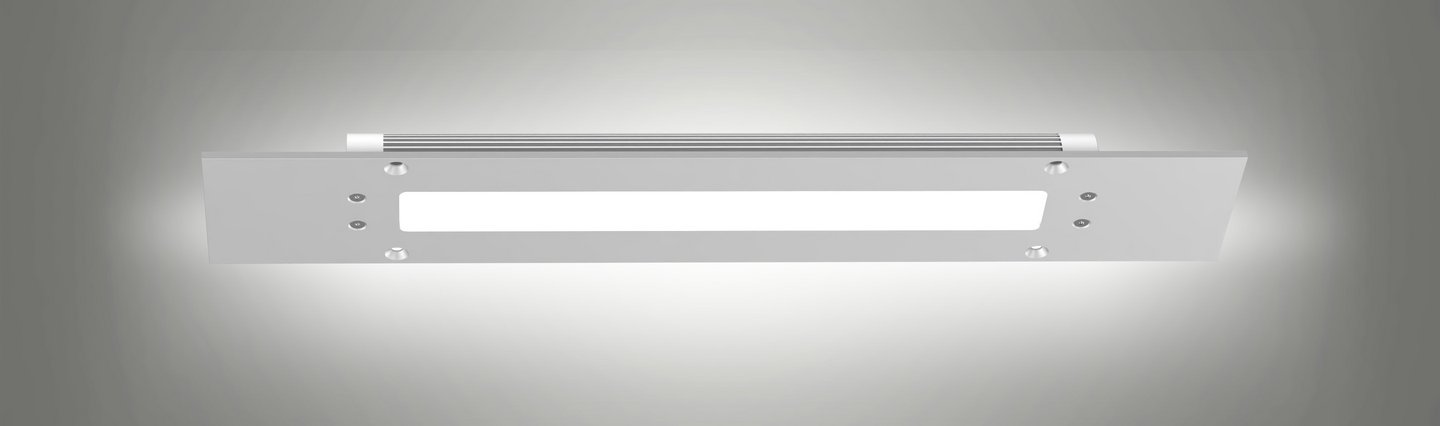

TUBELED_40 II Integrated
high-performance recessed light for machines and systems.
The TUBELED_40 II Integrated delivers powerful, uniform LED light directly to the working area – flush-mounted, compact, and exceptionally robust.

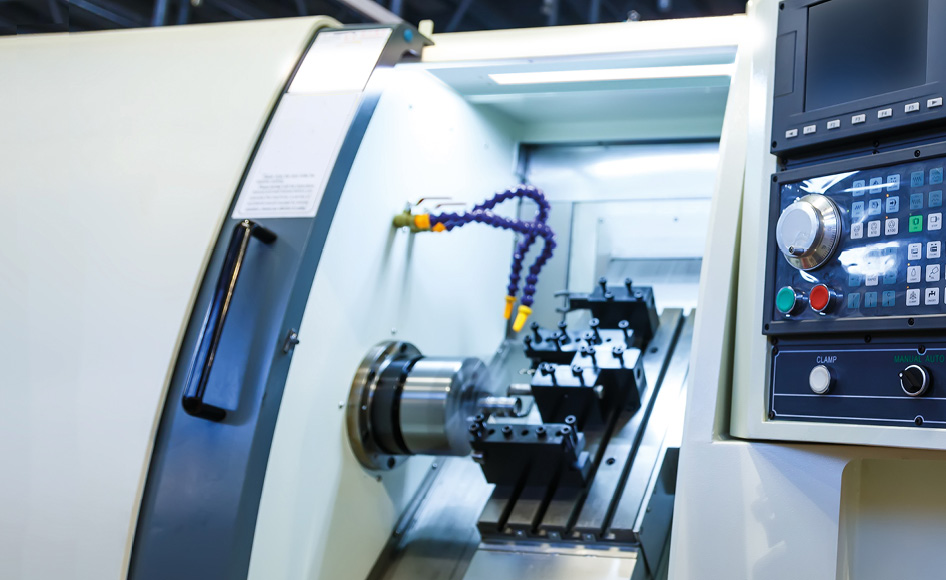

Based on the proven TUBELED_40 II technology, it easily withstands oil, chips, and high-pressure cleaning (IP69K certified), making it ideal for use in machine tools, production cells, and industrial systems.
With a wide 100° beam angle, it provides uniform, glare-free illumination without shadowing – perfect for OEM integration or retrofitting.
Your Benefits
- Bright, flicker-free illumination without harmful UV or IR radiation
- Ideal for standardized machine tool shafts – quick and precise installation
- Chip-impact resistant, vibration- and shock-proof – with optimized thermal stability for CNC environments
- Maximum protection: IP67/IP69K – dustproof and resistant to high-pressure water
- Certified to CE, UKCA, ETL, and D marking
- 100% Made in Germany – high manufacturing quality backed by a 5-year warranty
Application Areas
- Metalworking
- CNC / machine tools
- Plastic injection moulding machines
- Woodworking machines
- Packaging machines
Technology
- High-performance LED chips with daylight-white light (5700 K) – exceptionally bright and efficient
- Aluminum extruded housing for optimal heat dissipation – prevents coolant residue from burning in
- Oil-resistant seals ensure long-term tightness and durability
- Shatterproof 4 mm tempered safety glass with opal diffuser provides uniform, glare-free illumination
- Wide 100° beam angle and high color rendering deliver brilliant lighting quality
- ON/OFF interface allows load-free switching, flashing, blinking, and dimming
- 24 V DC connection via M12A connector
- Flexible mounting using separately available mounting components for variable installation options
| Article number | Power consumption | Lamp luminous flux | Data sheet | ||
|---|---|---|---|---|---|
| Recessed light TUBELED_40 II integrated, 8.66“ x 2.91“ x 0.12“ (220 x 74 x 3 mm) | 151010-01 | ~8.2 W | 1418 lm | Data sheet | |
| Recessed light TUBELED_40 II integrated Power, 11.18“ x 2.91“ x 0.12“ (284 x 74 x 3 mm) | 151010-03 | ~8.2 W | 1418 lm | Data sheet | |
| Recessed luminaire TUBELED_40 II Integrated, 15.55“ x 2.91“ x 0.12“ (395 x 74 x 3 mm) | 151110-01 | ~16.4 W | 2838 lm | Data sheet | |
| Recessed luminaire TUBELED_40 II Integrated, 15.55“ x 2.91“ x 0.12“ (395 x 74 x 3 mm) | 151110-03 | ~12.3 W | 2129 lm | Data sheet | |
| Recessed luminaire TUBELED_40 II Integrated, 22.44“ x 2.91“ x 0.12“ (570 x 74 x 3 mm) | 151210-01 | ~24.5 W | 4258 lm | Data sheet | |
| Recessed luminaire TUBELED_40 II Integrated, 29.33“ x 2.91“ x 0.12“ (745 x 74 x 3 mm) | 151310-01 | ~24.5 W | 4258 lm | Data sheet | |
| Recessed luminaire TUBELED_40 II integrated, 13.39“ x 3.07“ x 0.12“ (340 x 78 x 3 mm) | 152010-01 | ~12.3 W | 2129 lm | Data sheet | |
| Recessed luminaire TUBELED_40 II Integrated, 27.56“ x 3.07“ x 0.12“ (700 x 78 x 3 mm) | 152210-01 | ~24.5 W | 4258 lm | Data sheet |
