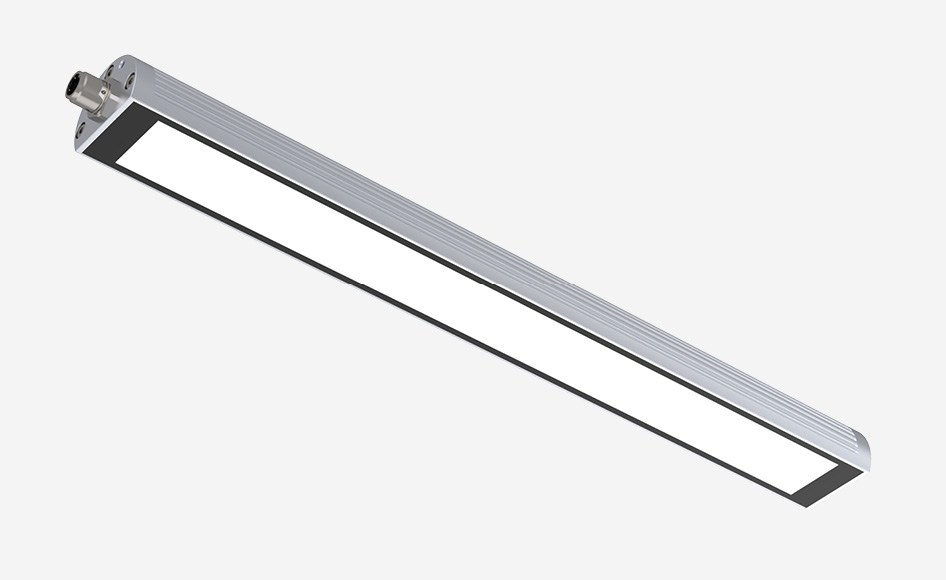

TUBELED_40 II

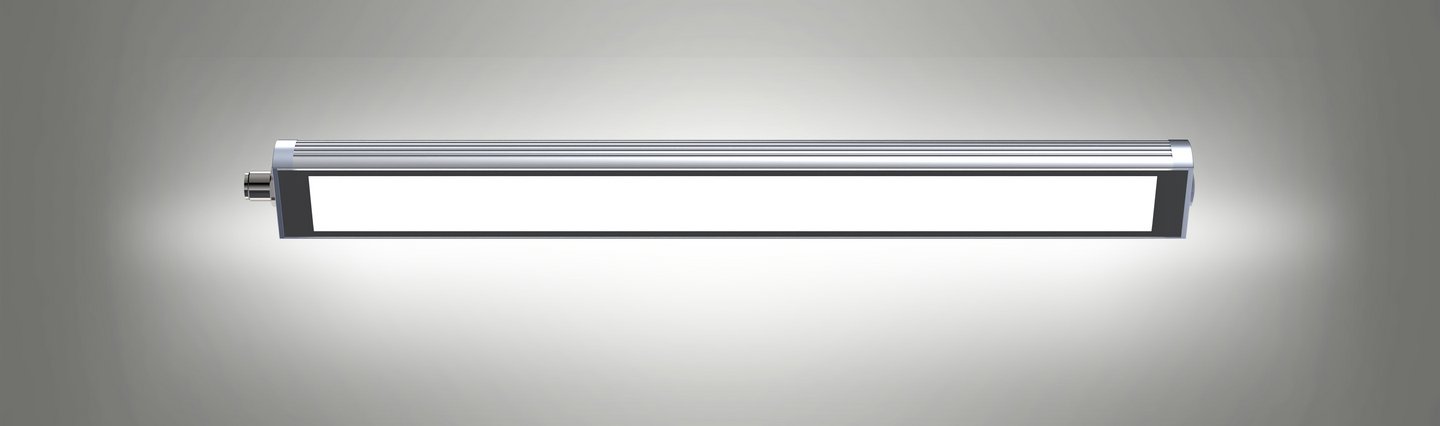

The TUBELED_40 II is the all-rounder in machine lighting.
It delivers reliable, long-lasting performance – even in machines exposed to oil, coolants, and flying chips. Its rugged design stands up to tough industrial environments without compromise.
Compact, durable, and maintenance-free, it provides consistent illumination even under extreme conditions.
With over 200,000 units sold, it's our top seller!
Your Benefits
- High-lumen, flicker-free illumination with no harmful UV or IR radiation
- Compact form factor for quick, hassle-free retrofitting of machinery
- Chip-resistant, vibration- and shock-proof design with optimized thermal stability for CNC environments
- Maximum protection: IP67/IP69K – dust-tight and protected against high-pressure water jets
- Variants: high-lumen Power version and energy-efficient ECO version
- ON/OFF interface: load-free switching, strobing, flashing, and dimming
- Certifications: CE, UKCA, ETL, D-marking
- 100% Made in Germany – premium manufacturing quality and 5-year warranty

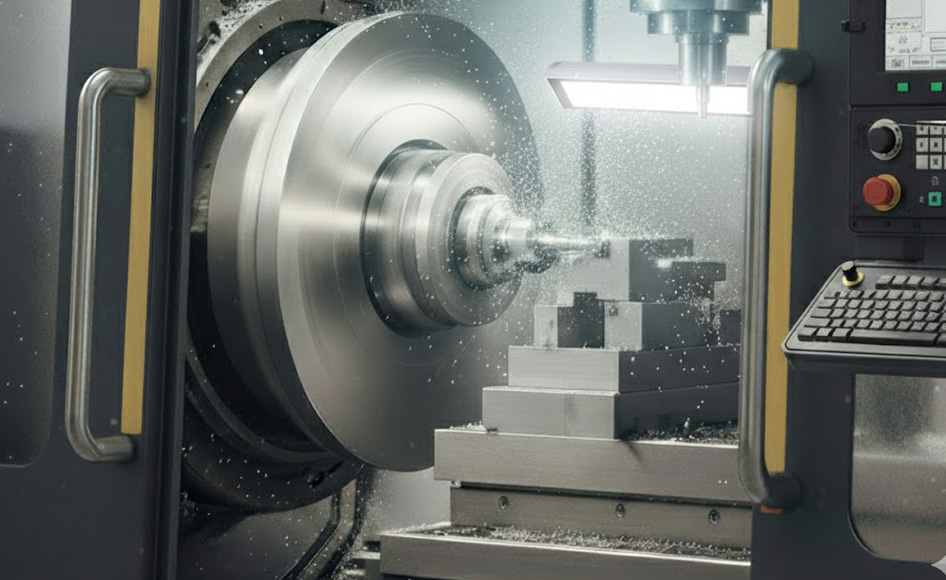

Application Areas
- Metalworking
- CNC and tool machines
- Micro-precision machinery
- EDM machines / punching presses
- Wood and plastic processing
- Packaging machinery
- Automation
Technology
- High-performance LED chips with daylight white light (5700 K) – extremely high luminous output and efficiency
- Extruded aluminum housing for optimal heat dissipation – no coolant burn-in
- Oil-resistant FKM seals (Viton®) for long-term sealing and durability
- Shatterproof toughened safety glass, 0.16 in thick, with opal anti-glare finish for uniform, glare-free illumination
- Wide 100° beam angle and high color rendering index for brilliant illumination
- 24 V DC connection with M12 daisy chaining – simple and secure connectivity
- Flexible mounting via separately available accessories for versatile installation options

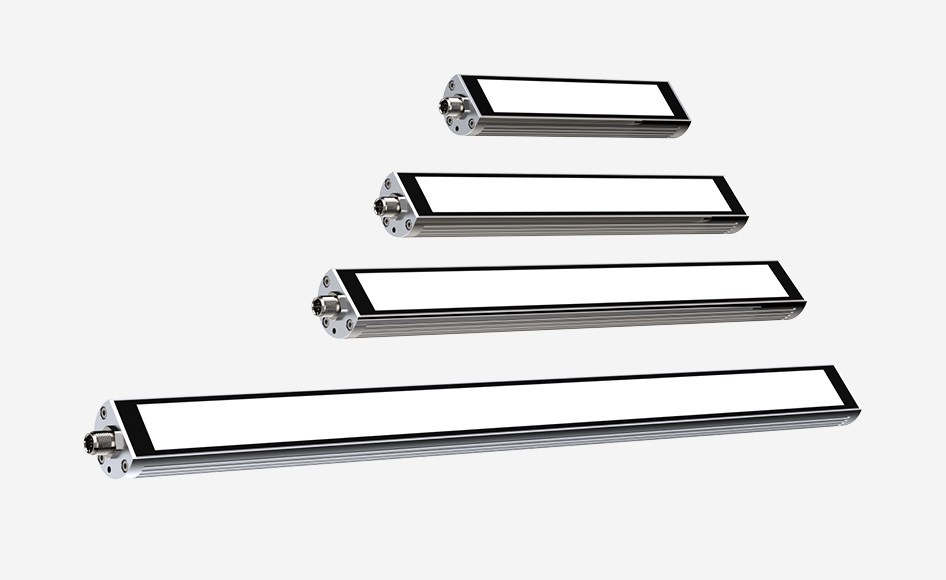

| Article number | Power consumption | Lamp luminous flux | Data sheet | ||
|---|---|---|---|---|---|
| TUBELED_40 II Power, 7.48 inches (190 mm) | 118010-01 | ~8.2 W | 1418 lm | Data sheet | |
| TUBELED_40 II Power, 11.02 inches (280 mm) | 118110-01 | ~12.3 W | 2129 lm | Data sheet | |
| TUBELED_40 II Power, 14.37 inches (365 mm) | 118210-01 | ~16.4 W | 2838 lm | Data sheet | |
| TUBELED_40 II Power, 21.26 inches (540 mm) | 118310-01 | ~24.5 W | 4258 lm | Data sheet | |
| TUBELED_40 II Power, 28.15 inches (715 mm) | 118410-01 | ~32.8 W | 5676 lm | Data sheet | |
| TUBELED_40 II Power, 40.94 inches (1040 mm) | 118510-01 | ~49 W | 8516 lm | Data sheet | |
| TUBELED_40 II Power, 60.63 inches (1540 mm) | 118610-01 | ~73.5 W | 12774 lm | Data sheet |
| Article number | Power consumption | Lamp luminous flux | Data sheet | ||
|---|---|---|---|---|---|
| TUBELED_40 II ECO, 7.48 inches (190 mm) | 118010-02 | ~4.3 W | 750 lm | Data sheet | |
| TUBELED_40 II ECO, 11 inches (279 mm) | 118110-02 | ~6.5 W | 1125 lm | Data sheet | |
| TUBELED_40 II ECO, 14.37 inches (365 mm) | 118210-02 | ~8.6 W | 1500 lm | Data sheet | |
| TUBELED_40 II ECO, 21.26 inches (540 mm) | 118310-02 | ~13 W | 2250 lm | Data sheet | |
| TUBELED_40 II ECO, 28.15 inches (715 mm) | 118410-02 | ~17.2 W | 3000 lm | Data sheet | |
| TUBELED_40 II ECO, 40.94 inches (1040 mm) | 118510-02 | ~26 W | 4500 lm | Data sheet | |
| TUBELED_40 II ECO, 60.63 inches (1540 mm) | 118610-02 | ~39 W | 6750 lm | Data sheet |
| Article number | Power consumption | Lamp luminous flux | Data sheet | ||
|---|---|---|---|---|---|
| TUBELED_40 II Power, 7.48 inches (190 mm), cascadable | 118010-11 | ~8.2 W | 1418 lm | Data sheet | |
| TUBELED_40 II Power, 11.02 inches (280 mm), cascadable | 118110-11 | ~12.3 W | 2129 lm | Data sheet | |
| TUBELED_40 II Power, 14.37 inches (365 mm), cascadable | 118210-11 | ~16.4 W | 2838 lm | Data sheet | |
| TUBELED_40 II Power, 21.26 inches (540 mm), cascadable | 118310-11 | ~24.5 W | 4258 lm | Data sheet | |
| TUBELED_40 II Power, 28.15 inches (715 mm), cascadable | 118410-11 | ~32.8 W | 5676 lm | Data sheet | |
| TUBELED_40 II Power, 40.94 inches (1040 mm), cascadable | 118510-11 | ~49 W | 8516 lm | Data sheet | |
| TUBELED_40 II Power, 60.63 inches (1540 mm), cascadable | 118610-11 | ~73.5 W | 12774 lm | Data sheet |
| Article number | Power consumption | Lamp luminous flux | Data sheet | ||
|---|---|---|---|---|---|
| TUBELED_40 II ECO, 7.48 inches (190 mm), cascadable | 118010-12 | ~4.3 W | 750 lm | Data sheet | |
| TUBELED_40 II ECO, 11.02 inches (280 mm), cascadable | 118110-12 | ~6.5 W | 1125 lm | Data sheet | |
| TUBELED_40 II ECO, 14.37 inches (365 mm), cascadable | 118210-12 | ~8.6 W | 1500 lm | Data sheet | |
| TUBELED_40 II ECO, 21.26 inches (540 mm), cascadable | 118310-12 | ~13 W | 2250 lm | Data sheet | |
| TUBELED_40 II ECO, 28.15 inches (715 mm), cascadable | 118410-12 | ~17.2 W | 3000 lm | Data sheet | |
| TUBELED_40 II ECO, 40.94 inches (1040 mm), cascadable | 118510-12 | ~26 W | 4500 lm | Data sheet | |
| TUBELED_40 II ECO, 60.63 inches (1540 mm), cascadable | 118610-12 | ~39 W | 6750 lm | Data sheet |
| Article number | Power consumption | Lamp luminous flux | Data sheet | ||
|---|---|---|---|---|---|
| TUBELED_40 II, 12.17" (309mm), Power, screw thread M40x1.5 | 118110-03 | ~12.3 W | 2129 lm | Data sheet | |
| TUBELED_40 II, 12.17" (309mm), Eco, screw thread M40x1.5 | 118110-04 | ~6.5 W | 1125 lm | Data sheet |
