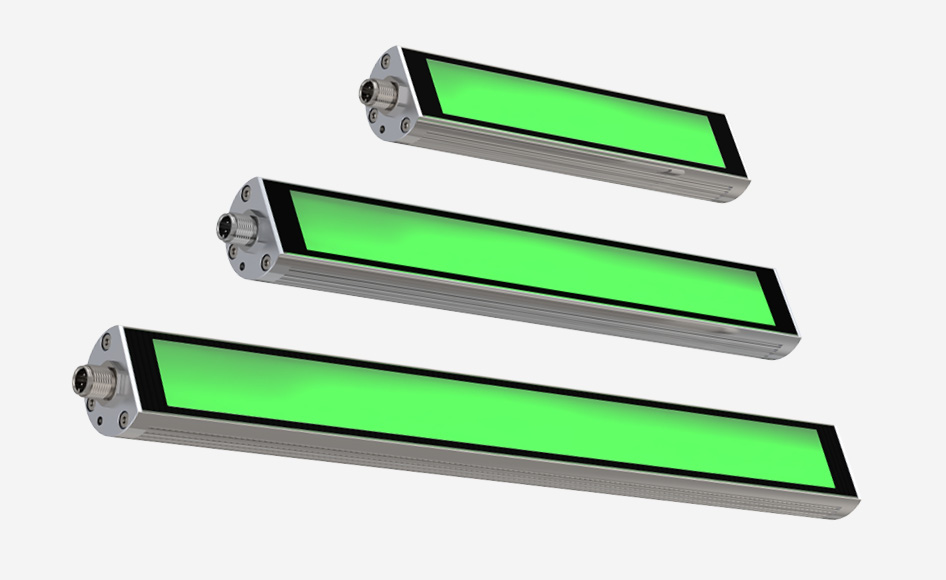

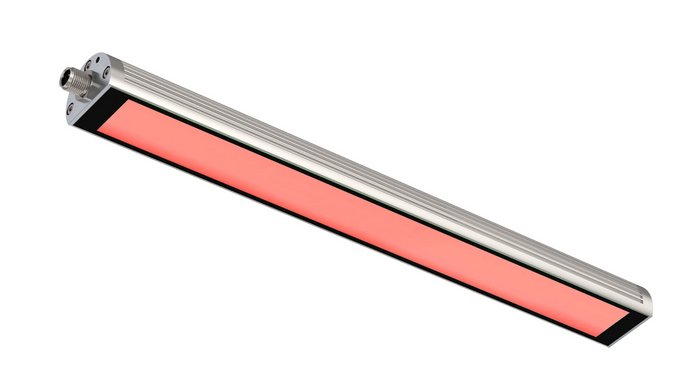

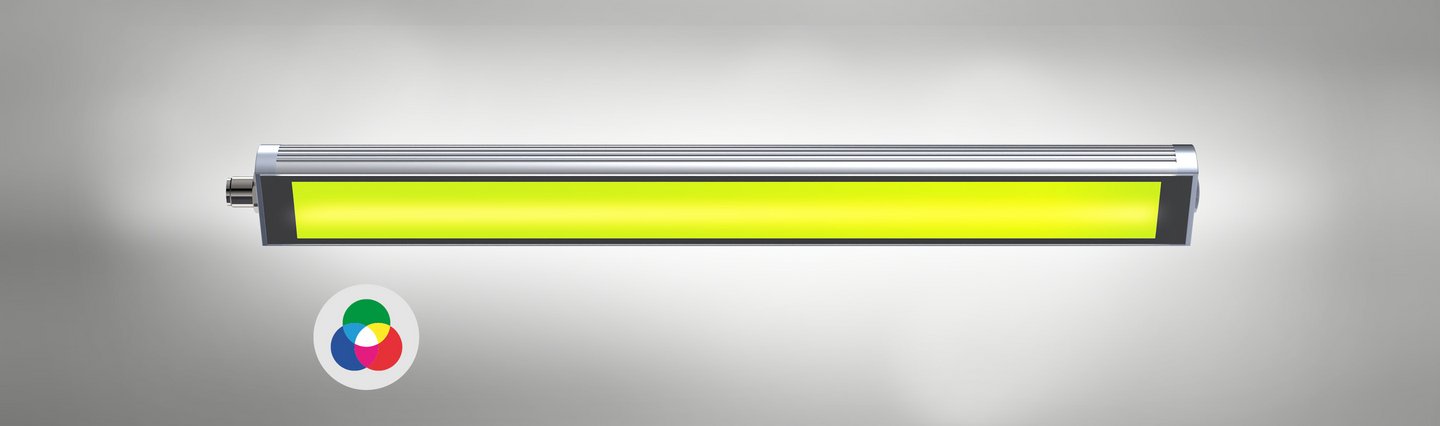

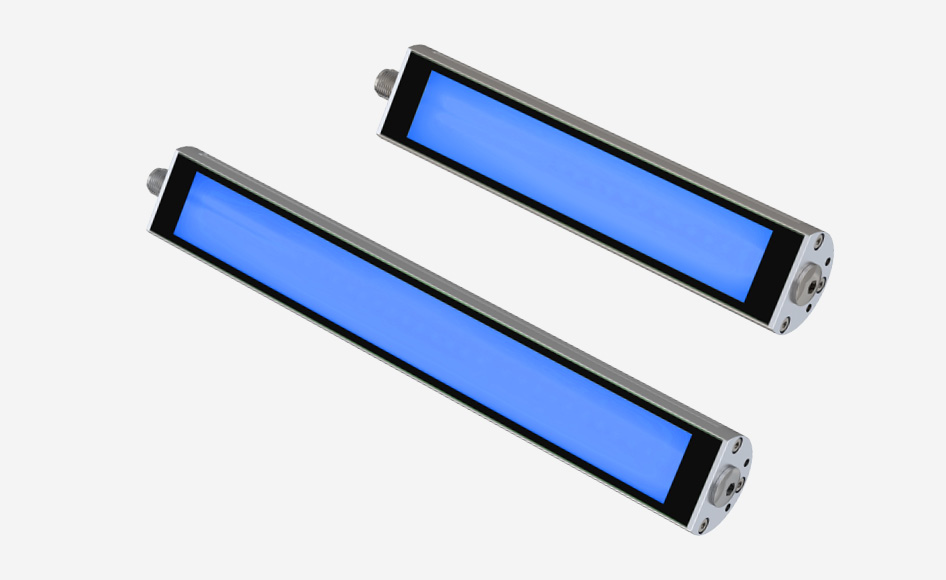

TUBELED_40 II RGB-W
The TUBELED_40 II RGB-W combines precise machine lighting with powerful RGB signaling
all in a compact, rugged housing that stands up to oil, chips, and vibration.
Its glare-free white light and configurable RGB colors deliver illumination and status indication right where they matter most.
Your Benefits
- LED signal light with flicker-free white light – freely configurable colors and flash modes
- Compact design for quick and easy machine retrofits
- Resistant to flying chips, vibration, and shock – thermally robust for demanding CNC environments
- Maximum protection: IP67/IP69K – dustproof and resistant to high-pressure water
- Certifications: CE, UKCA
- 100% Made in Germany – high manufacturing quality with a 5-year warranty
Application Areas
- Automation
- Metalworking
- CNC and tool machines
- Logistics automation
- Plastic injection molding machines
- Packaging machinery
Technology
- Combined RGB and white LEDs – PLC-controlled for color and status indication
- Extruded aluminum housing for optimal heat dissipation – prevents coolant residue buildup
- Oil-resistant FKM seals (Viton®) ensure long-lasting tightness and durability
- Shatter-resistant 4 mm toughened glass with opal diffuser for uniform, glare-free illumination
- Flexible mounting via separately available components allows for a variety of installation options
| Article number | Lamp luminous flux RED | Lamp luminous flux GREEN | Lamp luminous flux BLUE | White lamp luminous flux | Data sheet | ||
|---|---|---|---|---|---|---|---|
| TUBELED_40 II RGB-W Power, 11,02 inches (280 mm), 24V DC | 118190-01 | 240 lm | 345 lm | 150 lm | 1215 lm | Data sheet | |
| TUBELED_40 II RGB-W Power, 21,26 inches (540 mm), 24V DC | 118390-01 | 480 lm | 690 lm | 300 lm | 2430 lm | Data sheet | |
| TUBELED_40 II RGB-W Power, 40,94 inches (1040 mm), 24V DC | 118590-01 | 960 lm | 1380 lm | 600 lm | 4860 lm | Data sheet | |
| TUBELED_40 II RGB-W Power, 60,63 inches (1540 mm), 24V DC | 118690-01 | 1440 lm | 2070 lm | 900 lm | 7290 lm | Data sheet |
| Article number | Lamp luminous flux RED | Lamp luminous flux GREEN | Lamp luminous flux BLUE | White lamp luminous flux | Data sheet | ||
|---|---|---|---|---|---|---|---|
| TUBELED_40 II RGB-W ECO, 7,48 inches (190 mm), 24V DC | 118090-02 | 92 lm | 168 lm | 56 lm | ~4.8 W | Data sheet | |
| TUBELED_40 II RGB-W ECO, 11.02 inches (280 mm), 24V DC | 118190-02 | 138 lm | 252 lm | 84 lm | 1150 lm | Data sheet | |
| TUBELED_40 II RGB-W ECO, 14,37 inches (365 mm), 24V DC | 118290-02 | 184 lm | 336 lm | 112 lm | 1336 lm | Data sheet | |
| TUBELED_40 II RGB-W ECO, 21.26 inches (540 mm), 24V DC | 118390-02 | 276 lm | 504 lm | 168 lm | 2300 lm | Data sheet | |
| TUBELED_40 II RGB-W ECO, 28,15 inches (715 mm), 24V DC | 118490-02 | 368 lm | 672 lm | 224 lm | 2672 lm | Data sheet | |
| TUBELED_40 II RGB-W ECO, 40,94 inches (1040 mm), 24V DC | 118590-02 | 552 lm | 1008 lm | 336 lm | 4600 lm | Data sheet | |
| TUBELED_40 II RGB-W ECO, 60,63 inches (1540 mm), 24V DC | 118690-02 | 828 lm | 1512 lm | 504 lm | 6900 lm | Data sheet |
