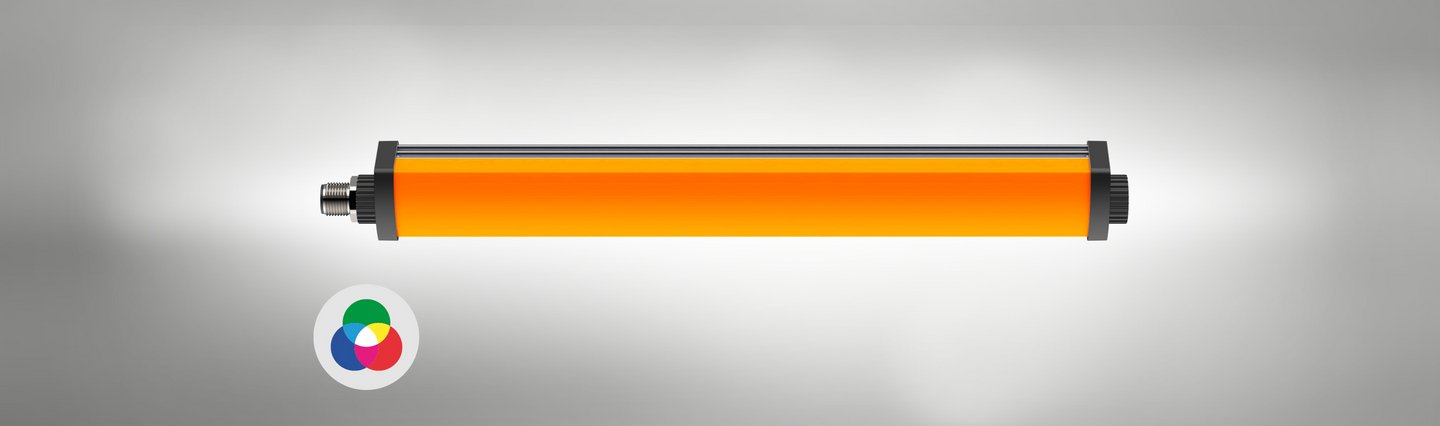

Opener SIGNALED II

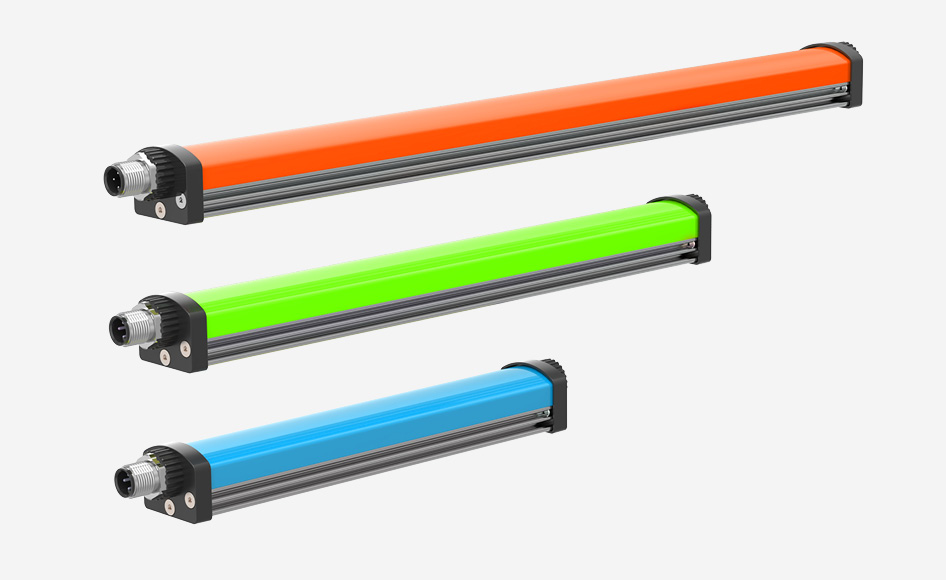

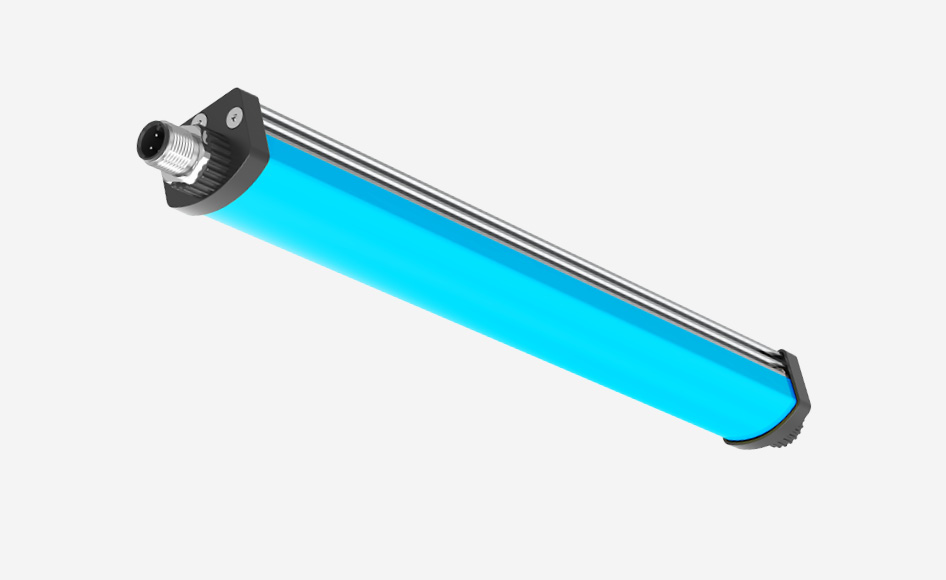

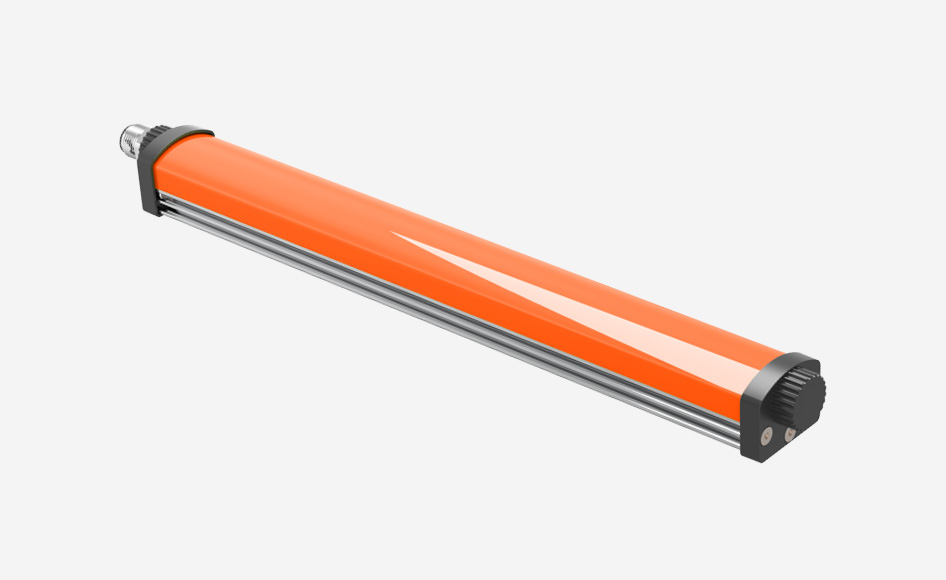

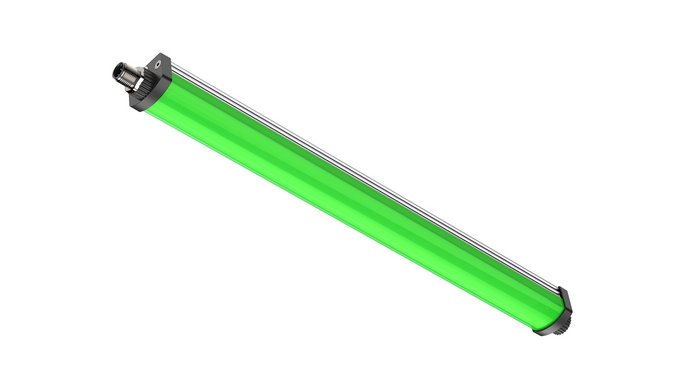

SIGNALED II RGB and RGB-W

Machine status at a glance – intense, clearly visible from all angles, and built for process reliability.

The optional white light eliminates the need for separate work lights.

This reduces response times, minimizes errors, and improves process efficiency – a powerful yet cost-effective solution for industrial applications.

24V DC
M12
IP54
100 000h
RGB
14 °F - 122 °F
ETL

Your Benefits

  • Signal light with flicker-free white light and fully configurable colors and flashing modes
  • LED signal light displays machine and system status clearly using user-defined RGB colors
  • Compact 25 mm design – space-saving signal light, ideal for tight installation spaces
  • Easy, flexible mounting with adjustable bracket included
  • Certified to CE, UKCA, and ETL – approved for international industrial use
  • 100% Made in Germany – high manufacturing quality with a 5-year warranty

Application Areas

  • Metal, wood, and plastics processing: signaling function
  • Logistics and warehouse operations: signaling
  • Cleanrooms: signaling
  • Facility management – e.g.
  • conveyor systems and industrial doors
  • Safety

Technology

  • Combined RGB and white LEDs – PLC-controlled for color and status indication
  • Red, green, blue – mixed colors via simultaneous activation of the control pins
  • RGB produces white as a mixed color, while RGB-W includes a dedicated white channel
  • LED light with 120° beam angle and natural light quality
  • Efficient heat dissipation through a rugged aluminum housing
  • Durable LED light with IP54 protection – dust- and splash-resistant
  • Shatter-resistant opal polycarbonate cover with M12, 5-pin, A-coded connector for easy integration

Connection

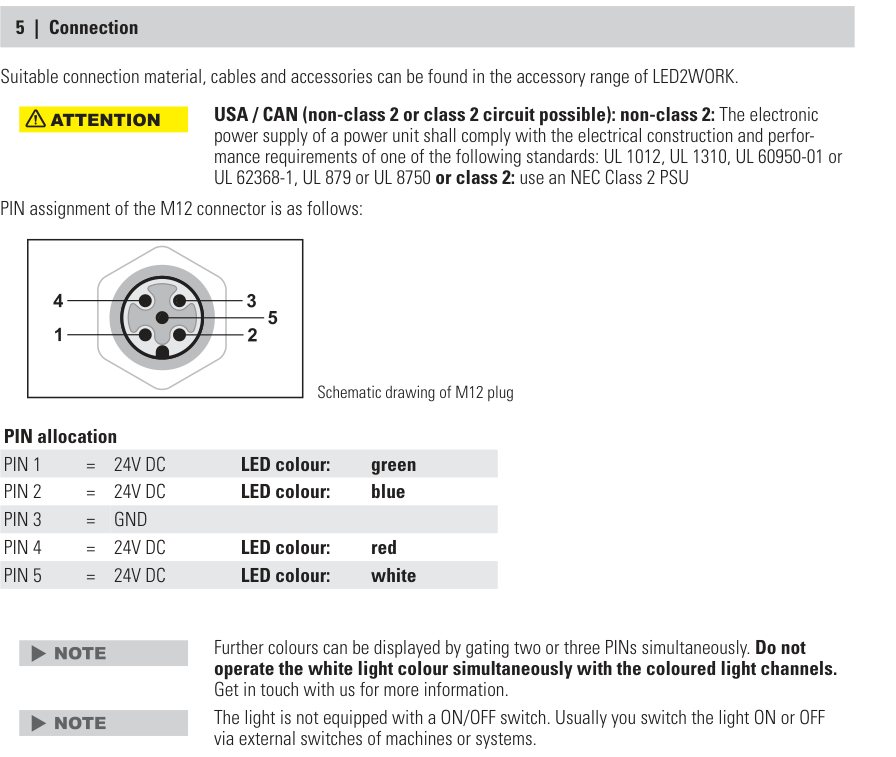

Connection - pin assignment

Service

Article number Lamp luminous flux RED Lamp luminous flux GREEN Lamp luminous flux BLUE Data sheet
SIGNALED II RGB, 7.09 inches (180 mm) 111090-11 60.67 lm 112 lm 36.67 lm Data sheet
SIGNALED II RGB, 10.24 inches (260 mm) 111090-12 91 lm 168 lm 55 lm Data sheet
SIGNALED II RGB, 13.78 inches (350 mm) 111090-13 121.34 lm 224 lm 73.34 lm Data sheet
SIGNALED II RGB, 20.47 inches (520 mm) 111090-14 182 lm 336 lm 110 lm Data sheet
SIGNALED II RGB, 29.92 inches (760 mm) 111090-15 273 lm 504 lm 165 lm Data sheet
SIGNALED II RGB, 40.16 inches (1020 mm) 111090-16 364 lm 672 lm 220 lm Data sheet
SIGNALED II RGB, 59.84 inches (1520 mm) 111090-17 546 lm 1008 lm 330 lm Data sheet
add to request cart Download CAD
Article number Lamp luminous flux RED Lamp luminous flux GREEN Lamp luminous flux BLUE White lamp luminous flux Data sheet
SIGNALED II RGB-W, ~7.09“ (180 mm) 111090-41 92 lm 168 lm 56 lm 766.67 lm Data sheet
SIGNALED II RGB-W, ~10.24“ (260 mm) 111090-42 138 lm 252 lm 84 lm 1150 lm Data sheet
SIGNALED II RGB-W, ~13.78“ (350 mm) 111090-43 184 lm 336 lm 112 lm 1530 lm Data sheet
SIGNALED II RGB-W, ~20.47“ (520 mm) 111090-44 276 lm 504 lm 168 lm 2300 lm Data sheet
SIGNALED II RGB-W, ~29.92“ (760 mm) 111090-45 414 lm 756 lm 252 lm 3450 lm Data sheet
SIGNALED II RGB-W, ~40.16“ (1020 mm) 111090-46 552 lm 1008 lm 336 lm 4600 lm Data sheet
SIGNALED II RGB-W, ~59.84“ (1520 mm) 111090-47 828 lm 1512 lm 504 lm 6900 lm Data sheet
add to request cart Download CAD

Product Accessories

Product Accessories

LEANLED / SIGNALED Luminaire support, spring clip (1 pair)
LEANLED / SIGNALED Luminaire support, spring clip (1 pair)
Item No.: 210200-07
LEANLED / SIGNALED Luminaire holder, spring clip with magnet (1 pair)
LEANLED / SIGNALED Luminaire holder, spring clip with magnet (1 pair)
Item No.: 210200-08
LEANLED II / SIGNALED II light holder
LEANLED II / SIGNALED II light holder
Item No.: 210200-34
LEANLED II / SIGNALED II light holder High
LEANLED II / SIGNALED II light holder High
Item No.: 210200-41
LEANLED II/SIGNALED II luminaire holders (2 pairs)
LEANLED II/SIGNALED II luminaire holders (2 pairs)
Item No.: 210200-18
Adapter for luminaire holder LEANLED II/ SIGNALED II, 1 pair
Adapter for luminaire holder LEANLED II/ SIGNALED II, 1 pair
Item No.: 210200-19
