LED lightbulb
INROLED_70
Interconnectable, versatile, cost-optimized
Equipped with a protective tube made of borosilicate glass (safety glass) or made of polycarbonate, the LED fixture INROLED_70 can be used in many ways. The diameter of 2.76 inches gives the fixture a high light output. This means that it can be used in buildings or building technology in addition to traditional areas of application such as machinery and equipment. Due to its electrical interconnectivity, uniform and efficient illumination of large areas is possible.
YOUR BENEFITS
- High light output; flicker-free light without UV and IR components; wide spread and homogeneous light
- Perfect glare control and light diffusion thanks to the microprismatic cover.
- Options: A 0.16 inch borosilicate glass protects the electronics from water, dust, and moisture, or a protection tube made of polycarbonate.
- Variant borosilicate glass: provides the best glare control and light scattering thanks to its microprismatic cover.
- High level of protection (IP67/IP69K)
- Easy conversion and retrofitting
- Lights can be connected together using electricity.
- For use in any situation
AREAS OF APPLICATION
- Machines and technical systems
- Domestic engineering
- Underground garages
- Architecture
THE TECHNOLOGY
- High-performance LED chips for daylight white 5200-5700K
- The universal beam angle is 125 degrees and the color rendition is Ra >85.
- Place the microprism cover directly over the LED chips.
- Housing: Protective tube made of borosilicate glass, 0.16 inches thick or polycarbonate protective tube.
- Hardly any heating up, residual heat dissipation through ribbed internal aluminium base body
- Luminous flux 230V variant, depending on version, from 810 lm to 2440 lm
- Connection voltage, depending on variant, 24V DC or 220-240V AC

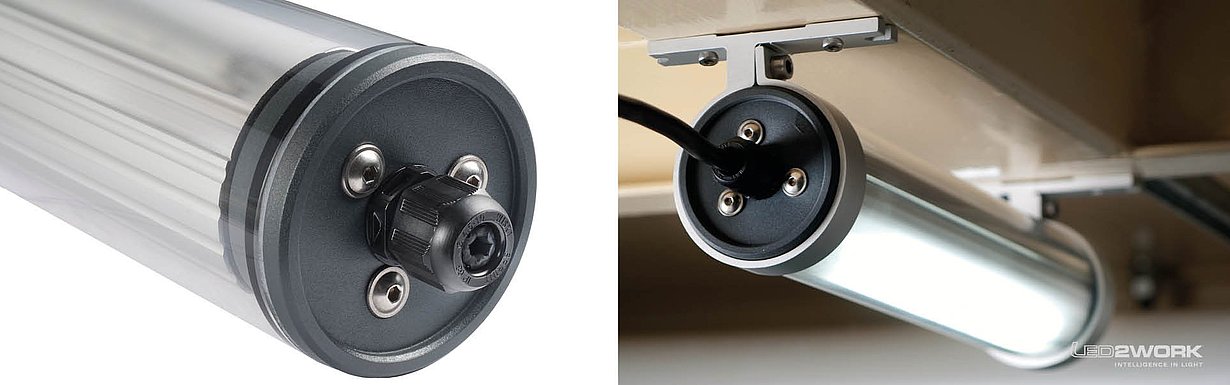

- Cable entry via cable gland (Wago terminal inside)
- INROLED_70 PC is shock resistance IK08
- Mounting using standard 2.75-inch fastenings or optional mounting accessories
- CE-compliant and ETL-listed test seal, the latter for the 24V variant
- Made in Germany
DESIGNS

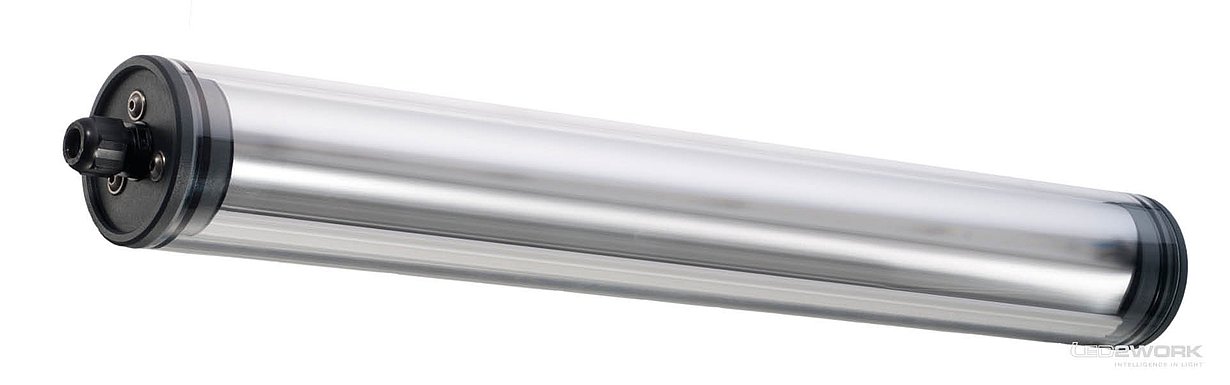

- Tube light fixture geometry 2.75 inches in diameter
- Protective tube made of 0.16 inch safety glass (borosilicate glass) or opal white polycarbonate
- 5 lengths: 13.94 inches, 20.2 inches, 25.59 inches, 36.26 inches, 47.8 inches
- Connection options: INROLED_70 DC with 24 volts DC and INROLED_70 AC with 90-305 volts AC wide range connection.
INROLED_70 with Borosilicate Glass Protective Tube
| Article number | Power consumption | Lamp luminous flux | Data sheet | ||
|---|---|---|---|---|---|
| INROLED_70 DC ECO, borosilicate glass, 13,94 inches, 24V DC | 115010-01 | ~6,5 W | 1000 lm | Data sheet | |
| INROLED_70 DC ECO, borosilicate glass, 20,20 inches, 24V DC | 115110-01 | ~11 W | 1670 lm | Data sheet | |
| INROLED_70 ECO AC, 513 mm, 90-305V AC, 125°, borosilicate protective tube | 115110-02 | ~11 W | 1575 lm | Data sheet | |
| INROLED_70 DC ECO, borosilicate glass, 25,59 inches, 24V DC | 115210-01 | ~13 W | 2004 lm | Data sheet | |
| INROLED_70 ECO AC, 650 mm, 90-305V AC, 125°, borosilicate protective tube | 115210-02 | ~13 W | 1890 lm | Data sheet | |
| INROLED_70 DC ECO, borosilicate glass, 36,26 inches, 24V DC | 115310-01 | ~21 W | 3340 lm | Data sheet | |
| INROLED_70 ECO AC, 921 mm, 90-305V AC, 125°, borosilicate protective tube | 115310-02 | ~21 W | 3150 lm | Data sheet | |
| INROLED_70 DC ECO, borosilicate glass, 47,80 inches, 24V DC | 115410-01 | ~28 W | 4342 lm | Data sheet |
