Item No.: 210200-31

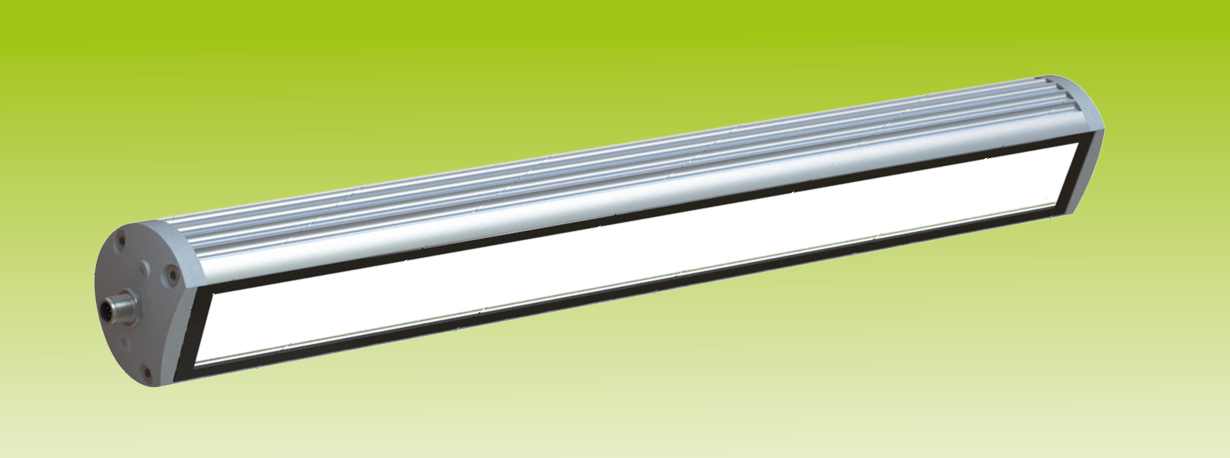

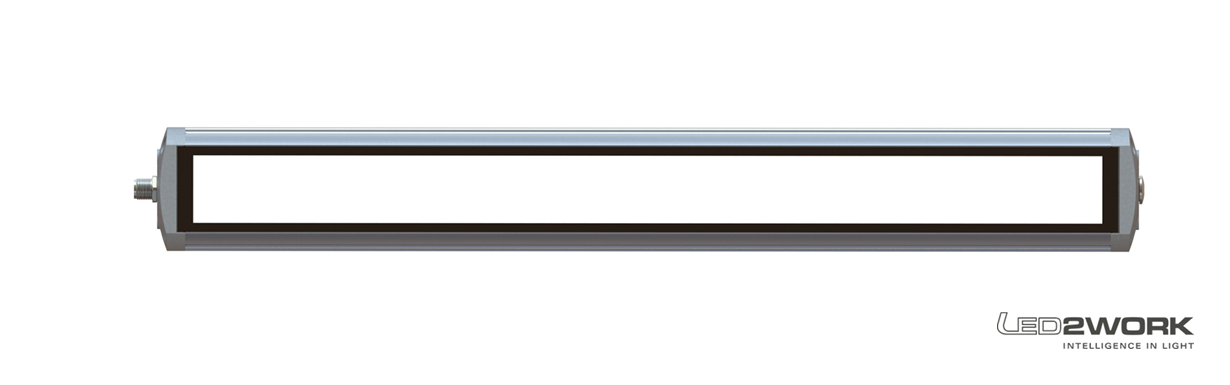

LED Machine Light
TUBELED_70 EVO
Temperature Resistant, Robust, Versatile
The TUBELED_70 EVO, enhanced with state-of-the-art LED technology, follows in the footsteps of the proven TUBELED_70 - the first LED machine light developed to quickly and easily replace older Ø 2.76 in tube lights with fluorescent technology in established machine tools. Available in various lengths and two connection variants, the TUBELED_70 EVO is suitable for both retrofitting and new installations. Thanks to its excellent thermal management, the LED light is also designed for use in higher temperature ranges.
Your Advantages
- Flicker-free light without UV and IR components
- 100° optics for powerful, wide-area illumination – custom optics available upon request
- Quick installation and easy retrofit or upgrade
Applications
- Metalworking
- Machine tools
- CNC machines
- Industrial applications
- Plastics processing
- Outdoor applications
The Technology
- Latest advancements in LED technology

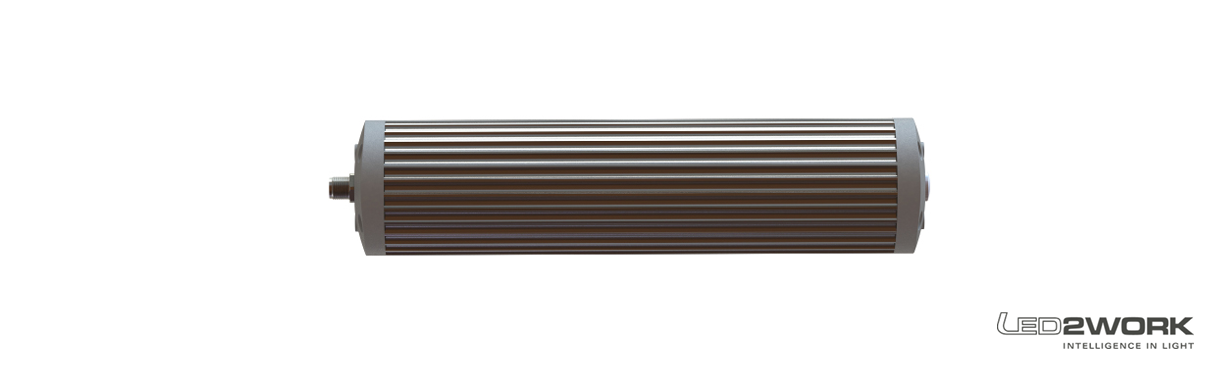

- Heat dissipation via extruded aluminum profile
- Shatterproof, 0.16 in thick single-pane safety glass
- Oil-resistant seals (FKM seal Viton®)
- Installed directly in the working area of machines or machining centers: impact-resistant, vibration- and shock-proof – fully CNC compatible
- Maintenance-free, 36 months warranty
- Manufactured in Germany
Variants
- 6 lengths: 11.81 in, 20.08 in, 22.05 in, 31.10 in, 43.31 in, 62.20 in
- Available with 24V DC or 120-277V AC wide range connection
TUBELED_70 EVO
TUBELED_70 EVO DC
| Article number | Power consumption | Lamp luminous flux | Data sheet | ||
|---|---|---|---|---|---|
| TUBELED_70 EVO, 100°, ~11,81“, 24V DC | 156010-01 | 12 W | 1899 lm | Data sheet | |
| TUBELED_70 EVO, 100°, ~20,08“, 24V DC | 156110-01 | 21 W | 3164 lm | Data sheet | |
| TUBELED_70 EVO, 100°, ~22,05“, 24V DC | 156210-01 | 24 W | 3798 lm | Data sheet | |
| TUBELED_70 EVO, 100°, ~31,1“, 24V DC | 156310-01 | 37 W | 5697 lm | Data sheet | |
| TUBELED_70 EVO, 100°, ~43,31“, 24V DC | 156410-01 | 48 W | 7596 lm | Data sheet | |
| TUBELED_70 EVO, 100°, ~62,2“, 24V DC | 156510-01 | 74 W | 11394 lm | Data sheet |
TUBELED_70 EVO AC
| Article number | Power consumption | Lamp luminous flux | Data sheet | ||
|---|---|---|---|---|---|
| TUBELED_70 EVO, 100°, ~11,81“, 120-277V AC | 156010-11 | 12 W | 1899 lm | Data sheet | |
| TUBELED_70 EVO, 100°, ~20,08“, 120-277V AC | 156110-11 | 21 W | 3164 lm | Data sheet | |
| TUBELED_70 EVO, 100°, ~22,05“, 120-277V AC | 156210-11 | 25 W | 3798 lm | Data sheet | |
| TUBELED_70 EVO, 100°, ~31,1“, 120-277V AC | 156310-11 | 37 W | 5697 lm | Data sheet | |
| TUBELED_70 EVO, 100°, ~43,31“, 120-277V AC | 156410-11 | 49 W | 7596 lm | Data sheet | |
| TUBELED_70 EVO, 100°, ~62,2“, 120-277V AC | 156510-11 | 74 W | 11394 lm | Data sheet |
Product Accessories
TUBELED_70 EVO Leuchtenhalter, 1 Paar
TUBELED_70 / INROLED_70 Leuchtenhalter ± 180° (1 Paar)
Item No.: 210200-02
Power supplies and connection materials, see LED Product Accessories
