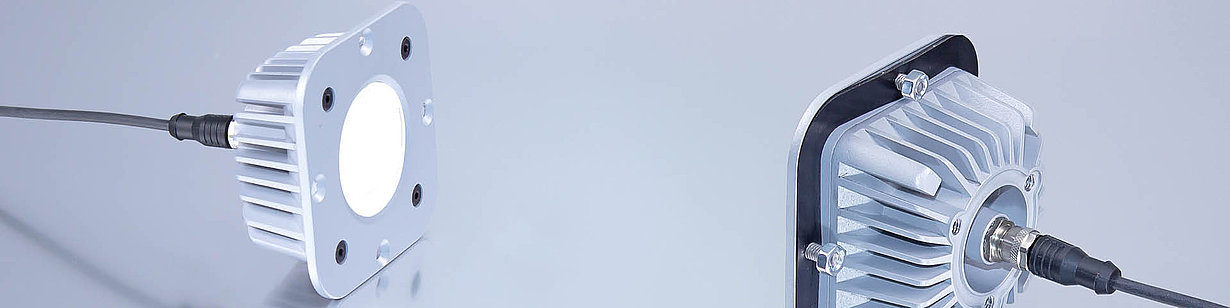

LED recessed luminaire for machines
CENALED SPOT Recessed
Robust, bright, and unobtrusive

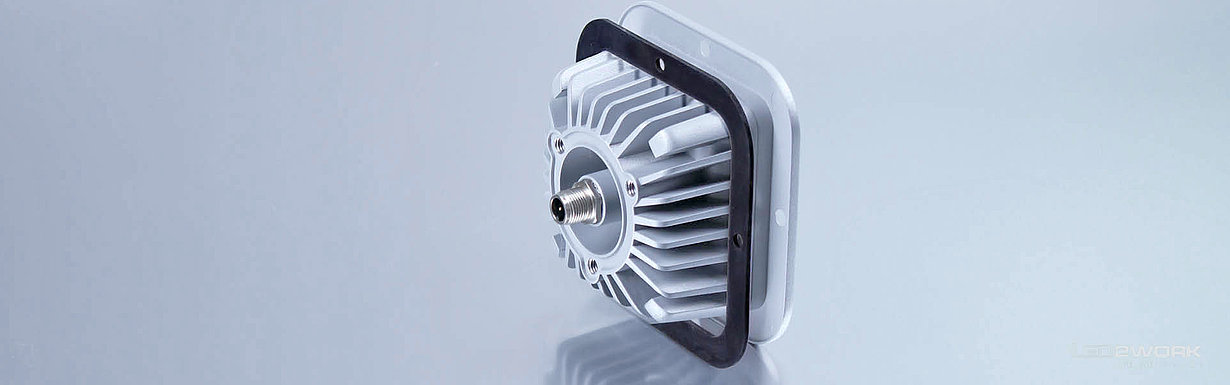

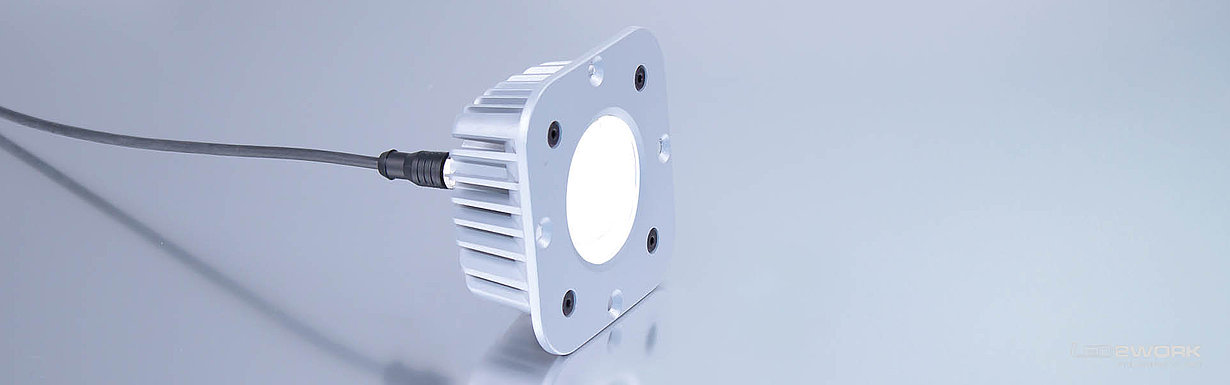

CENALED SPOT Recessed is a rather inconspicuous LED recessed luminaire designed to illuminate work areas. When installed into the recess of a machine tool, the luminaire protrudes only slightly and is therefore ideal for small processing areas. The robust aluminum housing with mounting frame and safety glass protects the luminaire from external influences such as chip bombardment or coolants. A high-quality FKM seal, included in the package, provides a seamless seal on the mounting surface.
Thanks to the latest LED technology, CENALED SPOT Recessed offers excellent illumination. Depending on the variant and the installed optics, the luminaire can be used for spot lighting or wide-area lighting.
With its high degree of protection, the CENALED SPOT Series is well shielded against dust and moisture, making it suitable for use even in demanding work environments.
Your advantages
- Compact, robust recessed luminaire with the latest LED technology
- Bright illumination in neutral white with high detail clarity

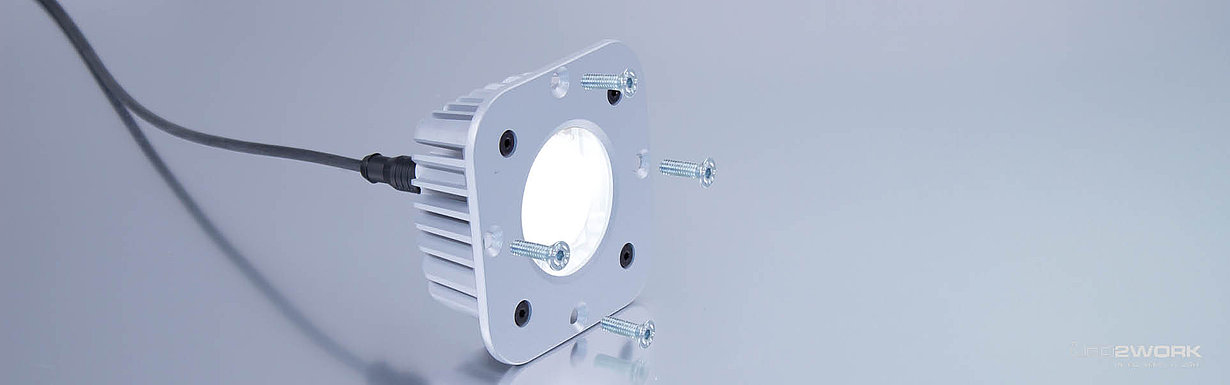

- Mounting frame sealed toward the recessed surface
- High degree of protection – dustproof and splashproof
- Available in 15°, 30°, or 65° optics
Areas of application
- Machine tools or machine workstations
- Systems and production areas with limited space
- Camera applications for industrial image processing
The technology
- High-performance LED chips for neutral white
- High color rendering
- Three variants with different beam angles
- Impact-resistant single-pane safety glass over the light outlet
- Minimal heat development due to smart thermal management

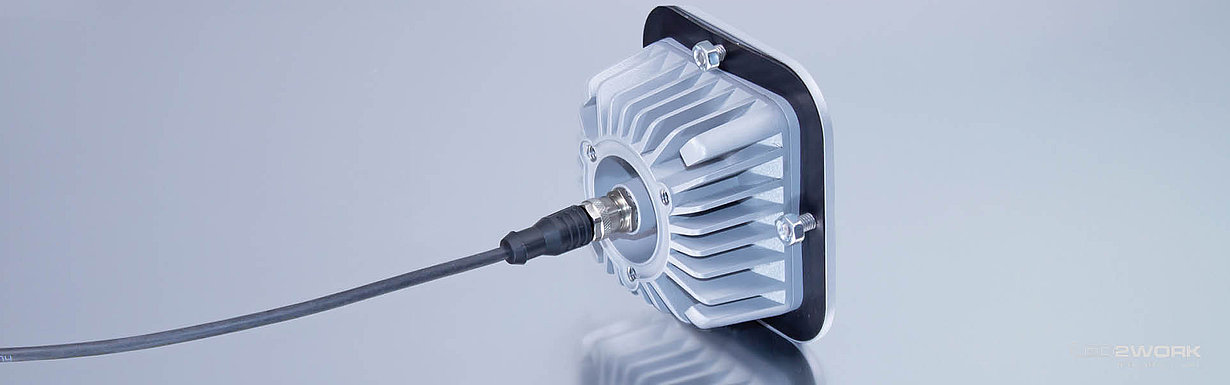

- High protection rating and 24V DC power via M12 A-coded connector
- Manufactured in Germany
Versions
- 3 variants: 15°, 30°, or 65° optics
- All variants include: LED luminaire and seal for the mounting frame
CENALED SPOT Flush-mounted
| Article number | Power consumption | Lamp luminous flux | Data sheet | ||
|---|---|---|---|---|---|
| Machine light CENALED SPOT Einbau DC (recessed light), optics 15° | 121011-05 | ~8,5 W | 1120 lm | Data sheet | |
| Machine light CENALED SPOT Einbau DC (recessed light), optics 30° | 121012-05 | ~8,5 W | 1120 lm | Data sheet | |
| Machine light CENALED SPOT Einbau DC (recessed light), optics 65° | 121013-05 | ~8,5 W | 1120 lm | Data sheet |
