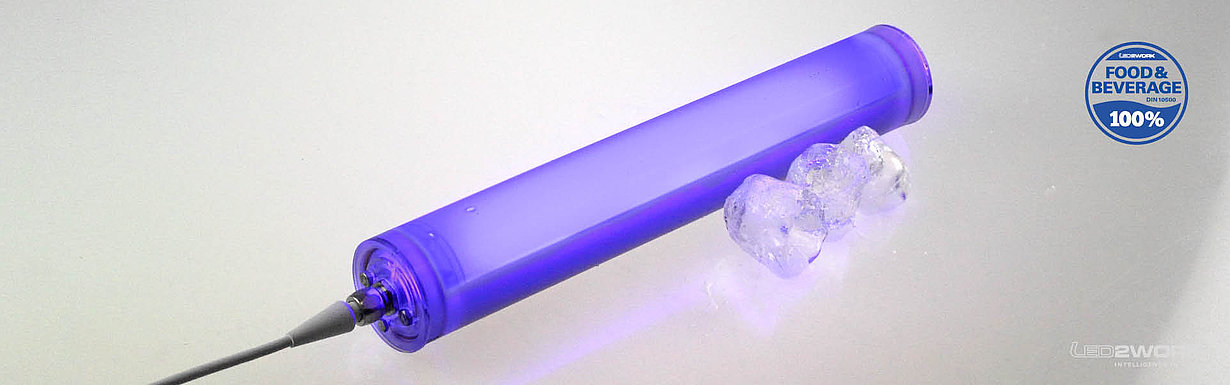

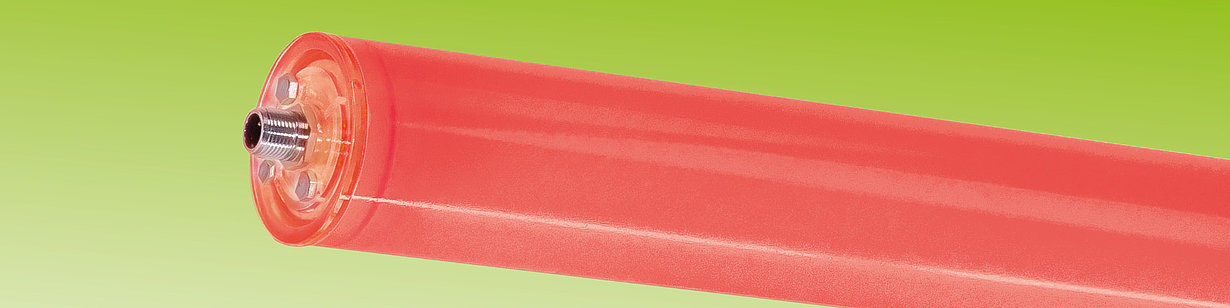

LED Signal light
INROLED_50 RGB-W
1.97 inches diameter, break-proof, free of interfering edges
INROLED_50 RGB-W is a tube luminaire for industrial applications par excellence: intense, homogeneous illumination, high level of protection and a signal function via colour change – all in one LED luminaire. Crystal-clear, break-proof polycarbonate housing completely shields the luminaire body from the outside and makes the INROLED_50 RGB-W ideal for illuminating hygiene-sensitive areas, such as those found in the food processing, pharmaceutical and packaging industries as well as logistics applications.
YOUR BENEFITS
- Lighting and signalling via RGB colour change in an LED luminaire
- Flicker-free, intense and homogeneous illumination with white light without UV and IR components
- Signal function via RGB colours - the polycarbonate housing is then completely illuminated
- Completely encased into a protective tube with Ecolab coating that keeps dirt out
- No interference or dirt edges on the housing
- Resistant to hydrogen peroxide (H₂O₂, max 35%), acids and alkalis (individual testing)
- Easy installation and replacement
AREAS OF APPLICATION
- Food & Beverage
- Packaging industry machinery
- Pharmaceutical industry
- Logistics workstations
- Assembly lines
THE TECHNOLOGY
- White light and RGB LED cluster
- Beam angle 100° and colour rendering Ra>80 under lighting by daylight white 5200-5700K
- RGB LED chips can indicate diverse statuses of the processing stations by changing colours
- Control of the LED chips by PLC of a machine or processing system
- Opal white and Ecolab coated protective tube made of polycarbonate - fully illuminated
- Light Reflection Technology
- Use in ambient temperatures from -30°C to +55°C C (for color mixing max. +35°C)
- Tube luminaire geometry Ø 1.97 inches
- Impact resistance IK09
- Heat dissipation through an internal aluminium profile to the rear
- 3 lengths: 12.01 inches, 22.24 inches, 41.93 inches
- Protection class IP67/IP69K and above-average service life

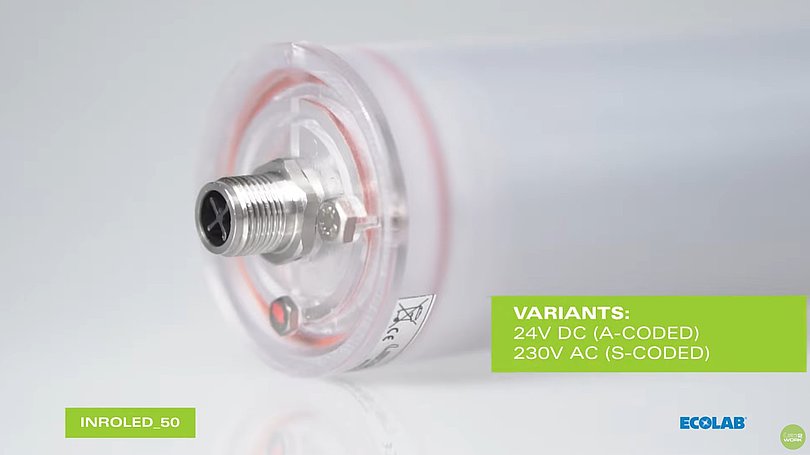

- Supply voltage 24V DC via cast-in M12 connector made of stainless steel (F&B suitable)

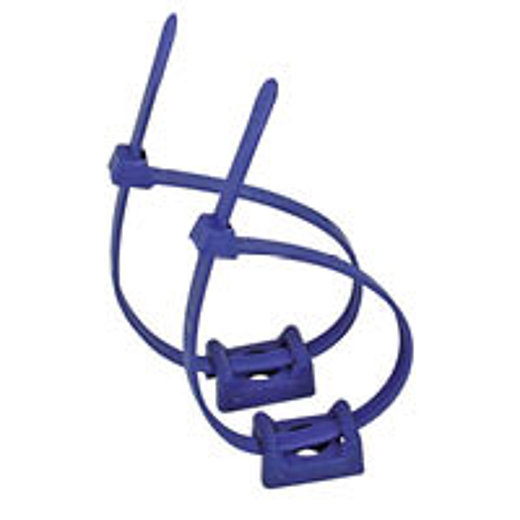

- Mounting by means of the supplied luminaire holder made of metal-detectable PP or by using optional brackets
- CE and ETL listed seal of approval
- Maintenance-free, 36-month warranty
- Manufactured in Germany
INROLED_50 Ecolab and INROLED_50 Ecolab RGB-W:
Industrial tubular luminaire with dirt-repellent coating and high protection class.
The LED tube light is dirt-repellent and therefore easy to clean. The LED technology is protected by a white frosted protective tube with sealed end caps. The luminaire itself therefore has a high protection rating of IP67/IP69K and a tested impact resistance of IK09.
Source: YouTube Channel LED2WORK GmbH
Hinweis: Mit dem Laden des Videos akzeptieren Sie die Datenschutzerklärung von YouTube. Mehr Erfahren
INROLED_50 Ecolab RGB-W
| Article number | Lamp luminous flux RED | Lamp luminous flux GREEN | Lamp luminous flux BLUE | White lamp luminous flux | Data sheet | ||
|---|---|---|---|---|---|---|---|
| INROLED_50 Ecolab RGB-W, 12,01 inches, 24V DC | 110090-01 | 240 lm | 355 lm | 150 lm | 1215 lm | Data sheet | |
| INROLED_50 Ecolab RGB-W, 22.24 inches | 110190-01 | 480 lm | 710 lm | 300 lm | 2430 lm | Data sheet | |
| INROLED_50 Ecolab RGB-W, 41,93 inches, 24V DC | 110290-01 | 960 lm | 1420 lm | 600 lm | 4860 lm | Data sheet |
