Item No.: 210200-20
LED machine light
FIELDLED EVO Surface-Mounted
Powerful light in tough environments

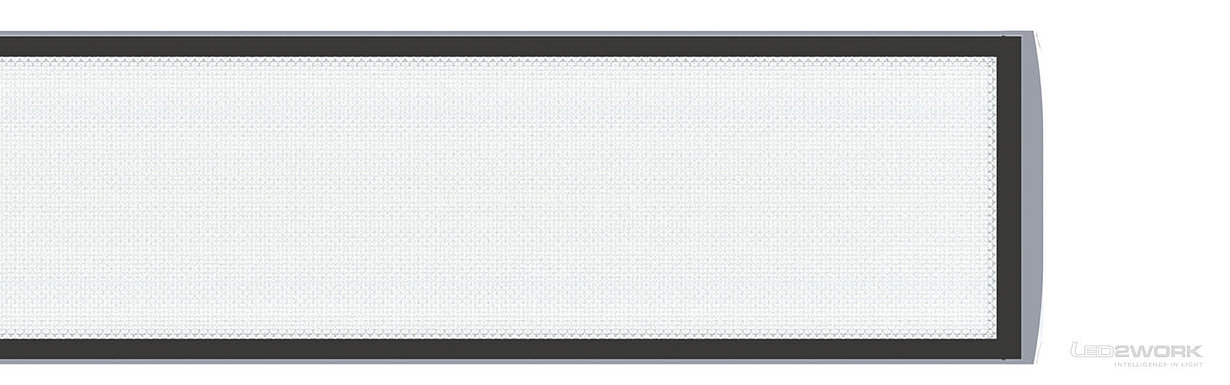

The surface-mounted version of the powerful FIELDLED EVO LED machine light is perfect for rugged production environments. Microprismatic glare control under the toughened safety glass (TSG) achieves very high light diffusion with minimal reflection. The sturdy aluminum housing is completely sealed and, along with the safety glass, ensures a high protection rating of IP67 / IP69K. Depending on the model, the connection is located on the front or the back of the light. Screw channels are also provided on the back for mounting the machine light.
Your Advantages
- Bright and homogeneous illumination, flicker-free without UV and IR components
- Light emission across the entire width of the lamp
- Extremely resistant to numerous types of oils and cooling lubricants, and can withstand flying chips.
- Single-pane tempered glass (TSG) with microprismatic anti-glare coating underneath
- Light output that lasts a long time, since there's no oil or coolant that can burn onto the glass.
- Version with front-side and version with rear-side connection via M12 A-coded

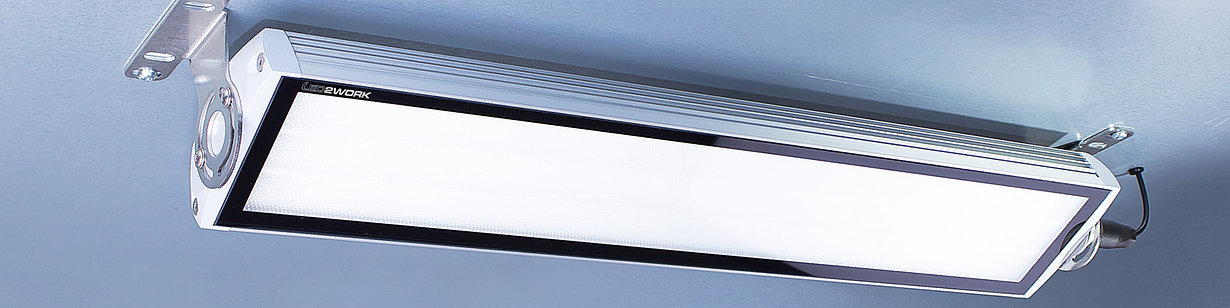

- Mounting using screw channels on the back or with optional luminaire brackets.
Areas of application
- Large-volume machines and installations
- CNC machines and machine tools
- Milling machines
- Surface grinding machines
Technology
- Top-notch LED chips for bright white (5200-5700 K) - the gold standard in the industry
- Beam angle of 100 degrees and color reproduction of Ra greater than 85.
- Densely packed LED array on the inside – extremely powerful
- Thick tempered safety glass with microprismatic glare control underneath and light forming technology
- Extreme IP67/IP69K protection and long LED life
- Power supply voltage is 24 volts DC; it can be connected using an M12 plug connector on the front or back.
- CE- and ETL-certified safety test seal (www.intertek.com/electronics/etl-mark)

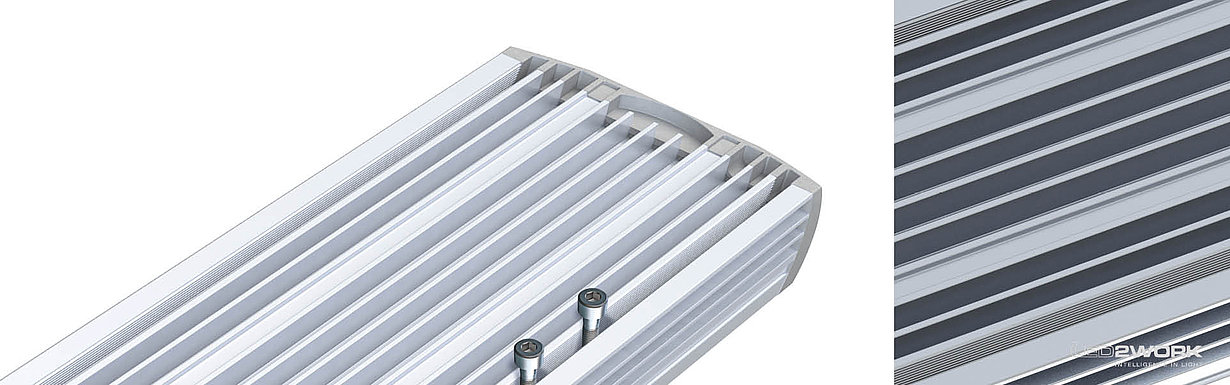

- M5 screw holes on the back for mounting; you can purchase additional mounting accessories separately.
- No maintenance necessary, 36-month warranty
- Developed and made in Germany
Available versions
- 2 different widths available in various lengths.
- Width 3.78 inches in lengths 11.02 inches, 21.26 inches, 31.10 inches, 40.94 inches.
- Width 5.91 inches in lengths 14.57 inches and 27.64 inches.
FIELDLED EVO Surface-Mounted
| Article number | Power consumption | Lamp luminous flux | Data sheet | ||
|---|---|---|---|---|---|
| FIELDLED EVO 280_96 Aufbau, 11.02 inches, 24V DC, surface-mounted machine LED luminaire, M12-A front side | 153010-01 | ~19 W | 3000 lm | Data sheet | |
| FIELDLED EVO 280_96 Surface-Mounted, 24V DC, M12 rear-side | 153010-02 | ~19 W | 3000 lm | Data sheet | |
| FIELDLED EVO 540_96 Surface-Mounted, 24V DC, M12 front-end | 153110-01 | ~39 W | 6000 lm | Data sheet | |
| FIELDLED EVO 540_96 Surface-Mounted, 24V DC, M12 rear-side | 153110-02 | ~39 W | 6000 lm | Data sheet | |
| FIELDLED EVO 790_96 Surface-Mounted, 24V DC, M12 front-end | 153210-01 | ~58 W | 9000 lm | Data sheet | |
| FIELDLED EVO 790_96 Surface-Mounted, 24V DC, M12 rear-side | 153210-02 | ~58 W | 9000 lm | Data sheet | |
| FIELDLED EVO 1040_96 Aufbau, 40,94 inches, 24V DC | 153310-01 | ~78 W | 12000 lm | Data sheet | |
| FIELDLED EVO 1040_96 Aufbau, 40,94 inches, 24V DC | 153310-02 | ~78 W | 12000 lm | Data sheet | |
| FIELDLED EVO 370_150 Surface-Mounted, 24V DC, M12 front-end | 153410-01 | ~43 W | 6300 lm | Data sheet | |
| FIELDLED EVO 370_150 Surface-Mounted, 24V DC, M12 rear-side | 153410-02 | ~43 W | 6700 lm | Data sheet | |
| FIELDLED EVO 702_150 Surface-Mounted, 24V DC, M12 front-end | 153510-01 | ~86 W | 13400 lm | Data sheet | |
| FIELDLED EVO 702_150 Surface-Mounted, 24V DC, M12 rear-side | 153510-02 | ~86 W | 13400 lm | Data sheet |
Product Accessories
FIELDLED EVO light holder, flat (1 pair)
Luminaire holder, swivel 150°, 1 pair for FIELDLED EVO 3.78 inches wide
Item No.: 210200-21
Light holder, swivels 150°, 1 pair for FIELDLED EVO 5.91 inches wide
Item No.: 210200-22
