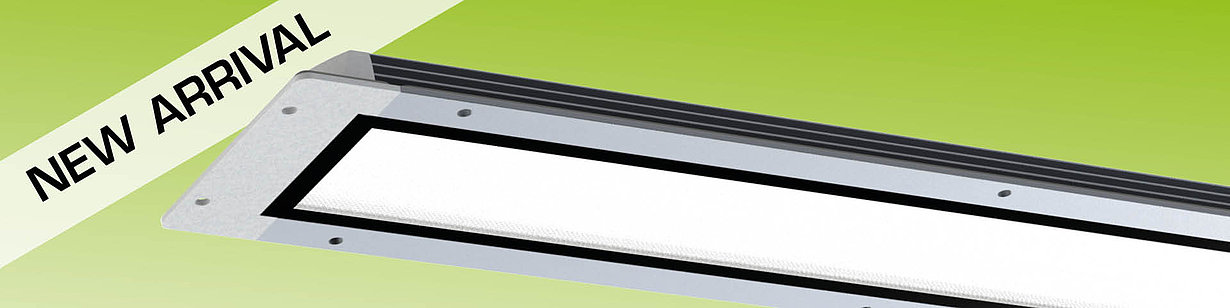

LED Recessed Luminaire
FIELDLED EVO Recessed
Powerful, space-saving area light for harsh environments
Powerful lighting, a fit for standardized installation shafts, and two connection options make the FIELDLED EVO Recessed the ideal machine luminaire for original equipment manufacturers or for retrofitting. Developed for tough, harsh production environments – the LED machine luminaire is prepared to withstand hot chips as well as coolants, oils, and other emulsions.
The single-pane safety glass (ESG) is firmly bonded into the aluminum housing. To ensure a tight seal between the LED Recessed Luminaire and the housing of a machine tool, the installation frame also has a rear-applied gasket. The densely packed LED chips, supported by Light Forming Technology and a microprism diffuser, provide a powerful light output.
Your advantages
- Wide-beam, homogeneous light, flicker-free without UV or IR content
- Light exit with safety glass and a microprism diffuser underneath
- Easy installation in standardized machine tool shafts
- Oil-resistant, chip-proof, and very high protection rating
- No buildup of chips on or around the luminaire
- Permanent light output, as no oil or coolant infiltration occurs in the glass
Application areas
- Large-scale systems and machines
- CNC machines
- Tool, milling, and grinding machines
The Technology
- High-performance LED chips for daylight white (5200-5700 K) – industry standard
- 100° beam angle and color rendering index Ra >85
- Compact internal LED array – extremely powerful
- Robust single-pane safety glass (ESG) over the light aperture
- Light Forming Technology and microprism diffuser
- Low-profile installation frame with holes for M6 screws
- High IP67/IP69K protection rating and above-average service life
- Supply voltage 24V DC
- Connection via M12 A-coded plug connection – depending on variant – rear or front side
- CE and ETL listed safety certification (www.intertek.de/elektronik/etl-zeichen)
- Directly molded TEROSON 2K adhesive seal for sealing between luminaire and machine
- Developed and manufactured in Germany
Versions

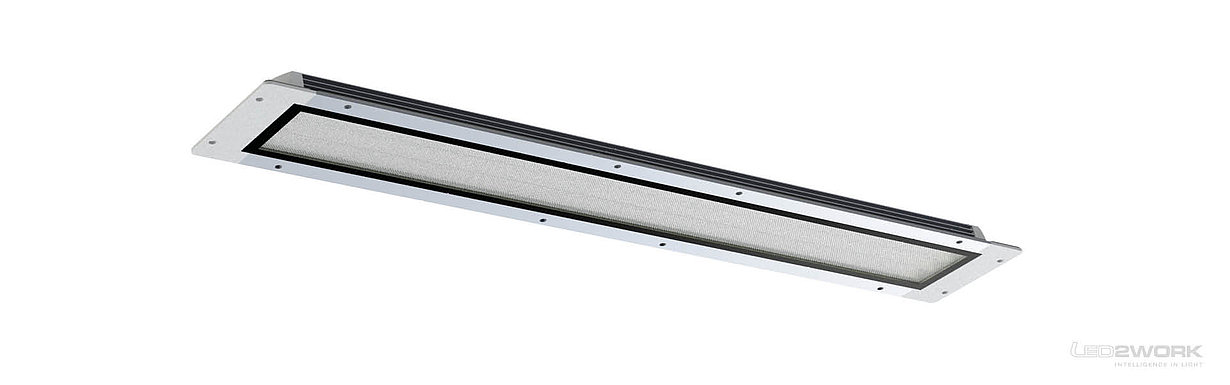

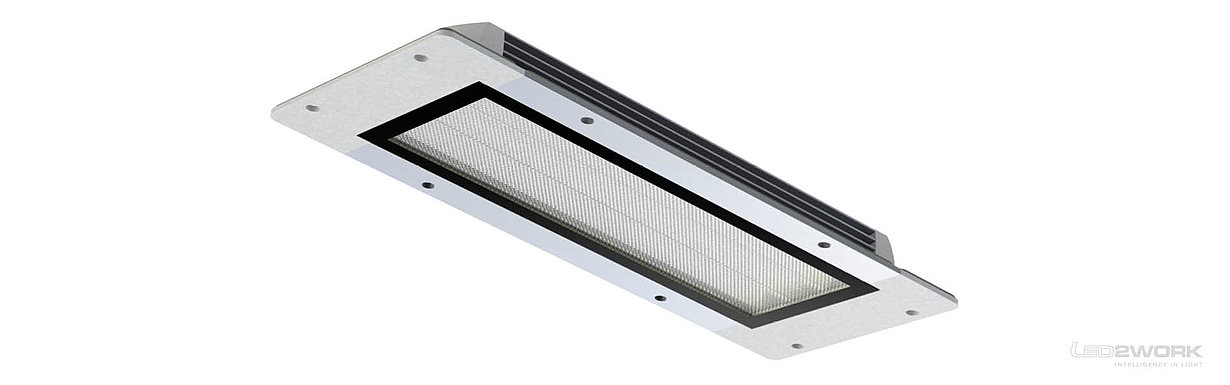

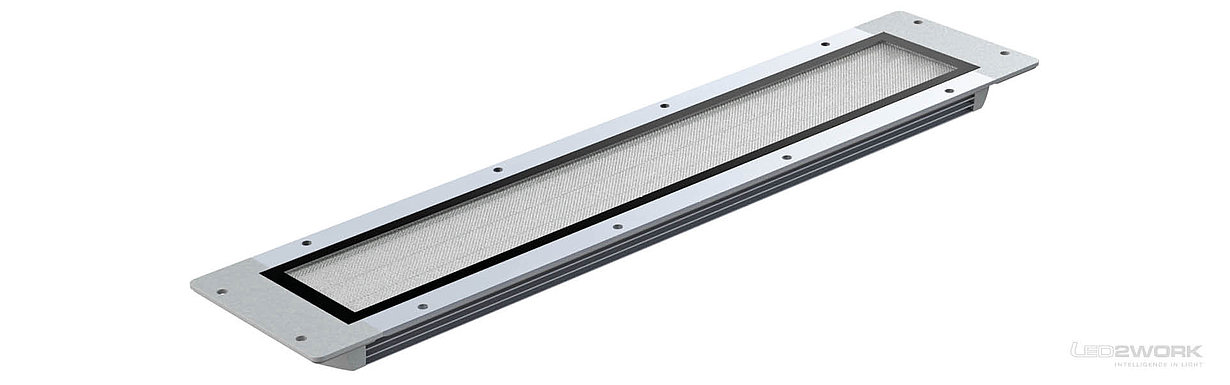

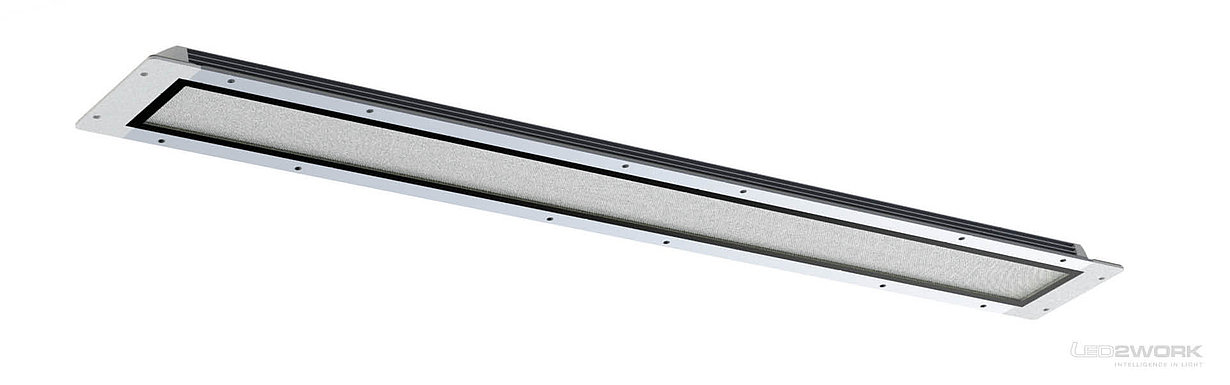

- Recessed housing measuring 3.78 in wide, available in 4 lengths: 11.81 in, 22.05 in, 31.89 in, 41.73 in
- Each length is available as a variant with an M12 A-coded plug connector, either on the rear or front side

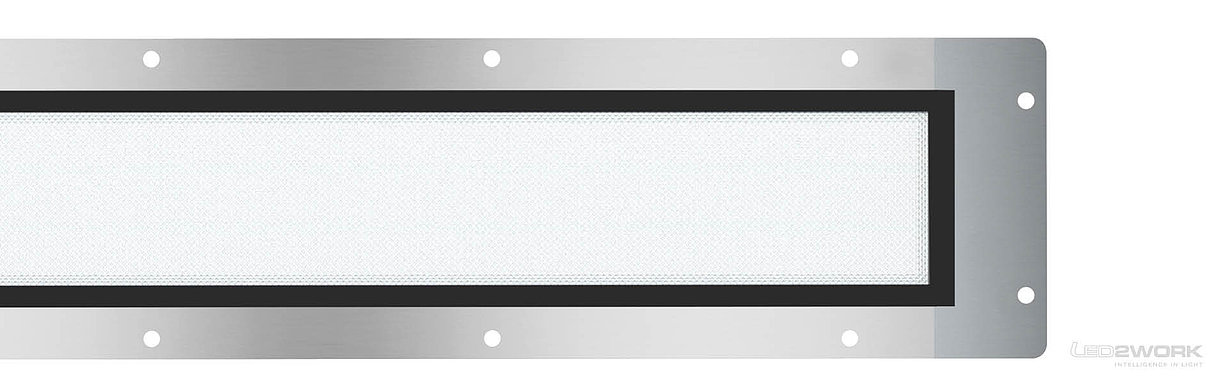

- Luminaire installation frame: extends 0.22 in, 5.20 in wide, and each 2.20 in longer than the recessed housing
- Mounting holes in the frame Ø 0.26 in
- Installation in a standard light well and fastening with M6 threaded screws
FIELDLED EVO Flush-mounted
| Article number | Power consumption | Lamp luminous flux | Data sheet | ||
|---|---|---|---|---|---|
| FIELDLED EVO 280_96 Integrated, 24V DC, M12 front-end | 153010-11 | ~19 W | 3000 lm | Data sheet | |
| FIELDLED EVO 280_96 Integrated, 24V DC, M12 rear-side | 153010-12 | ~19 W | 3000 lm | Data sheet | |
| FIELDLED EVO 540_96 Integrated, 24V DC, M12 front-end | 153110-11 | ~39 W | 6000 lm | Data sheet | |
| FIELDLED EVO 540_96 Integrated, 24V DC, M12 rear-side | 153110-12 | ~39 W | 6000 lm | Data sheet | |
| FIELDLED EVO 790_96 Integrated, 24V DC, M12 front-end | 153210-11 | ~58 W | 9000 lm | Data sheet | |
| FIELDLED EVO 790_96 Integrated, 24V DC, M12 rear-side | 153210-12 | ~58 W | 9000 lm | Data sheet | |
| FIELDLED EVO 1040_96 Integrated, 24V DC, M12 front-end | 153310-11 | ~78 W | 12000 lm | Data sheet | |
| FIELDLED EVO 1040_96 Einbau, 40,94 inches, 24V DC | 153310-12 | ~78 W | 12000 lm | Data sheet |
