Item No.: 210200-07
LED flush mount light
LEANLED II
Very slim, very bright, electrically connectable
The bright LEANLED II striplight can be used in almost any machine without the presence of flying metal chips or coolants and lubricants. The splinter-free cover made of polycarbonate protects the LED technology from dust and splashing water. Additionally, other versions can be arranged in a cascade. These versions can be electrically linked, making it easy and quick to install a lighting system that illuminates large production areas with a consistent and uniform light pattern.
Like the previous model, the LEANLED II is available with a clear or opal white cover. Three length options have been added, giving you the choice of seven different lengths. It's important to highlight the new brackets that are included, which allow for either fixed or movable installation of the striplight.
YOUR ADVANTAGES
- Super intense LED strip light
- Consistent, non-flickering lighting
- Even lighting with opal-white glare protection
- Cascadable, meaning you can easily link them together electrically – making it simple to power multiple lights using just one power supply line.
- Versatile application
AREAS OF APPLICATION
- Woodworking
- For machines and systems with limited space
- Dry work areas in metalworking shops
- Automated systems and bending machines
- Punch presses and assembly lines
- Logistics and many other uses
THE TECHNOLOGY
- Super bright lighting in pure white 5700K 3-step MacAdam during the day.
- Beam angle of 120 degrees and color rendering index greater than 85.
- Thin, nearly flush-mounted LED light fixture, only 1 inch high
- Clear or white cover made of polycarbonate, resistant to cracking and splintering.
- Heat is dissipated to the back through an aluminum base.
- IP 54 rating and long lifespan over
- The power supply is 24 volts DC and it has an A-coded M12 connector.
- Cascadable versions with M12 connectors for electrical linking.
- Listed by CE and ETL
- 2 sets of light fixture holders for fixed or swivel mounting are included in the package.
- No maintenance required, 3-year warranty
- Made in Germany
Designs
- 7 lengths: 7.09 inches, 10.24 inches, 13.78 inches, 20.47 inches, 29.92 inches, 40.16 inches, 59.84 inches
- 2 options: LED light fixture with a transparent cover or a white glare shield.
- 2 options: LED strip light as a standalone unit or connectable with electrical wiring.
- Installation options: included light holders (2 pairs) for fixed or movable mounting or using optional mounting accessories.
Hinweis: Mit dem Laden des Videos akzeptieren Sie die Datenschutzerklärung von YouTube. Mehr Erfahren

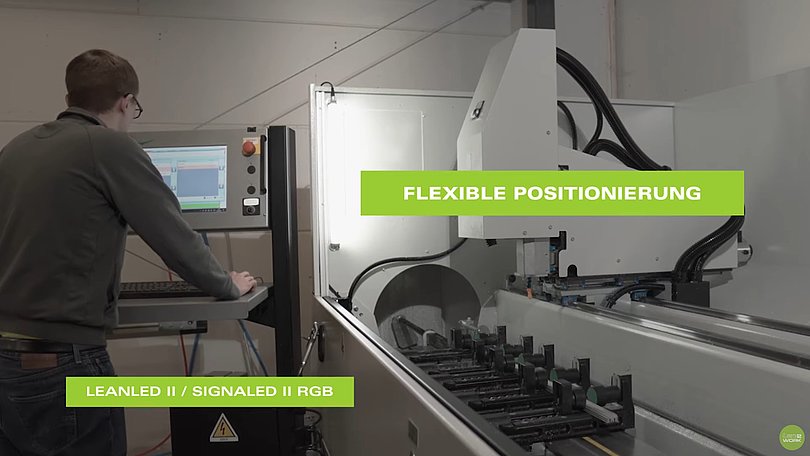

The LED rod luminaire LEANLED II
LEANLED II and SIGNALED II RGB have the same foundation: a slim aluminum profile with a durable cover over the LED chips. While LEANLED II emits bright white light, the light of SIGNALED II RGB can be displayed in all colors of the RGB color space. If needed, white light can be created by blending RGB colors.
Both LED lights are available in 7 lengths, each provided with two sets of holders to choose from.
LED Machine Luminaire | LED striplight
All LEANLED II models:

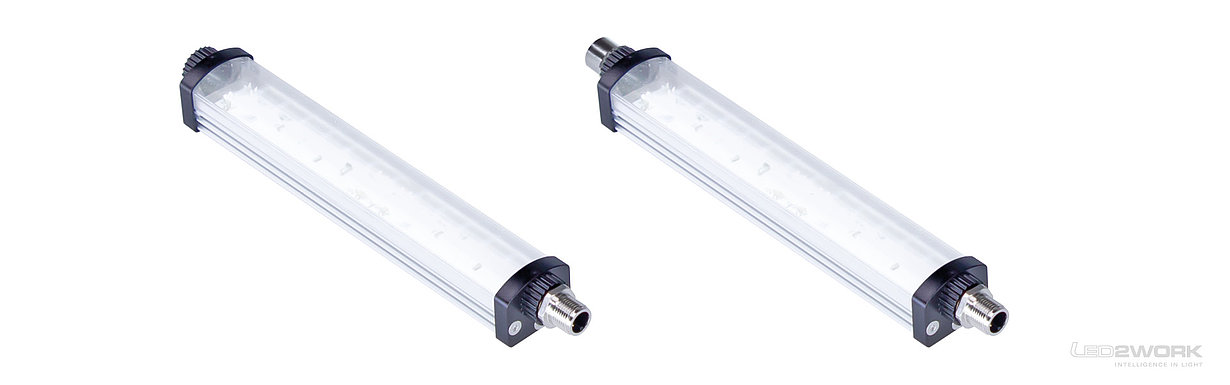

LEANLED II Clear
| Article number | Power consumption | Lamp luminous flux | Data sheet | ||
|---|---|---|---|---|---|
| LEANLED II, 7,09 inches, clear cover | 111010-01 | ~4 W | 668 lm | Data sheet | |
| LEANLED II, 10,24 inches, clear cover | 111010-02 | ~6 W | 1000 lm | Data sheet | |
| LEANLED II, 13,78 inches, clear cover | 111010-03 | ~8 W | 1336 lm | Data sheet | |
| LEANLED II, 20,47 inches, clear cover | 111010-04 | ~13 W | 2004 lm | Data sheet | |
| LEANLED II, 29,92 inches, clear cover | 111010-05 | ~19 W | 3004 lm | Data sheet | |
| LEANLED II, 40,16 inches, clear cover | 111010-06 | ~24 W | 4008 lm | Data sheet | |
| LEANLED II, 59,84 inches, clear cover | 111010-07 | ~37 W | 6012 lm | Data sheet | |
| LEANLED II, 7,09 inches, opal white cover | 111010-11 | ~4 W | 668 lm | Data sheet |

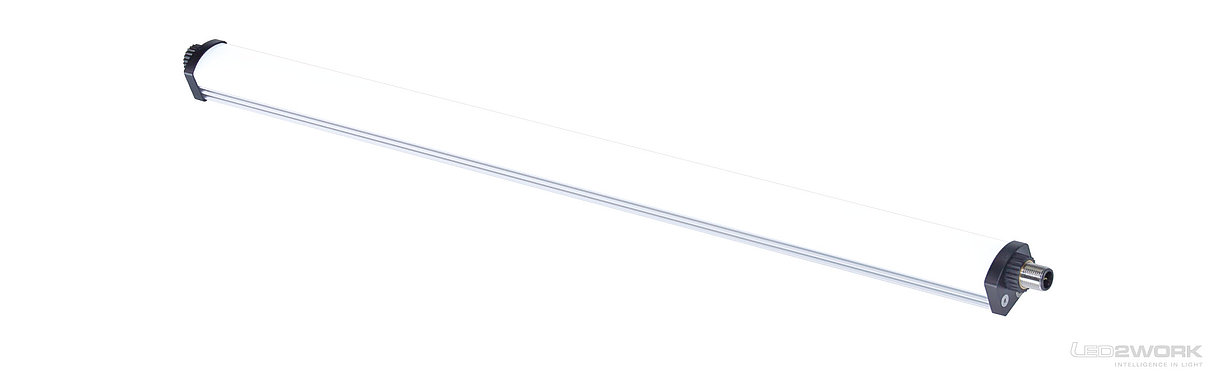

LEANLED II Opal White
| Article number | Power consumption | Lamp luminous flux | Data sheet | ||
|---|---|---|---|---|---|
| LEANLED II, 10.24 inches, opal white cover | 111010-12 | ~6 W | 945 lm | Data sheet | |
| LEANLED II, 13,78 inches, opal white cover | 111010-13 | ~8 W | 1336 lm | Data sheet | |
| LEANLED II, 20.47 inches, opal white cover | 111010-14 | ~13 W | 1890 lm | Data sheet | |
| LEANLED II, 29,92 inches, opal white cover | 111010-15 | ~19 W | 3004 lm | Data sheet | |
| LEANLED II, 59,84 inches, opal white cover | 111010-17 | ~37 W | 6012 lm | Data sheet | |
| LEANLED II, 7,09 inches, clear cover, cascadable | 111010-21 | ~4 W | 668 lm | Data sheet |

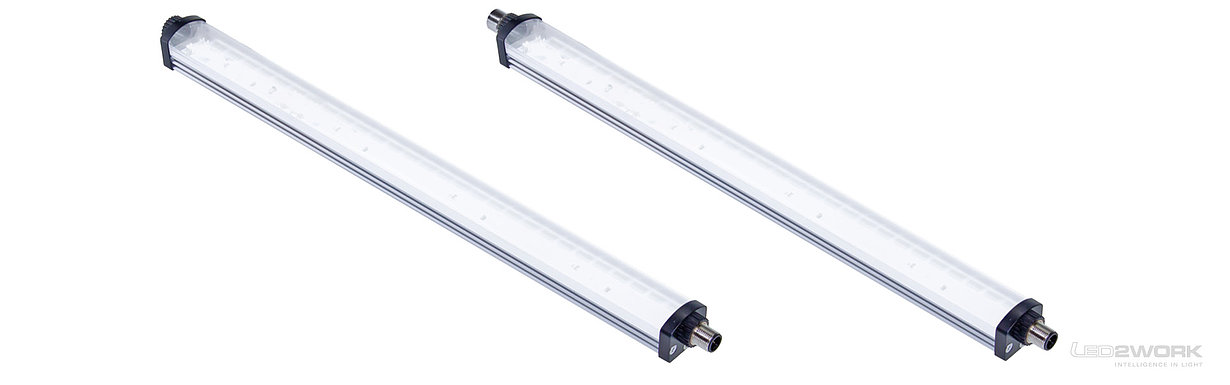

LEANLED II Clear Cascadeable
| Article number | Power consumption | Lamp luminous flux | Data sheet | ||
|---|---|---|---|---|---|
| LEANLED II, 7,09 inches, clear cover, cascadable | 111010-21 | ~4 W | 668 lm | Data sheet | |
| LEANLED II, 10,24 inches, clear cover, cascadable | 111010-22 | ~6 W | 1000 lm | Data sheet | |
| LEANLED II, 13,78 inches, clear cover, cascadable | 111010-23 | ~8 W | 1336 lm | Data sheet | |
| LEANLED II, 20,47 inches, clear cover, cascadable | 111010-24 | ~13 W | 2004 lm | Data sheet | |
| LEANLED II, 29,92 inches, clear cover, cascadable | 111010-25 | ~19 W | 3004 lm | Data sheet |
LEANLED II opal white cascade
| Article number | Power consumption | Lamp luminous flux | Data sheet | ||
|---|---|---|---|---|---|
| LEANLED II, 7,09 inches, opal white cover, cascadable | 111010-31 | ~4 W | 668 lm | Data sheet | |
| LEANLED II, 10.24 inches, opal white cover, cascadable | 111010-32 | ~6 W | 945 lm | Data sheet | |
| LEANLED II, 13,78 inches, opal white cover, cascadable | 111010-33 | ~8 W | 1336 lm | Data sheet | |
| LEANLED II, 20.47 inches, opal white cover, cascadable | 111010-34 | ~13 W | 1890 lm | Data sheet | |
| LEANLED II, 29,92 inches, opal white cover, cascadable | 111010-35 | ~19 W | 3004 lm | Data sheet | |
| LEANLED II, 40.16 inches, opal white cover, cascadable | 111010-36 | ~24 W | 3780 lm | Data sheet | |
| LEANLED II, 59,84 inches, opal white cover, cascadable | 111010-37 | ~37 W | 6012 lm | Data sheet |
With through-wiring (cascadable), several luminaires can be electrically linked.
The total current draw should not exceed 4 Amps DC at a maximum ambient temperature of 104 °F.
Product Accessories
LEANLED / SIGNALED Luminaire support, spring clip (1 pair)
2 sets of holders (included).
