Item No.: 220500-01
LED Articulating Arm Light
CENALED SPOT Articulating Arm
Flexibly movable with a generous reach
CENALED SPOT Articulating Arm is the LED rod light that can be used both at manual workstations and on machine tools. Its generously sized aluminum articulating arm, which otherwise appears sleek, guarantees a wide reach, bringing light right where you need it. Thanks to its high ingress protection rating, CENALED SPOT Articulating Arm is one of the few rod lights that can also be used under rough production conditions. An advantage here is the robust lamp head made of metal and safety glass to protect the high-performance LEDs. Equipped with a base for screwing down or as a basis for additional accessories, CENALED SPOT can always be placed where light is needed.
This LED articulating arm light is part of the CENALED modular system. With housing components made of die-cast aluminum, the economical yet attractively priced CENALED series upgrades any workplace with state-of-the-art technology.
Your Advantages
- Medium beam angle
- Bright neutral-white illumination with high detail sharpness
- Dimmable via button on the lamp head
- By moving the articulating arm, you can place light exactly where it’s needed
- Also suitable for rougher production environments, for example as illumination for machine tools

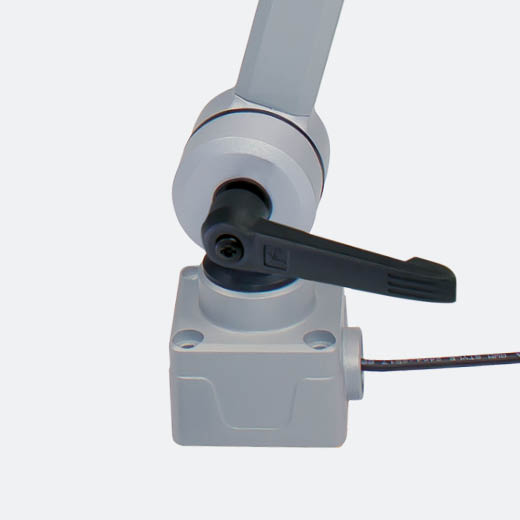

- Universal screw-on base as a foundation for mounting accessories: magnetic holder, table clamp, or wall mount
Hinweis: Mit dem Laden des Videos akzeptieren Sie die Datenschutzerklärung von YouTube. Mehr Erfahren
Application Areas
- Workstations at plants and individual machines
- Skilled trades, manufacturing, and metal processing
- Goldsmiths, dental labs, or the clockmaking trade
- Workbenches or inspection stations
- Conventional machine tools
The Technology
- High-performance LED chips for neutral white
- High color rendering
- Medium beam angle for focused illumination
- Dimmable via button on the lamp head
- Shatter-resistant single-pane safety glass
- Robust articulating arms (350 mm + 400 mm / approx. 13.78 in + 15.75 in) made of aluminum casting with protected internal cabling
- Lateral extended arm structure, freely adjustable via joints
- Minimal heat generation thanks to thermal management in the lamp head made of die-cast aluminum
- DC Version: IP67 rating and 24V DC power supply via 3 m (approx. 9.84 ft) cable with open leads
- Manufactured in Germany
Versions
- 2 versions: CENALED SPOT DC Articulating Arm with 24V DC and CENALED SPOT AC Articulating Arm with wide-range voltage 100-305V AC
- Variable mounting with optional accessories such as magnetic holder, table clamp, or wall mount
The CENALED Articulating Arm has a powder-coated die-cast aluminum housing with a flexibly movable articulating linkage made of cast aluminum.
CENALED SPOT Articulated Arm
| Article number | Power consumption | Lamp luminous flux | Data sheet | ||
|---|---|---|---|---|---|

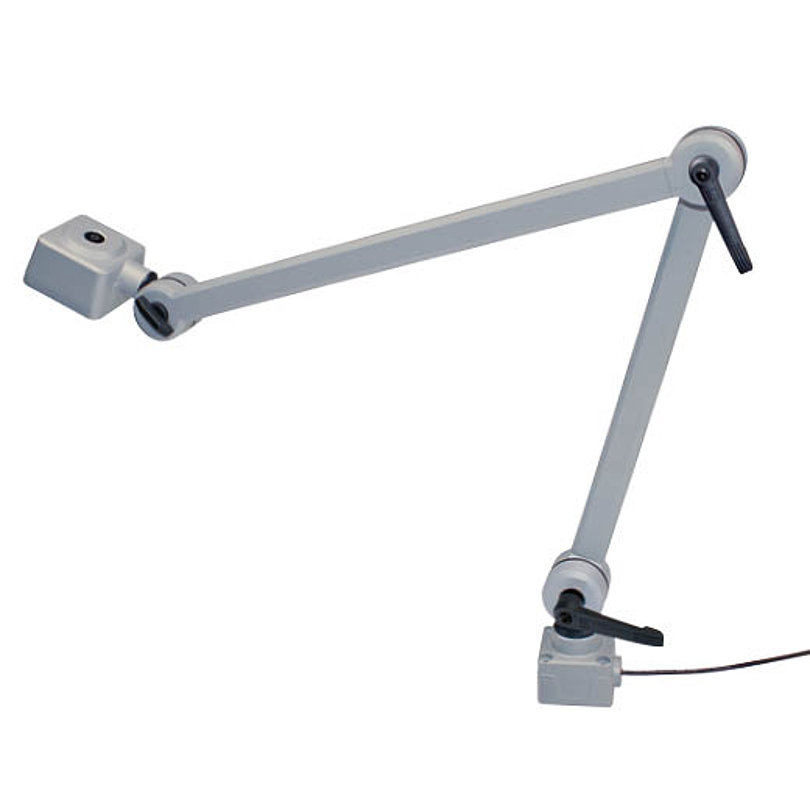

| CENALED SPOT DC, Articulated Arm | 121012-02 | ~8,5 W | 1120 lm | Data sheet | |

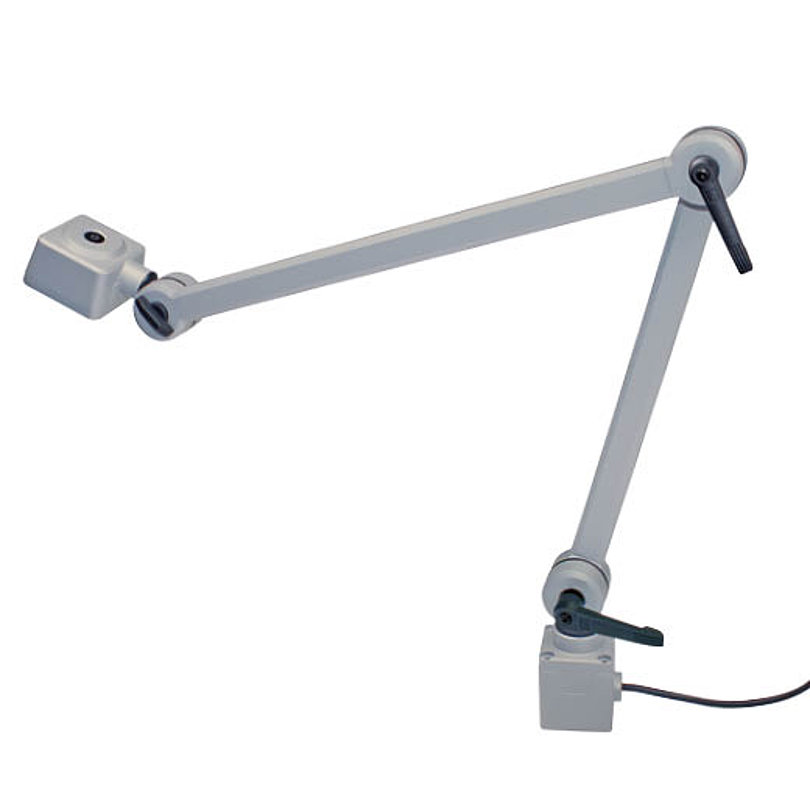

| CENALED SPOT AC, Articulated Arm | 121012-22 | ~9 W | 1120 lm | Data sheet |
Product Accessories
CENALED magnetic clamp for screw-on base
CENALED table clamp for screw-on base
Item No.: 220500-02
CENALED wall bracket for screw-on base
Item No.: 220500-03
