Item No.: 240400-06
SYSTEMLED EVO
Compatible, powerful, efficient

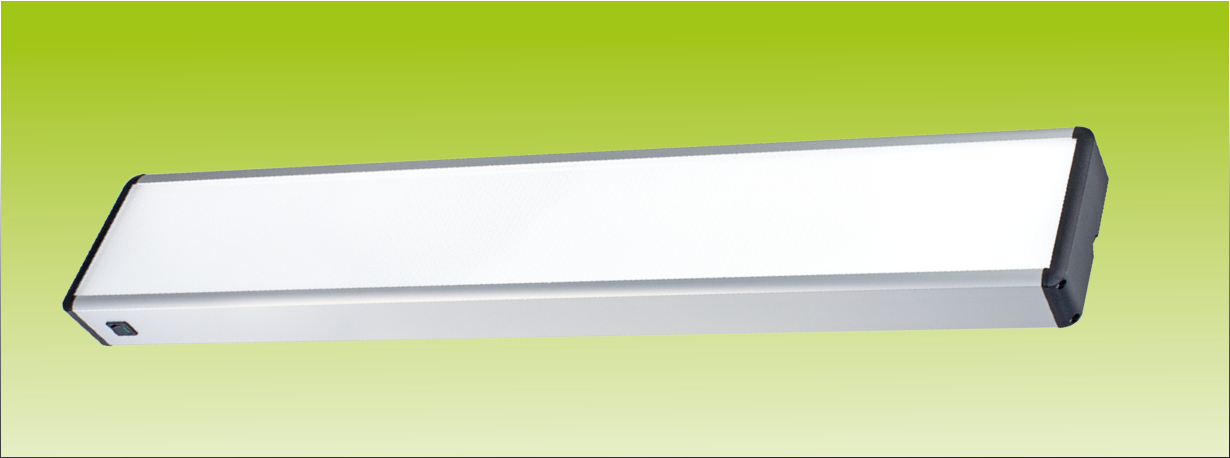

The SYSTEMLED EVO system luminaire sets new standards in modern lighting technology and design. With its clear design language, the LED luminaire integrates seamlessly into any industrial environment. Thanks to its full-surface light emission, there are no dark areas or shadow gaps. The result is very uniform, homogeneous illumination. Optimized glare control provides pleasant light without disturbing glare. The high-quality LED chips also guarantee a very good color rendering. The SYSTEMLED EVO is available in five standard lengths and two performance variants.
LED System Luminaire
Your Advantages
- High luminous power and luminous efficacy
- Flicker-free light with no UV or IR component
- All luminaires can be electrically daisy-chained. Glare-free illumination without reflections on metal surfaces
- Excellent color rendering close to natural daylight (Ra >90)
- Homogeneous light emission across the entire surface – no dark spots or shadow gaps
- Optional: Switching, PWM dimming, and brightness memory via accessories
Areas of Application
- Permanently installed lighting solution for system workstations, machines, and installations
The Technology
- Latest LED technology and light emission across the entire width and depth of the luminaire
- Shatterproof and splinterproof microprismatic cover
- Heat dissipation via the aluminum base body to the rear
- Rear T-slot mounting for stable locking on walls, ceilings, machines, or system workstations
- Dimming via optional accessories
- CE/UKCA-compliant, ETL (UL/CSA) listing in progress
- Manufactured in Germany
Versions
- 5 lengths: 18.58 in, 35.35 in, 44.09 in, 52.83 in, 70.16 in
- Luminous flux-optimized Power version or performance-optimized ECO version
- Light color neutral white or daylight white
SYSTEMLED EVO | LED Workplace Luminaire
SYSTEMLED EVO - POWER Daylight White
| Article number | Total output incl. driver | Lamp luminous flux | Data sheet | ||
|---|---|---|---|---|---|
| SYSTEMLED EVO - POWER, 5700K, ~35,35“ | 155110-01 | ~41 W | 6500 lm | Data sheet | |
| SYSTEMLED EVO - POWER, 5700K, ~44,09“ | 155210-01 | ~51 W | 8125 lm | Data sheet |
Product Accessories
SYSTEMLED EVO / PROFILED front bracket
Mounting kit SYSTEMLED EVO sliding blocks N8
Item No.: 240400-07
Mounting kit for T-slot mounting SYSTEMLED EVO/ PROFILED (1 pair)
Item No.: 240400-04
PROFILED / SYSTEMLED EVO Mounting kit for T-Nut slot holder T-Nut, flat, with ESD insulation (1 pair)
Item No.: 240400-05
PROFILED / SYSTEMLED Mounting kit for T-Nut slot holder T-Nut, rotatable, with ESD insulation (1 pair)
Item No.: 240400-02
SYSTEMLED EVO Memory Stick
Item No.: 240700-02
SYSTEMLED EVO control unit (dimmer/switch) - ~9,84 ft.
Item No.: 240700-01
SYSTEMLED EVO control unit (dimmer/switch) - ~16,4 ft.
Item No.: 240700-03

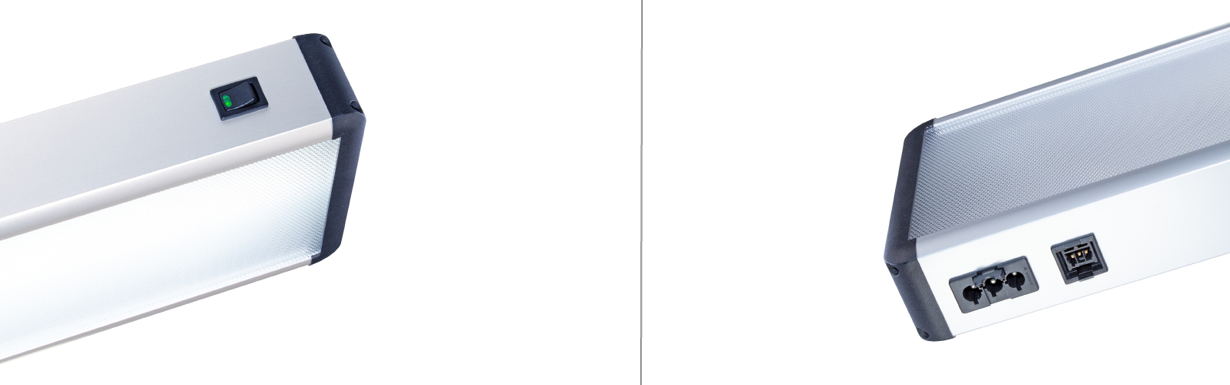

GST18i3 Socket (power input) for mains connection cable
Item No.: 240200-02
GST18i3 Mains connection cable / socket - CH plug
Item No.: 240100-03
GST18i3 plug connector (current output) for cascading
Item No.: 240200-03

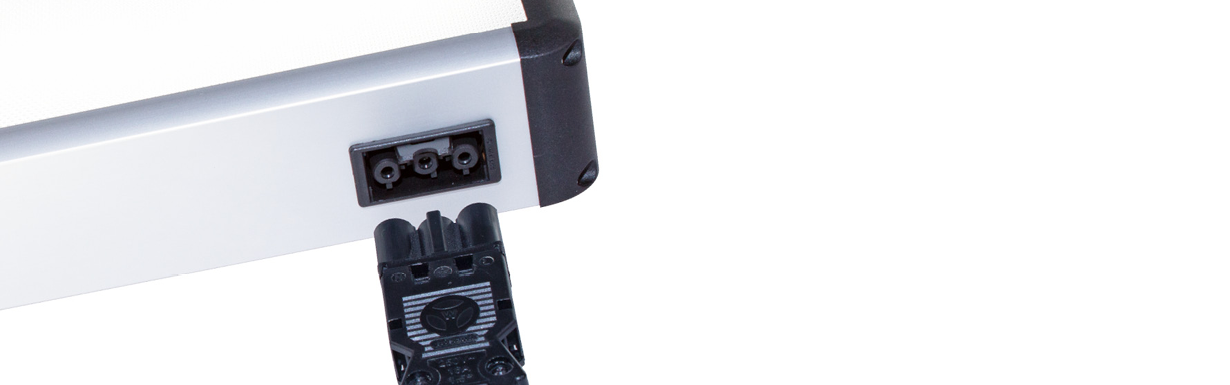

Wieland GST18 connection line SYSTEMLED, 16,4 ft., right angle plug
Item No.: 240100-01
Wieland GST18 connection line SYSTEMLED, 9,84 ft., right angle plug
Item No.: 240100-02
Wieland Anschlussleitung SYSTEMLED, 5m
Item No.: 240200-01
Wieland GST18 extension cable SYSTEMLED, 1 m
Item No.: 240300-01
Wieland GST18 extension cable SYSTEMLED, 6,56 ft.
Item No.: 240300-02
Wieland GST18 extension cable SYSTEMLED, 16,4 ft.
Item No.: 240300-03
