Item No.: 240400-06

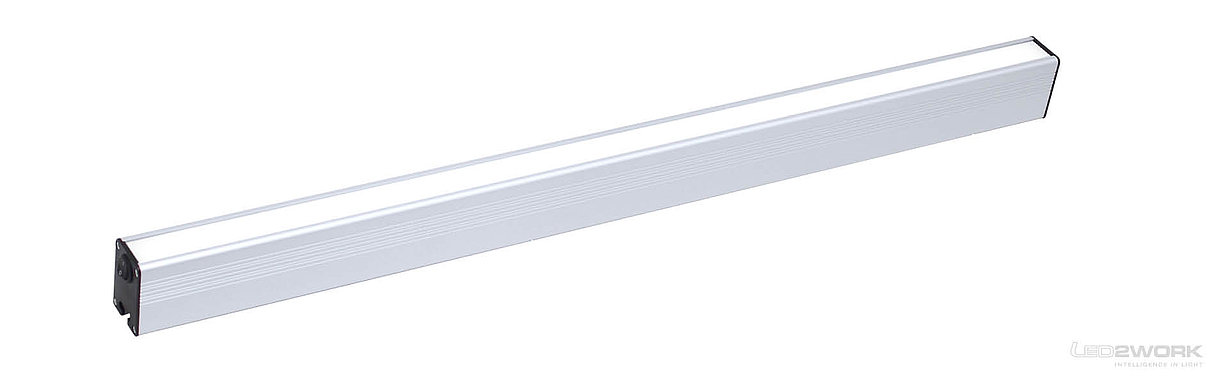

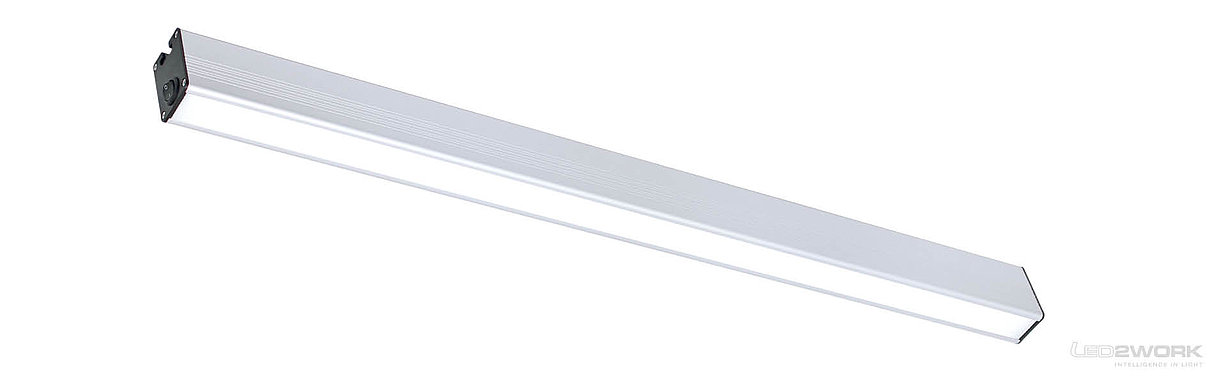

LED Profile Light with a profile
PROFILED
Adaptable, standardized yet flexible

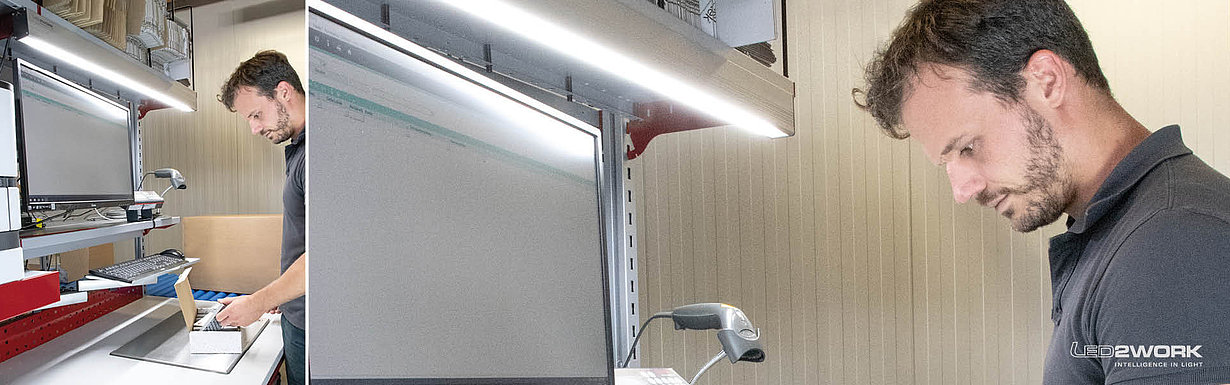

The PROFILED was developed as a multipurpose light or work light. With an IP40 rating, the LED light is suitable for all dry environments in applications such as technical installations, assembly lines, packaging stations, and in workshops as workbench lighting. The PROFILED also offers versatile attachment options: the light fixture can be mounted horizontally as well as vertically using a T-slot in the profile. Even a Cable suspension is possible and makes the PROFILED light interesting as a lighting option for large desks, for example, in art rooms and studios.
YOUR ADVANTAGES
- Flat illumination with high light dispersion
- Especially energy-saving
- Versatile light: easy to attach and versatile in use
APPLICATIONS
- Car workshops
- System workstations and assembly lines
- Shipping stations and storage spaces
- Fashion stores and workshops
- For applications around technical equipment, test stations and workbenches
THE TECHNOLOGY
- Lighting with strong 5200-5700K daylight white
- 100-degree light beam angle and color rendering index of over 85.
- Opal white, splinter-free plastic cover
- Heat dissipation through aluminum body to the back

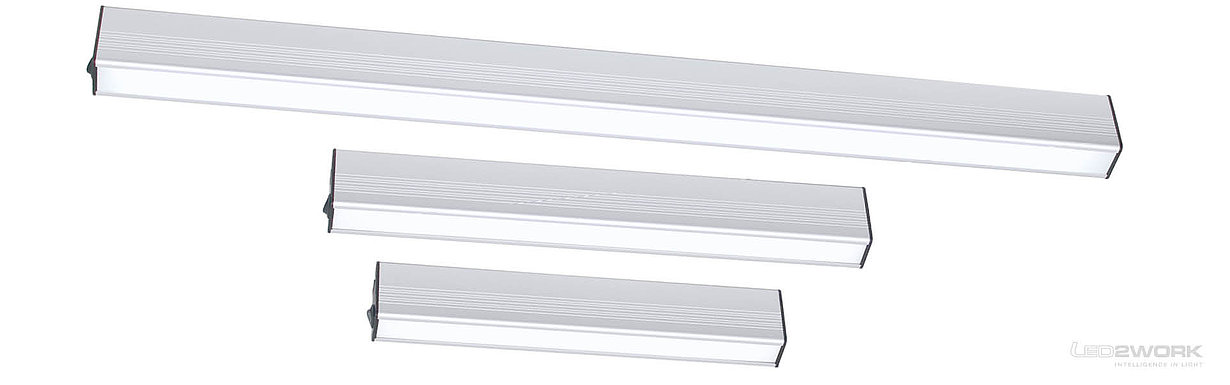

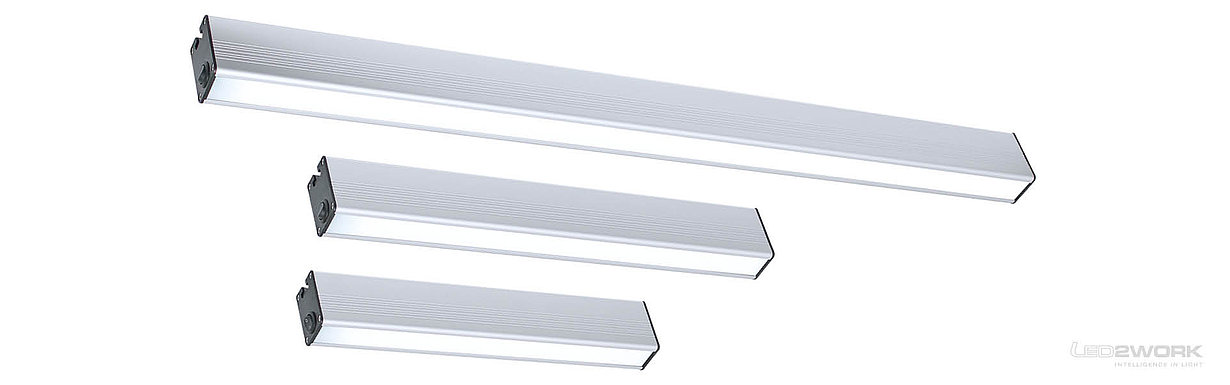

- Plenty of options for lengths: up to 59 inches.
- IP40 rating and durable lifespan of the light fixtures

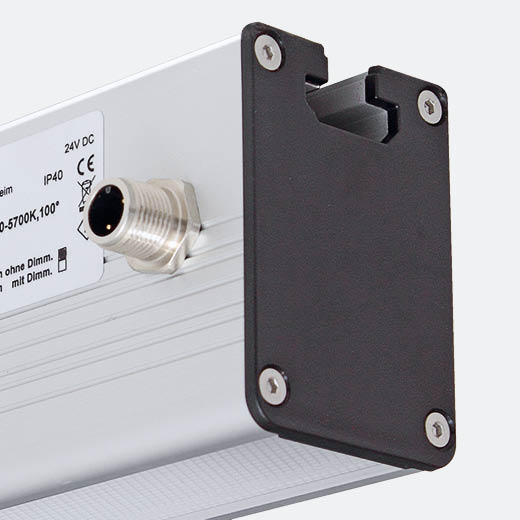

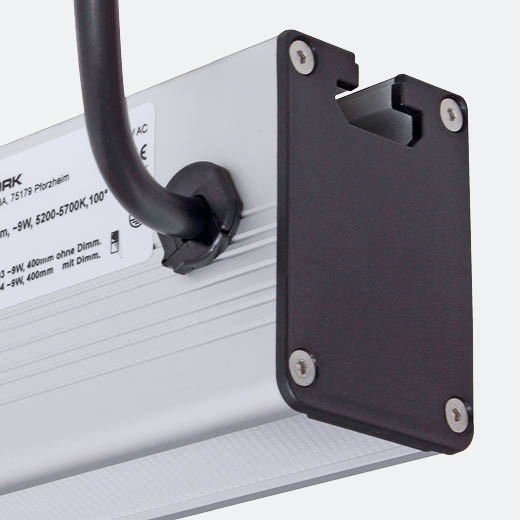

- Power supply voltage of 24 volts DC through an M12 connector or 230 volts AC through a SCHUKO outlet with a 10-foot cable.
- AC model with a voltage connection that ranges from 90 to 305 volts AC.

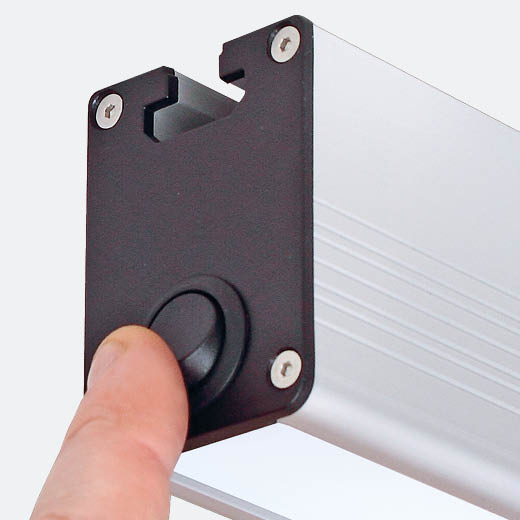

- Lamp options with built-in dimmer controlled by a pushbutton

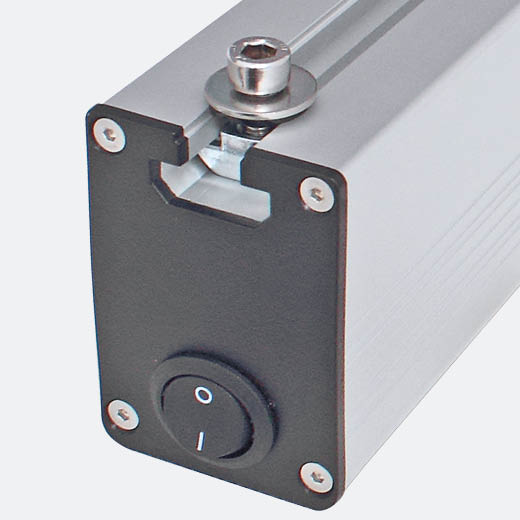

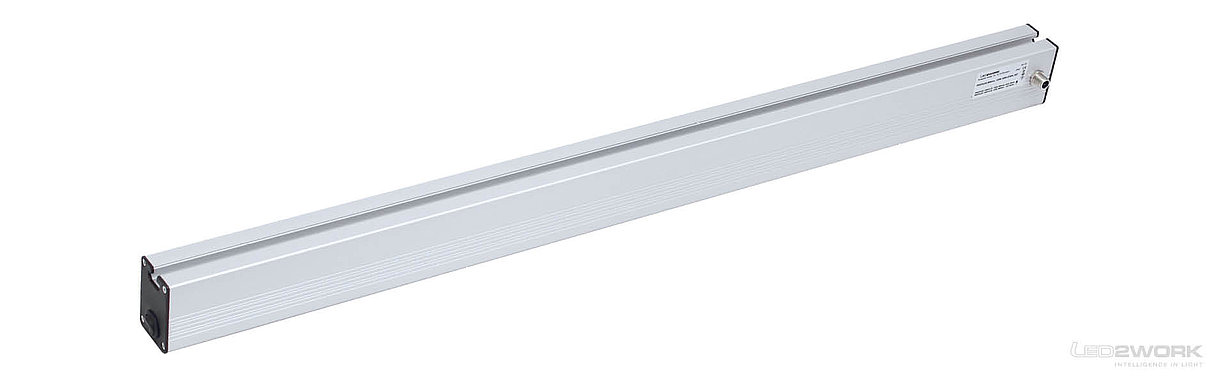

- Multiple mounting options using T-slot in light fixture profile
- Mounting can also be done using the optional cable suspension.
- Made in Germany
** T-slot nuts not included.
LED light fixture for workspaces and industrial facilities
PROFILING all regular models
PROFILED DC
| Article number | Power consumption | Lamp luminous flux | Data sheet | ||
|---|---|---|---|---|---|
| PROFILED DC, 19,69 inches, M12 A-coded, 24V DC | 150314-01 | ~11 W | 1670 lm | Data sheet | |
| PROFILED DC, 19,69 inches, with dimmer, M12 A-coded, 24V DC | 150314-02 | ~11 W | 1670 lm | Data sheet | |
| PROFILED DC, 35,43 inches, M12 A-coded, 24V DC | 150614-01 | ~21 W | 3340 lm | Data sheet | |
| PROFILED DC, 35,43 inches, with dimmer, M12 A-coded, 24V DC | 150614-02 | ~21 W | 3340 lm | Data sheet | |
| PROFILED DC, 39,37 inches, M12 A-coded, 24V DC | 150714-01 | ~23 W | 3674 lm | Data sheet | |
| PROFILED DC, 39,37 inches, with dimmer, M12 A-coded, 24V DC | 150714-02 | ~23 W | 3674 lm | Data sheet | |
| PROFILED DC, 47,24 inches, M12 A-coded, 24V DC | 150814-01 | ~30 W | 4676 lm | Data sheet | |
| PROFILED DC, 47,24 inches, with dimmer, M12 A-coded, 24V DC | 150814-02 | ~30 W | 4676 lm | Data sheet | |
| PROFILED DC, 59,06 inches, M12 A-coded, 24V DC | 150914-01 | ~37 W | 5678 lm | Data sheet | |
| PROFILED DC, 59,06 inches, with dimmer, M12 A-coded, 24V DC | 150914-02 | ~37 W | 5678 lm | Data sheet |
