Item No.: 210200-26

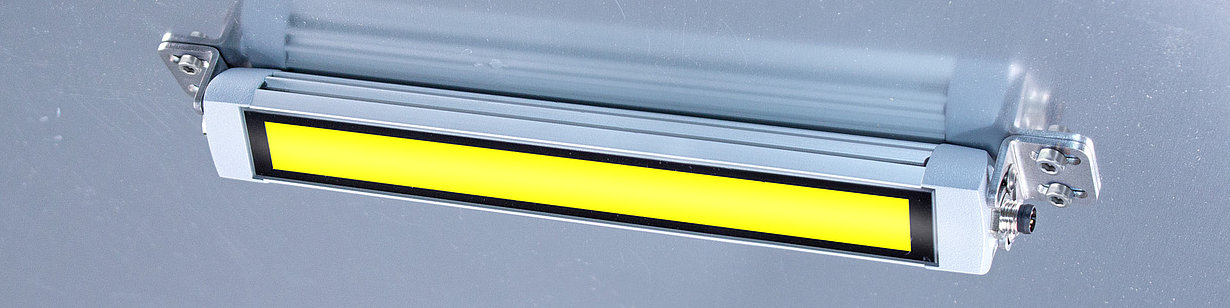

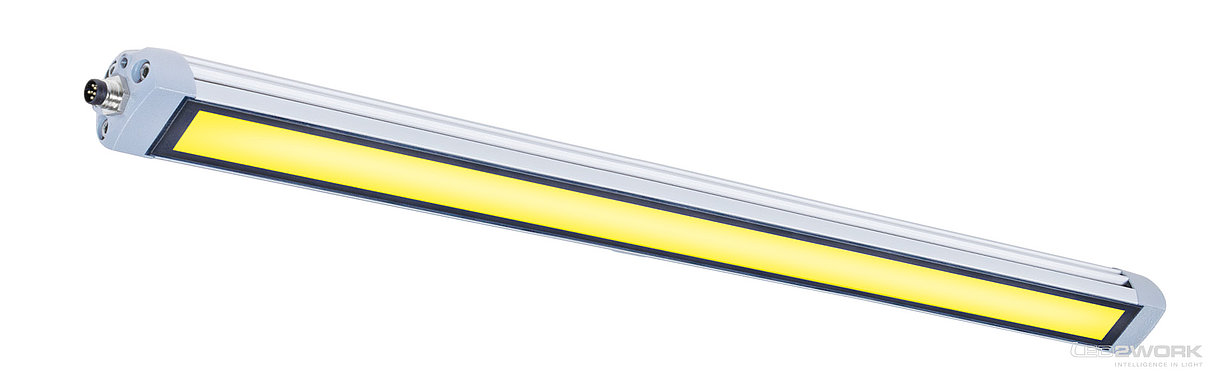

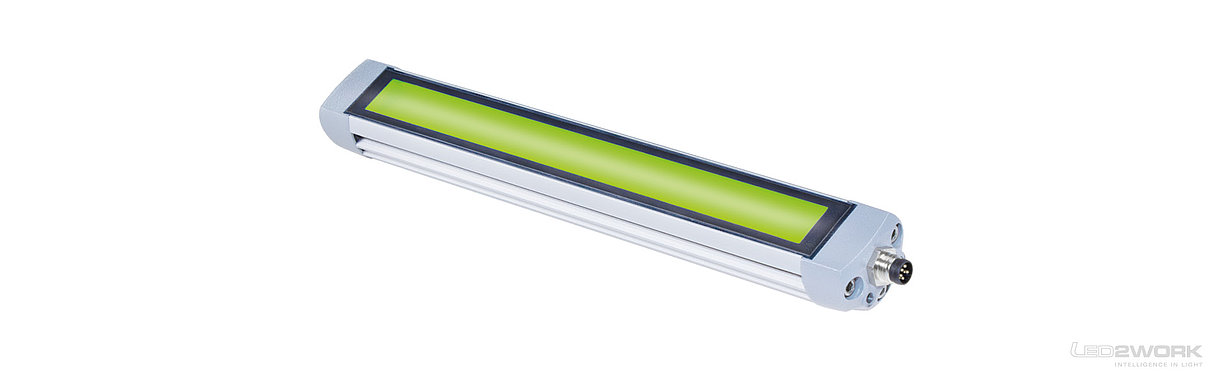

LED IO-Link light
TUBELED_25 RGB-W IO-Link
Slim, robust and capable of automation
The TUBELED_25 RGB-W IO-Link is a slim and robust LED hybrid light that has been specially developed for use in technical systems, automation and machine tools of the next IoT generation. With its low overall height, it can also be used in tight installation situations and offers powerful illumination and colored light for signaling thanks to RGB-W LED technology. The IO-Link version enables users to operate, parameterize and diagnose the luminaire using suitable software. Overall, the TUBELED_25 RGB-W IO-Link impresses with its high level of functionality and automation capability.
Your advantages
- High-intensity surface light for illumination
- Flicker-free illumination, without UV and IR components, in daylight white
- Signal-capable: a light color change to colored light can be used, for example, to indicate machine statuses that are visible from afar
- Very slim housing geometry - also for tight installation situations
- High degree of protection: protected against water jets and dust-tight
- Suitable for harsh environments with coolant and chip bombardment
- Parameterizable and diagnosable
_Control via IO-Link using suitable manufacturer-independent software
Areas of application
- Automation and systems engineering
- Metal processing: machine tools, CNC machines
- Plastics processing
The technology
- RGB LED chips arranged in clusters and high-performance LED chips for white light - for a harmonious light image
- 100° beam angle and high color rendering with white light
- RGB - i.e. [ Red | Green | Blue ] - LED chips can signal different states of machines and systems by changing the light color - the mixture of the three basic light colors allows an output of more than 16 million colors
- Control of the LED chips for light and color control via IO-Link using suitable manufacturer-independent software
- IP67 protection rating and above-average service life of the RGB-W LED chips
- Shatterproof, 4 mm thick, diffuse toughened safety glass
- Chip bullet-proof, vibration and shock resistant - 100% CNC suitable
- Oil-resistant seals (FKM seal Vition®)
- Ready for automation and system technology: 24V DC connection and control via M8 sensor plug connection B-coded
- Housing: optimized aluminium profile for better heat dissipation - no burn-in of coolant
- CE and ETL listed test seal
- Attachment via separately available accessories
- Made in Germany
Executions
- 6 Lengths: 8.07 inches, 11.42 inches, 14.57 inches, 21.26 inches, 27.76 inches, 34.25 inches
- Variant in all available lengths with IO-Link-capable circuit board
TUBELED_25 RGB-W IO-Link
| Article number | Lamp luminous flux RED | Lamp luminous flux GREEN | Lamp luminous flux BLUE | White lamp luminous flux | Data sheet | ||
|---|---|---|---|---|---|---|---|
| TUBELED_25 RGB-W, IO-Link, 8,07 inches, 24V DC | 154090-11 | 92 lm | 168 lm | 56 lm | 765 lm | Data sheet | |
| TUBELED_25 RGB-W, IO-Link, 11,42 inches, 24V DC | 154190-11 | 138 lm | 252 lm | 84 lm | 1150 lm | Data sheet | |
| TUBELED_25 RGB-W, IO-Link, 14,57 inches, 24V DC | 154290-11 | 184 lm | 336 lm | 112 lm | 1530 lm | Data sheet | |
| TUBELED_25 RGB-W, IO-Link, 21,26 inches, 24V DC | 154390-11 | 276 lm | 504 lm | 168 lm | 2300 lm | Data sheet | |
| TUBELED_25 RGB-W, IO-Link, 27,76 inches, 24V DC | 154490-11 | 368 lm | 672 lm | 224 lm | 3065 lm | Data sheet | |
| TUBELED_25 RGB-W, IO-Link, 34,25 inches, 24V DC | 154590-11 | 460 lm | 840 lm | 280 lm | 3830 lm | Data sheet |
