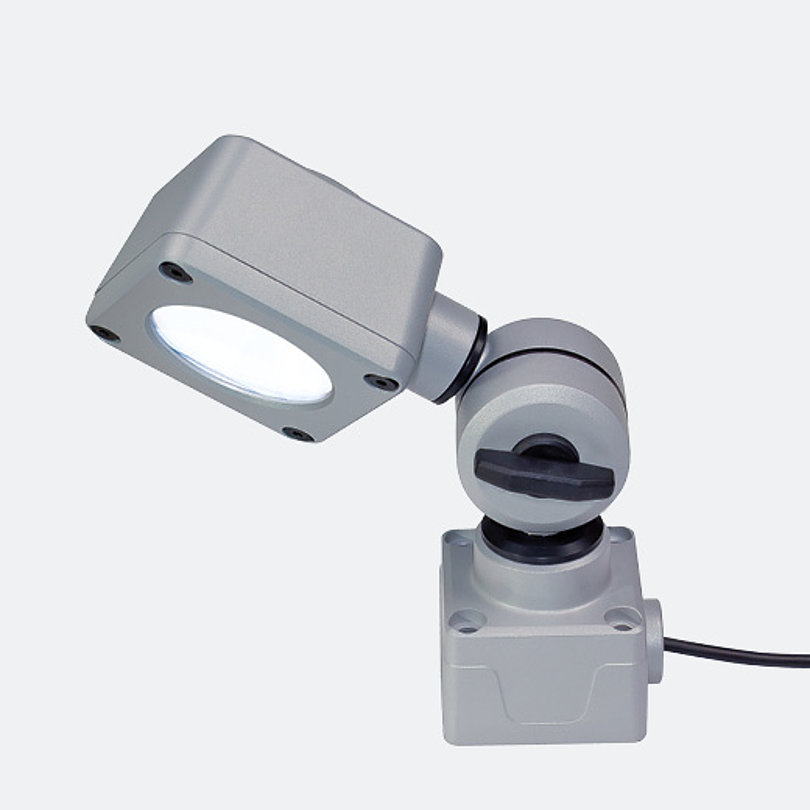

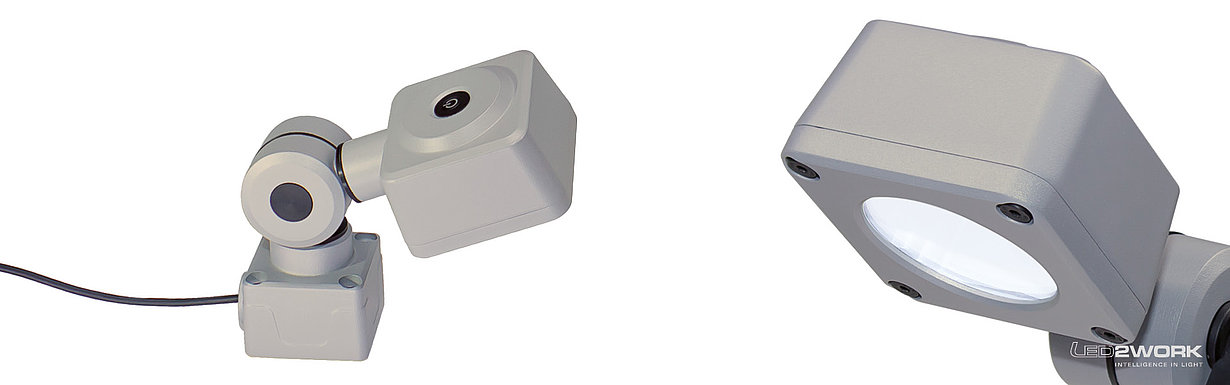

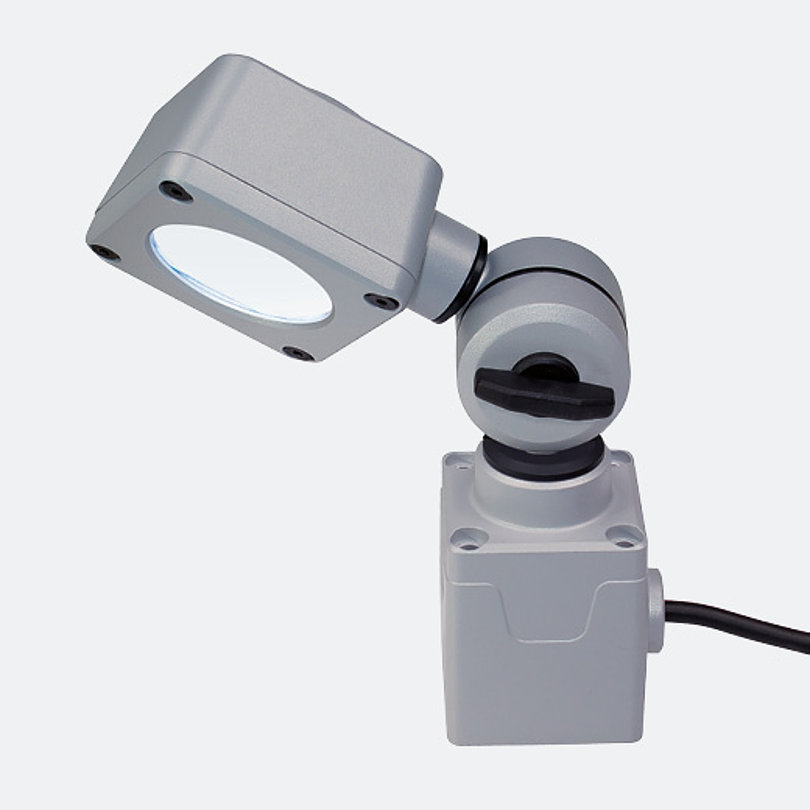

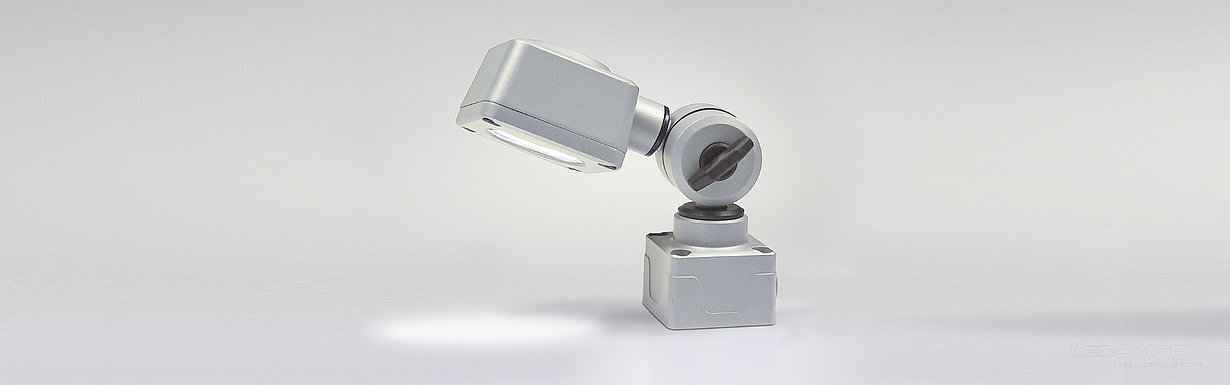

Image of the LED Machine Luminaire | LED Workplace Luminaire | CENALED Articulated Head - LED2WORK

LED Articulated-Head Lamp

CENALED SPOT Articulated-Head Lamp | Machine Luminaire IP65

Subtle yet robust and packed with power

Machine Luminaire IP65 | The CENALED SPOT in its space-saving articulated-head variant is perfect for workplaces with limited room. With a high protection rating, a sturdy aluminum housing, and safety glass in front of the high-performance LEDs, this lamp can even be used in machine tools. A mounting base allows for direct attachment or serves as a base for additional mounting accessories such as a magnetic base or wall bracket.

The LED articulated-head lamp is part of the CENALED modular system. Made with standardized aluminum die-cast parts, the CENALED series is both economical and competitively priced, offering a universal workplace luminaire with cutting-edge technology.

Image of the LED Machine Luminaire | LED Workplace Luminaire | CENALED Articulated Head - LED2WORK
Image of the LED Machine Luminaire | LED Workplace Luminaire | CENALED Articulated Head - LED2WORK
Image of the LED Machine Luminaire | LED Workplace Luminaire | CENALED Articulated Head - LED2WORK

Your Benefits

  • Very compact and energy-efficient LED luminaire with cutting-edge LED technology
  • Medium beam angle
  • Bright illumination in neutral white with high detail clarity
  • Dimmable via button on the lamp head
  • The articulated head allows for precise alignment of the light
  • Universal mounting base, also suitable for optional accessories

Areas of Application

  • Machine tools or machine workstations
  • Systems and production areas with limited space
  • Workbenches and test stations
  • Microscope lighting

Technology

  • High-performance LED chips for neutral white
  • High color rendering
  • Medium beam angle for focused illumination
  • Dimmable via button on the lamp head
  • Shatter-resistant single-pane safety glass
  • Minimal heat buildup thanks to thermal management in the housing
  • DC Version: IP67 protection rating and input voltage 24V DC with a 9.8 ft feed line and open leads
  • AC Version: IP65 protection rating and input voltage 110-305V AC with a 9.8 ft feed line
  • Manufactured in Germany

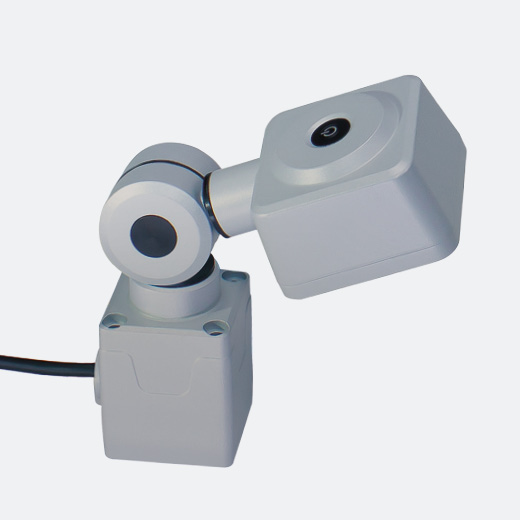

ON/OFF button and dimming on the lamp head
Base CENALED SPOT DC | 24V DC Connection
Base CENALED SPOT AC | 110-305V AC Connection

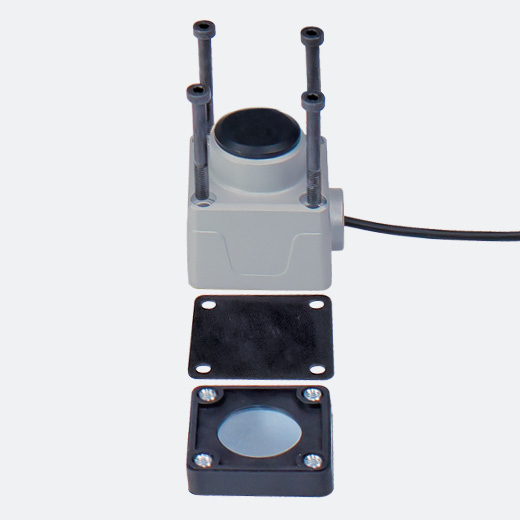

Mounting the magnetic base (optional) to the mounting base

Versions

  • 2 versions: CENALED SPOT DC articulated head with 24V DC for connection to machine voltage, and CENALED SPOT AC articulated head with a wide range voltage of 110-305V AC
  • Variable mounting with optional accessories, such as a magnetic base or wall bracket
CENALED SPOT Articulated Head DC
CENALED SPOT Articulated Head AC

CENALED SPOT Articulated Head

Article number Power consumption Lamp luminous flux Data sheet
CENALED SPOT DC, Gelenkkopf Joint head luminaire 121012-03 ~8,5 W 1120 lm Data sheet
CENALED SPOT AC, pivoted head 121012-23 ~9 W 1120 lm Data sheet

Product Accessories

CENALED magnetic clamp for screw-on base
CENALED table clamp for screw-on base
