Item No.: 200100-20
LED Machine Light
VARILED II
Flat, robust and reliable

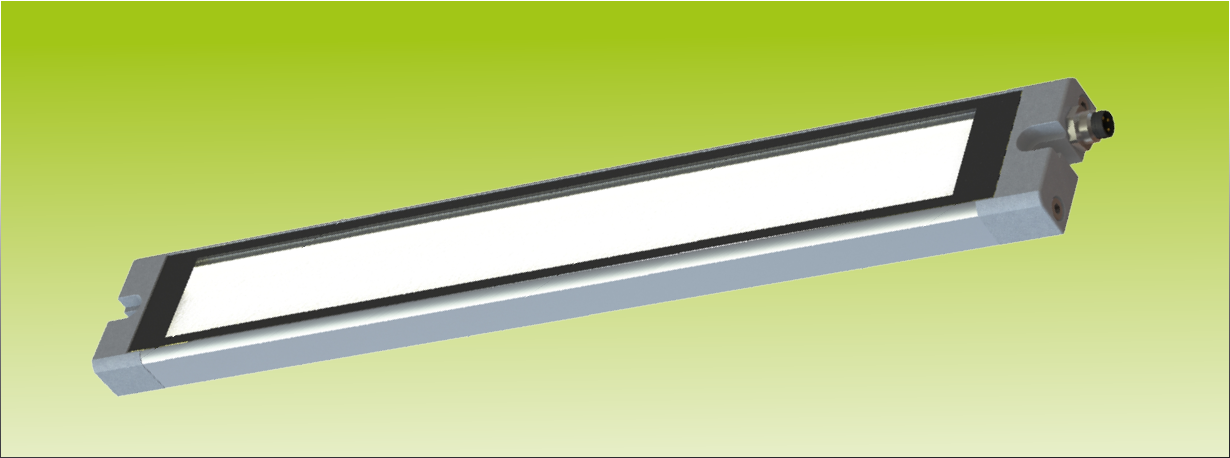

The LED machine light VARILED II is an ultra-thin LED surface-mounted light (< 0.6 in) designed for original equipment or retrofit applications to illuminate machinery and systems. Its high protection rating of IP67 certifies excellent sealing. Additionally, the LED light is resistant to many substances such as oils and coolants. Its advantage is the slim, very low-profile design combined with a uniform and glare-free light distribution – a combination not usually expected from such a compact light.
Your Advantages
- Uniform, glare-free light through diffused light distribution
- Extremely robust LED machine light
- Ultra-thin design and space-saving installation in the work area
Applications
- For work areas with limited space
- Machine tools and machining centers
- Injection molding machines, extruders and blow molding machines
- For lighting automated systems
The Technology
- High-performance LEDs with a color temperature of 5600K (3-step MacAdam)
- Aluminum housing with single-pane safety glass
- Wide-beam optics with a high-quality diffusing lens

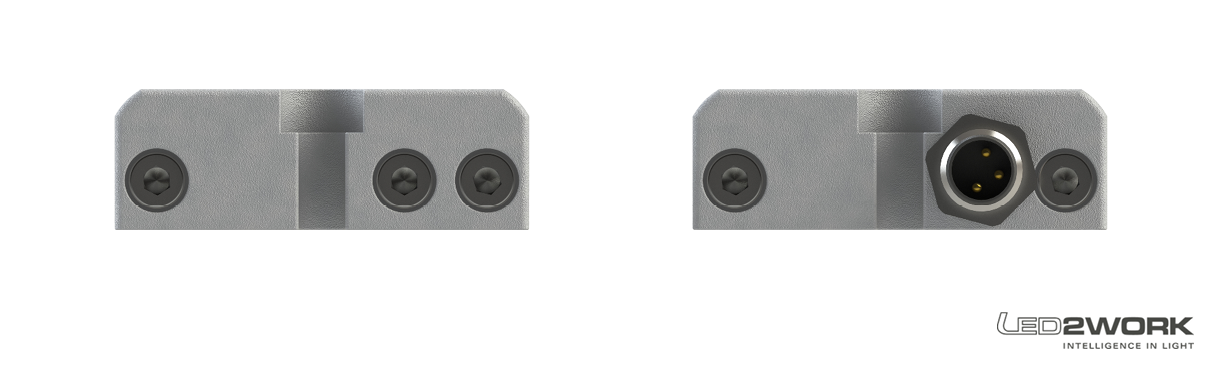

- Slim housing with M8 connector
- Maintenance-free, 36 months warranty
- Made in Germany
Configurations
- 7 lengths: 4.9 in, 8.2 in, 11.7 in, 15.1 in, 22.0 in, 28.9 in, 41.7 in

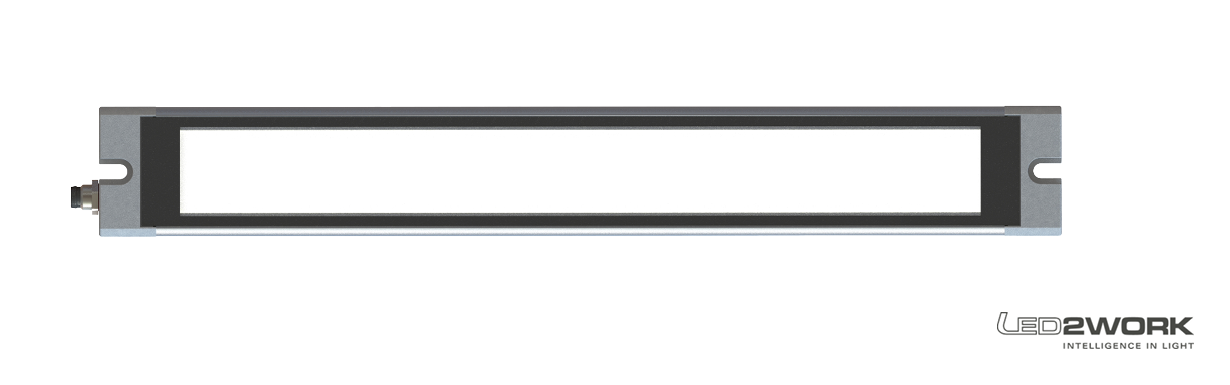

- Mounting via elongated hole directly on the housing
VARILED II
VARILED II Power
| Article number | Power consumption | Lamp luminous flux | Data sheet | ||
|---|---|---|---|---|---|
| VARILED II Power, ~4,92“, 24V DC | 157010-01 | 4 W | 633 lm | Data sheet | |
| VARILED II Power, ~8,19“, 24V DC | 157110-01 | 8 W | 1266 lm | Data sheet | |
| VARILED II Power, ~11,73“, 24V DC | 157210-01 | 12 W | 1899 lm | Data sheet | |
| VARILED II Power, ~15,08“, 24V DC | 157310-01 | 16 W | 2531 lm | Data sheet | |
| VARILED II Power, ~21,97“, 24V DC | 157410-01 | 24 W | 3798 lm | Data sheet | |
| VARILED II Power, ~28,86“, 24V DC | 157510-01 | 32 W | 5062 lm | Data sheet | |
| VARILED II Power, ~41,65“, 24V DC | 157610-01 | 48 W | 7596 lm | Data sheet |
Product Accessories
Sensor Kabel, 2 m, 3-Polig, offen/M8 Buchse, für 24V
Sensor Kabel, 5 m, 3-Polig, offen/M8 Buchse, für 24V
Item No.: 200100-21
Sensor Kabel, 10 m, 3-Polig, offen/M8 Buchse, für 24V
Item No.: 200100-22
Adapter, M8 Buchse auf M12, Stecker, gerade
Item No.: 200200-21
