Item No.: 210200-25

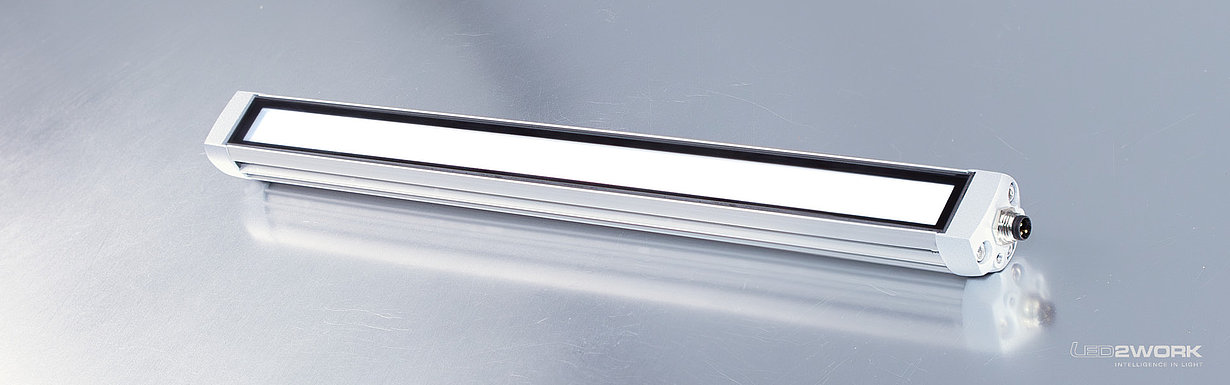

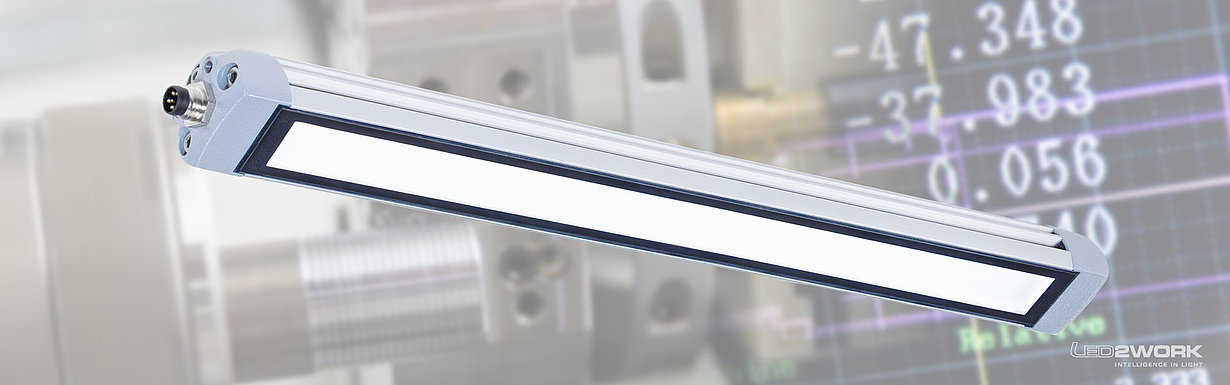

LED machine light
TUBELED_25
Smart use of light
Sleek LED machine light with high brightness and a wide range of uses: The TUBELED_25 was specially designed for use in technical systems, automation, and for tough applications in tool and CNC machines. Because of its low profile, it is perfect for tight installation situations in machines and plants. But that's not all: the light is flicker-free, doesn't emit UV or IR rays, making it ideal for longer visual tasks.
Your advantages
- Bright area light
- Flicker-free lighting, without any UV or IR emissions
- Super slim housing design - perfect for cramped installation spaces
- High protection class: jet-proof and dust-tight
- Suitable for harsh environments with KSS and chip coating
- Electrically connectable versions (able to be linked in a cascade)
Areas of application
- Metalworking: machine tools, computer numerical control (CNC) machines
- Automation and industrial engineering
- Plastics processing
The technique
- Power-optimized LED chips for daylight white
- Beam angle of 100 degrees and excellent color rendering
- IP67 protection rating and longer-than-average lifespan of the LED chips utilized
- Unbreakable, 0.16 inch thick, frosted toughened safety glass
- Resistant to chips, vibrations, and shocks - 100% compatible with CNC machining.
- Oil-resistant seals (FKM seal Viton®)
- The voltage for direct connection is 24 volts DC, and it can be cascaded using the commonly used M8 sensor plug-in connections in automation.
- Housing: optimized aluminum profile for improved heat dissipation - no risk of KSS burn-in.
- UL - and ETL listed test seal
- Mounting using accessories that can be purchased separately
- No maintenance required, 3-year warranty
- Made in Germany
Versions
- 6 lengths: 8.07 inches, 11.42 inches, 14.57 inches, 21.26 inches, 27.76 inches, 34.25 inches
- All variations are also available as cascading (electric chaining) options.
Detail

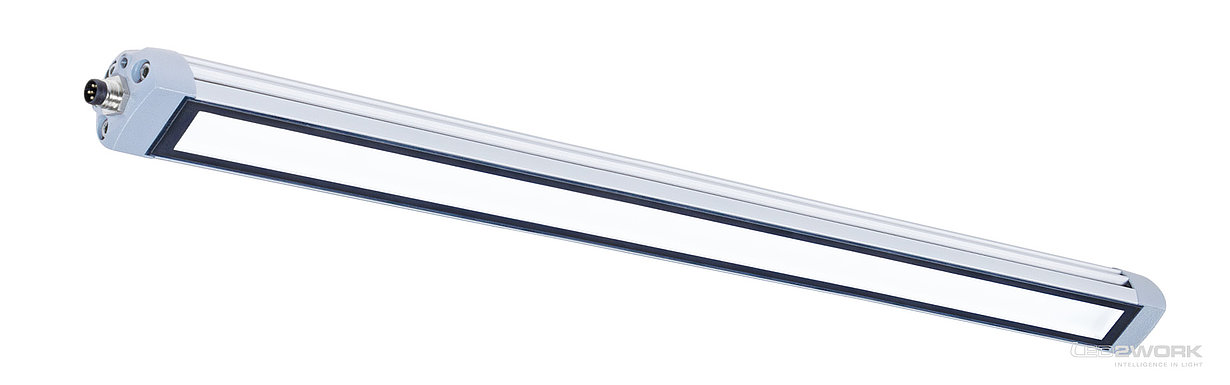

- M8 connector
TUBELED_25
TUBELED_25
| Article number | Power consumption | Lamp luminous flux | Data sheet | ||
|---|---|---|---|---|---|
| TUBELED_25, 8,07 inches | 154010-01 | ~4,3 W | 667 lm | Data sheet | |
| TUBELED_25, 11.42 inches | 154110-01 | ~6,5 W | 1008 lm | Data sheet | |
| TUBELED_25, 14,57 inches | 154210-01 | ~8,6 W | 1333 lm | Data sheet | |
| TUBELED_25, 21.26 inches | 154310-01 | ~13 W | 2015 lm | Data sheet | |
| TUBELED_25, 27,76 inches | 154410-01 | ~17,2 W | 2666 lm | Data sheet | |
| TUBELED_25, 34,25 inches | 154510-01 | ~21,6 W | 3348 lm | Data sheet | |
| TUBELED_25, 40,94 inches | 154610-01 | ~25,9 W | 4015 lm | Data sheet |
TUBELED_25 cascade
| Article number | Power consumption | Lamp luminous flux | Data sheet | ||
|---|---|---|---|---|---|
| TUBELED_25, 8,07 inches, cascadable | 154010-02 | ~4,3 W | 667 lm | Data sheet | |
| TUBELED_25, 11.42 inches, cascadable | 154110-02 | ~6,5 W | 1008 lm | Data sheet | |
| TUBELED_25, 14,57 inches, cascadable | 154210-02 | ~8,6 W | 1333 lm | Data sheet | |
| TUBELED_25, 21.26 inches, cascadable | 154310-02 | ~13 W | 2015 lm | Data sheet | |
| TUBELED_25, 27,76 inches, cascadable | 154410-02 | ~17,2 W | 2666 lm | Data sheet | |
| TUBELED_25, 34,25 inches, cascadable | 154510-02 | ~21,6 W | 3348 lm | Data sheet | |
| TUBELED_25, 40,94 inches, cascadable | 154610-02 | ~25,9 W | 4015 lm | Data sheet |
Product Accessories

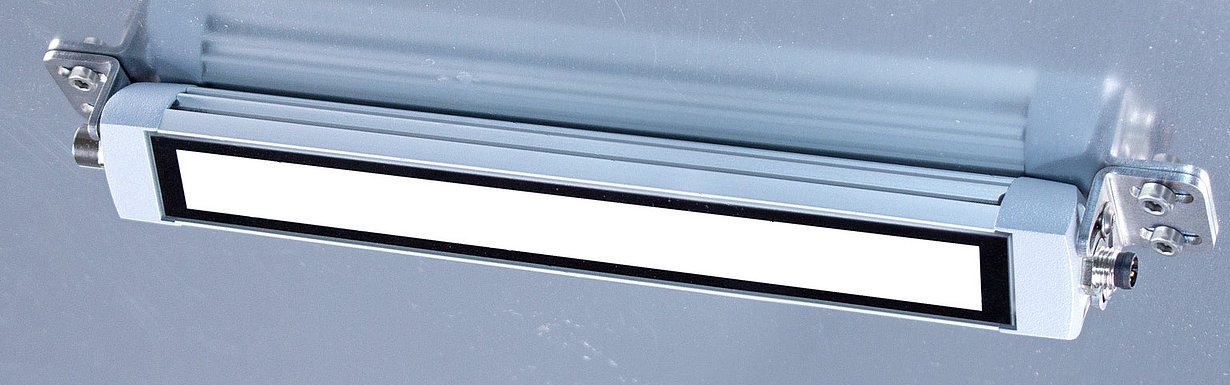

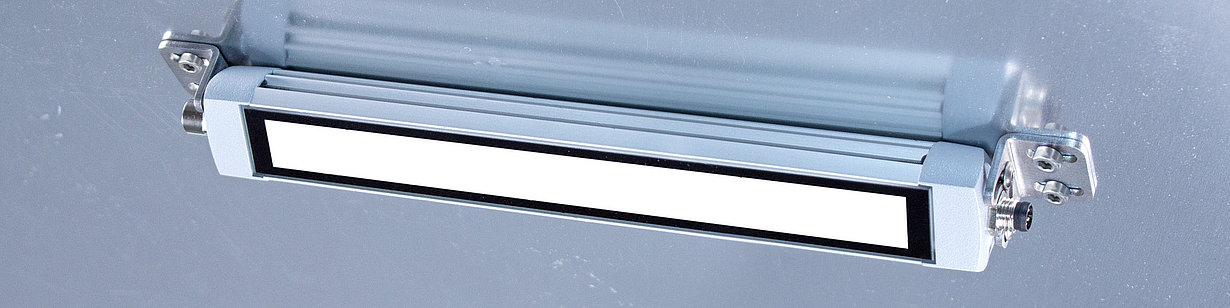

TUBELED_25 light holder, mounting angle 180°.
TUBELED_25 light holder with magnet, mounting angle 180°
Item No.: 210200-26
TUBELED_25 light holder, mounting bracket 60°
Item No.: 210200-23
TUBELED_25 ligth holder with magnet, mounting angle 60°
Item No.: 210200-24
