LED recessed light

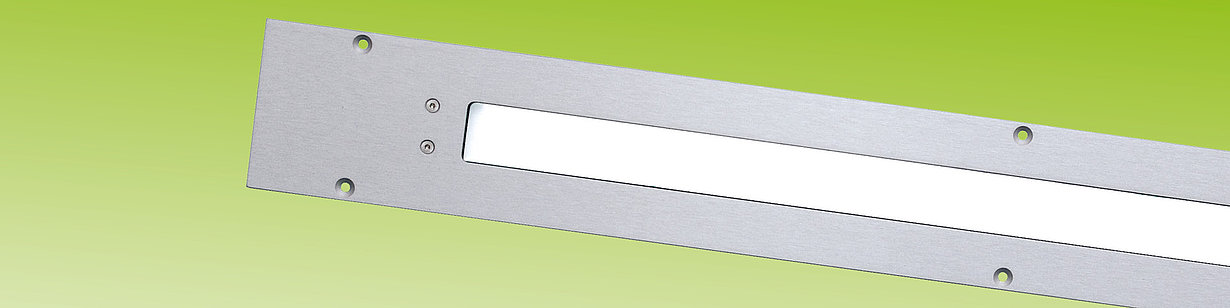

TUBELED_40 II Integrated
Powerful, well-protected, and extremely durable

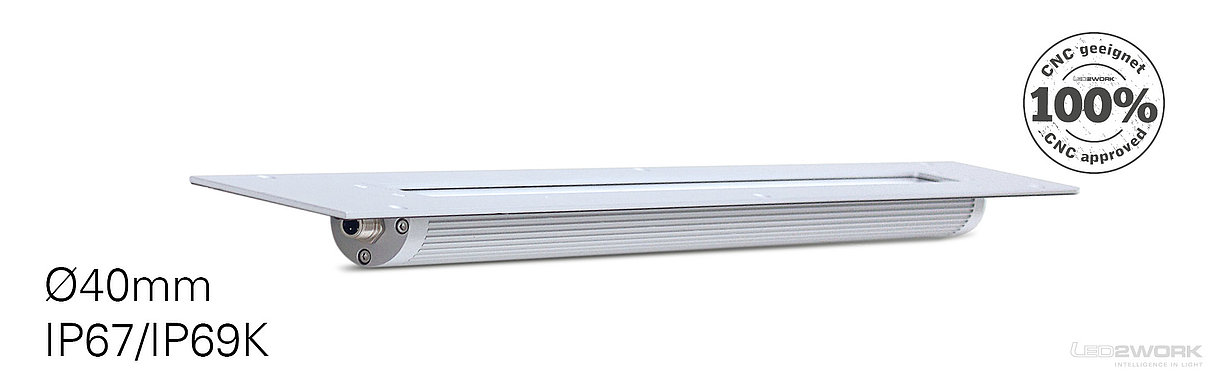

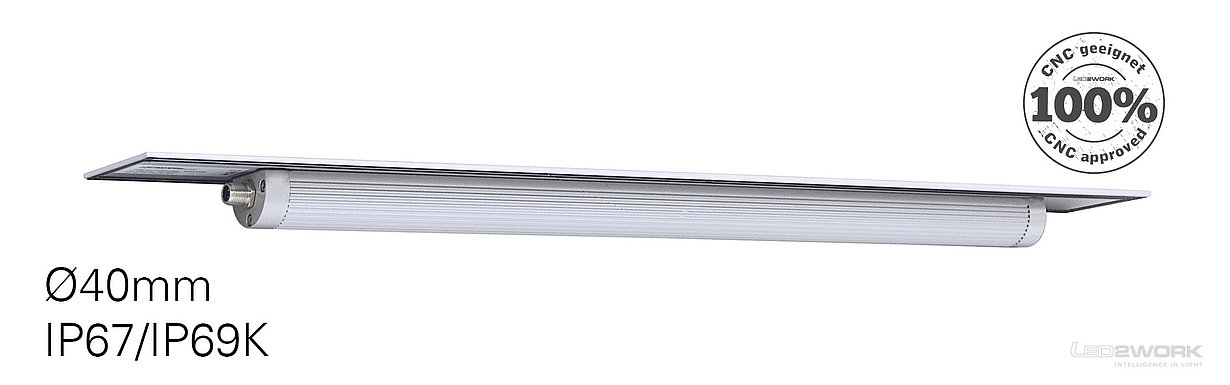

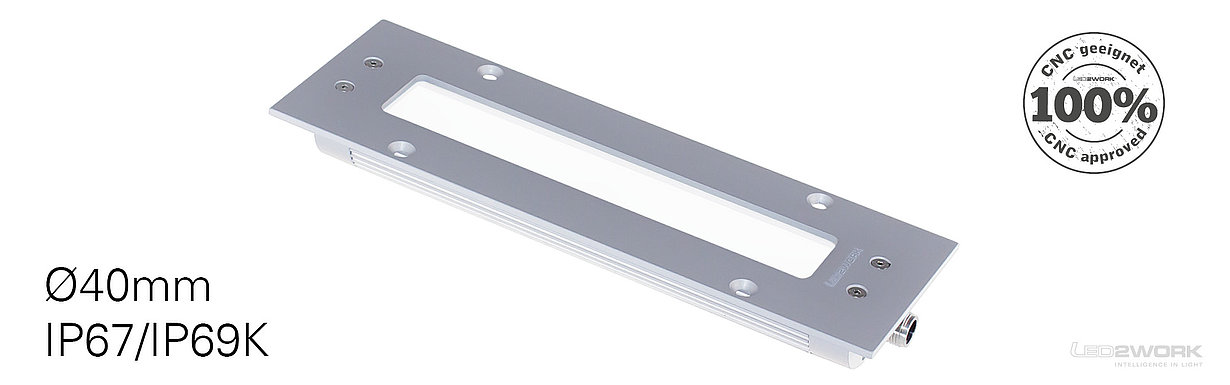

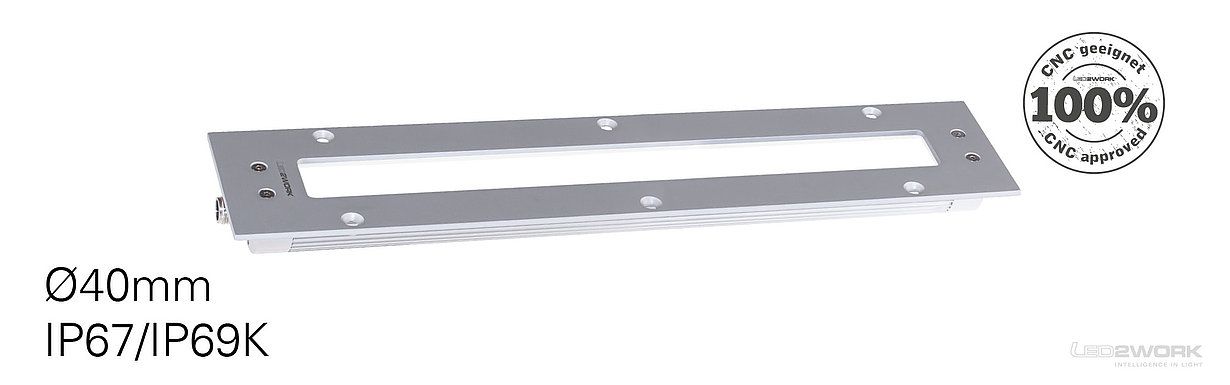

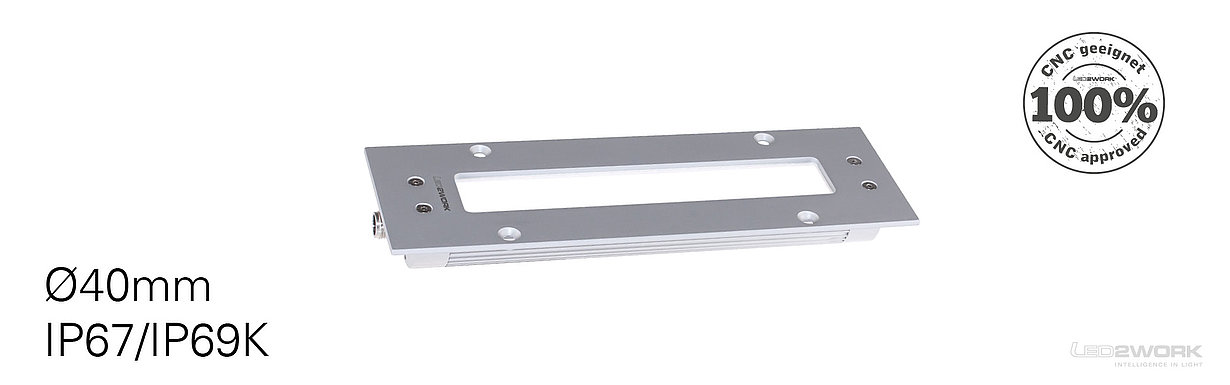

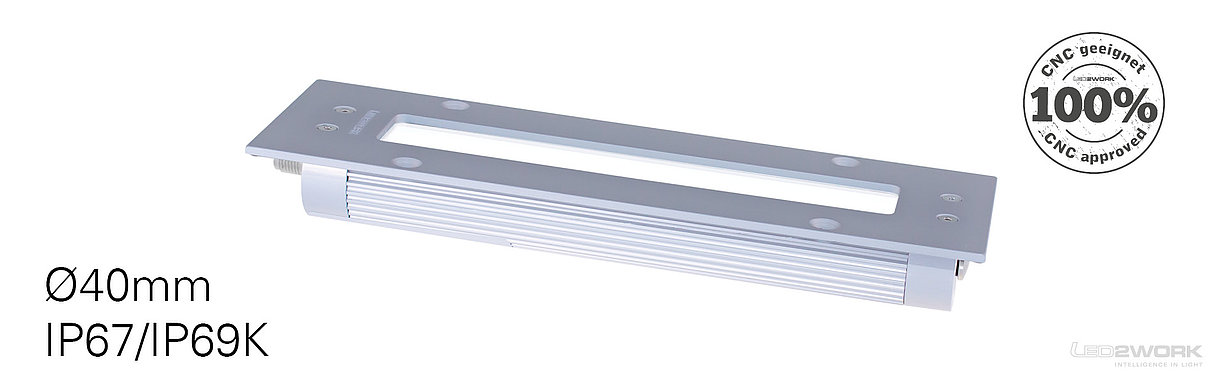

The built-in LED machine light rated IP67/IP69K is the recessed version of the proven TUBELED_40 II surface-mounted fixture. Designed for tough manufacturing environments and suitable for machine tool installation areas, depending on the length, this nearly flush-mount fixture impresses with its strong illumination and high luminous efficiency. By utilizing Light Forming Technology, the emitted 100° wide beam is enhanced in the direction where light is needed.
The TUBELED_40 II Integrated is 100% compatible with CNC machines, as the recessed version of the TUBELED_40 II, with its sturdy housing and safety glass, is fully resistant to flying metal chips, as well as coolants and lubricants.
YOUR BENEFITS
- Powerful and steady lighting, without any UV and IR elements.
- Ample lighting with a 100-degree wide beam
- Compact design: perfect for standard installation spaces
- Quick and simple integration into existing equipment
- High level of protection with an IP67/IP69K rating.
- For higher ambient temperatures
AREAS OF APPLICATION
- Machine tools
- Injection molding machines
- Woodworking machines
- Packaging machines
THE TECHNOLOGY
- High-performance LED chips for daylight white 5200-5700K - high luminous efficacy
- Luminous efficiency optimized by luminous flux and flicker-free lighting without UV and IR components.
- Beam angle 100 degrees and excellent color rendering Ra >85.
- Crack-proof, 0.16 inch thick ESG with opal-white glare shield
- IP67/IP69K rating and lifespan over

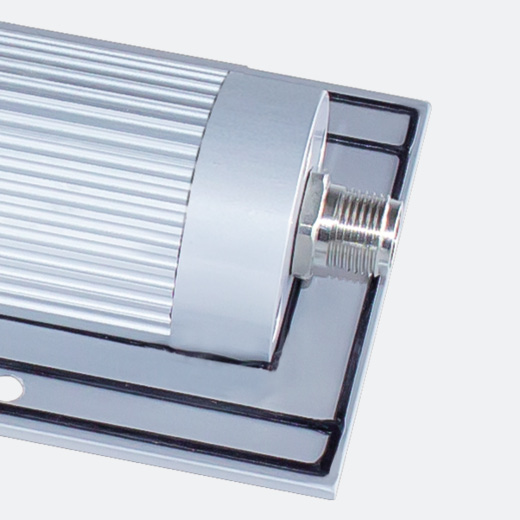

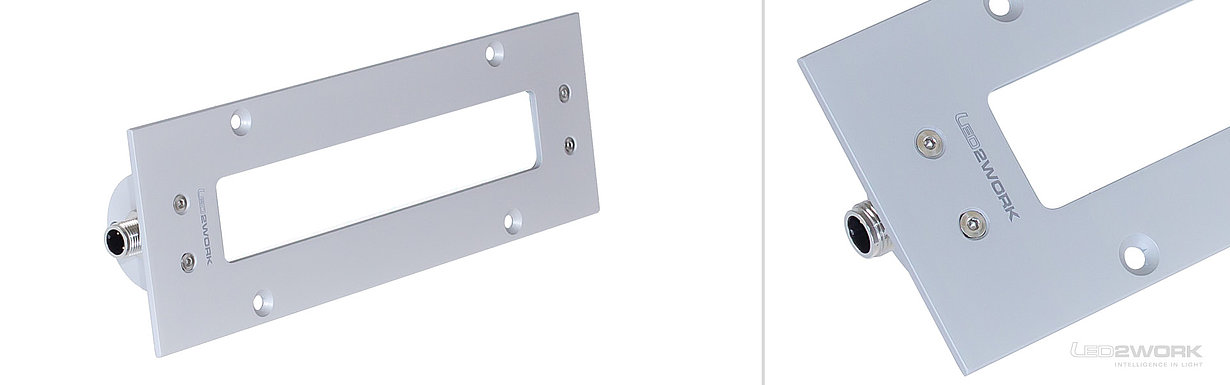

- Directly connect to the 24V DC machine or system voltage using M12 connectors.
- Built to withstand chips flying, vibrations, and impacts - 100% compatible with CNC machining.

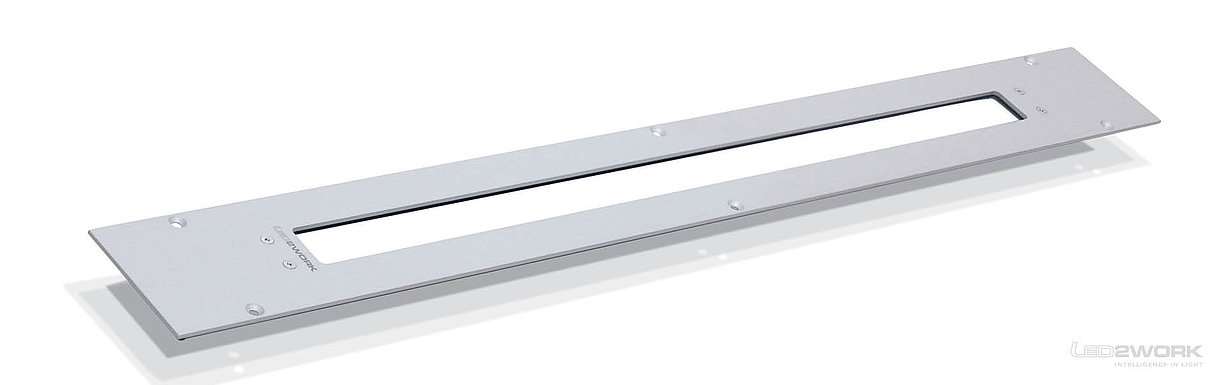

- Recessed light fixture securely mounted with screws through a glare shield.
- Oil-resistant, molded seals
- Light Forming Technology to focus the light beam
- Suitable for use in hotter weather conditions, depending on the design.
- CE and ETL certified seal of approval
- No maintenance required, 3-year warranty
- Made in Germany
VERSIONS
- Glare shield width 2.91 inches in 4 lengths: 8.66 inches, 15.55 inches, 22.44 inches, 29.33 inches.
- Glare shield width 3.07 inches in two lengths: 13.39 inches, 27.56 inches.

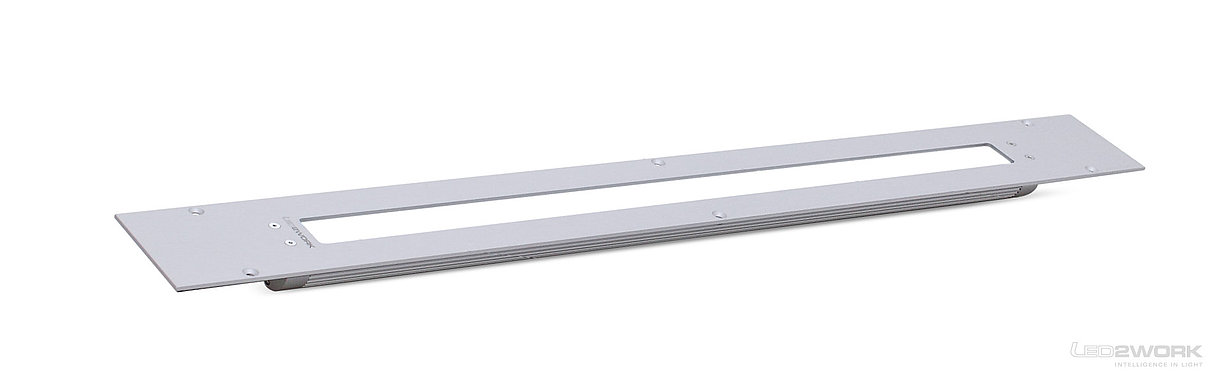

- All versions with only 0.12 inch protrusion after completed installation
TUBELED_40 II Integrated
| Article number | Power consumption | Lamp luminous flux | Data sheet | ||
|---|---|---|---|---|---|
| Recessed light TUBELED_40 II integrated, 8,66“ x 2,91“ x 0,12“ | 151010-01 | ~8 W | 1266 lm | Data sheet | |
| Recessed light TUBELED_40 II integrated Power, 11,18“ x 2,91“ x 0,12“ | 151010-03 | ~8 W | 1078 lm | Data sheet | |
| Recessed luminaire TUBELED_40 II Integrated, 15,55“ x 2,91“ x 0,12“ | 151110-01 | ~16 W | 2531 lm | Data sheet | |
| Recessed luminaire TUBELED_40 II Integrated, 15,55“ x 2,91“ x 0,12“ | 151110-03 | ~12 W | 1899 lm | Data sheet | |
| Recessed luminaire TUBELED_40 II Integrated, 22,44“ x 2,91“ x 0,12“ | 151210-01 | ~24 W | 3797 lm | Data sheet | |
| Recessed luminaire TUBELED_40 II Integrated, 29,33“ x 2,91“ x 0,12“ | 151310-01 | ~24 W | 3797 lm | Data sheet | |
| Recessed luminaire TUBELED_40 II integrated, 13,39“ x 3,07“ x 0,12“ | 152010-01 | ~12 W | 1899 lm | Data sheet | |
| Recessed luminaire TUBELED_40 II Integrated, 27,56“ x 3,07“ x 0,12“ | 152210-01 | ~24 W | Array | Data sheet |
