LED Signal Light
DOMELED
Signaling, Color Changes, IO-Link Functionality

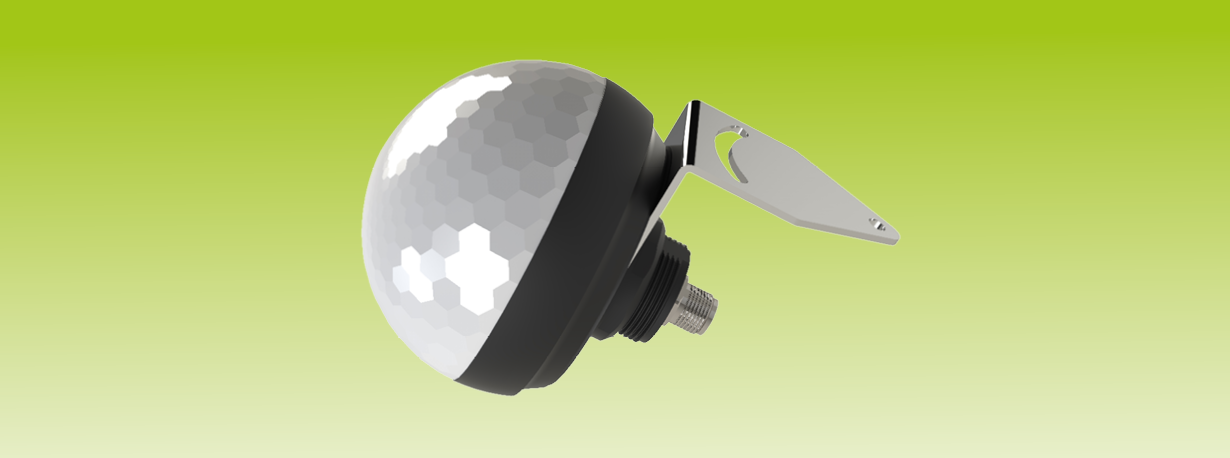

Active color marking of areas and 360-degree visible signals through color changes or blinking: DOMELED is a small yet highly effective signal transmitter for machines and systems. With a diameter of 1.97 in, it’s about the size of a tennis ball. If you need something bigger, the DOMELED with a diameter of 3.54 in is a good choice. Depending on the application, there are two variants: as an indicator light with color changes and as a light with full IO-Link functionality. The DOMELED can be used wherever clear, long-distance visible signaling is required.
Your Benefits
- The colored light, visible from all sides, can signal various machine and system statuses
- Flicker-free, with no UV or IR emission
- Signal function through standard colors and blinking or – with IO-Link – freely definable colors and blinking intervals
- Simple installation or retrofit
Areas of Application
- Machines and production facilities
- Warehousing and picking areas
- Conveyor belts, sorting and assembly lines
- Automation in trades and industry
The Technology
- Multicolor LED chip for standard colors or free color selection and color gradations via IO-Link
- Color changes and blinking possible
- Control directly via the light or via IO-Link in combination with other sensors and actuators
- Glare suppression in opal white with a honeycomb structure
- Translucent cover and 180° optics for excellent visibility
- Sealed to IP67: plastic housing and light dome made of polycarbonate – shockproof and corrosion-resistant
Versions
- Light dome diameter 1.97 in or 3.54 in
- Available as an analog version with color control via PIN assignment or a version with IO-Link functionality for easy integration into automated systems or machines
DOMELED | LED Signal Light
DOMELED
| Article number | White lamp luminous flux | Lamp luminous flux RED | Lamp luminous flux GREEN | Lamp luminous flux BLUE | Lamp luminous flux YELLOW | Data sheet | ||
|---|---|---|---|---|---|---|---|---|
| DOMELED, ~1,97“ | 130190-01 | 282 lm | 95 lm | 227 lm | 66 lm | 146 lm | Data sheet | |
| DOMELED, ~3,54“ | 130290-01 | 551 lm | 197 lm | 466 lm | 132 lm | 303 lm | Data sheet |
DOMELED IO-Link
| Article number | White lamp luminous flux | Lamp luminous flux RED | Lamp luminous flux GREEN | Lamp luminous flux BLUE | Lamp luminous flux YELLOW | Data sheet | ||
|---|---|---|---|---|---|---|---|---|
| DOMELED IO-Link, ~1,97“ | 130190-11 | 282 lm | 95 lm | 227 lm | 66 lm | 146 lm | Data sheet | |
| DOMELED IO-Link, ~3,54“ | 130290-11 | 551 lm | 197 lm | 466 lm | 132 lm | 303 lm | Data sheet |
