LED machine signal lamp

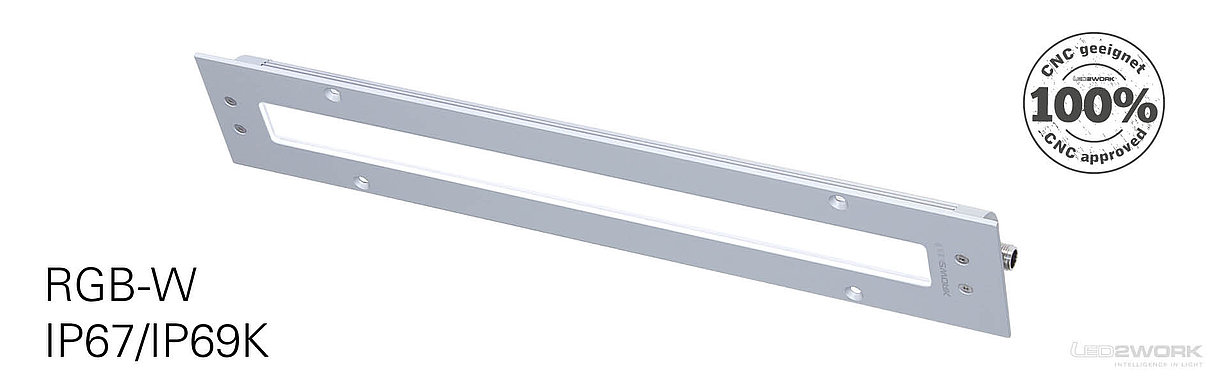

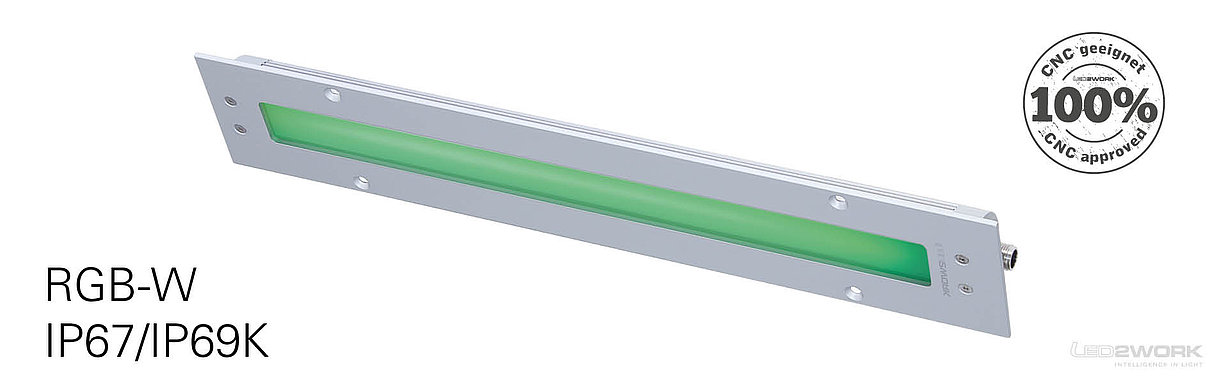

TUBELED_40 II Integrated RGB-W
Flat, robust, and capable of signaling
Optimal illumination and signaling function via color changes: The LED chips in the built-in luminaire TUBELED_40 II Integrated RGB-W are arranged in clusters—white LED chips for optimal illumination and RGB LED chips for color changes within a single luminaire. This low-profile built-in luminaire can be easily installed where harsh conditions—such as chip impact or moisture from coolants and lubricants—prevail, but space for lighting is limited to illuminate the working area. With the machine luminaire featuring RGB-W functionality, these and other production areas are well-illuminated while changes in machine or system status can be signaled by color.
Your Advantages
- Built-in luminaire in standard dimensions – very low profile
- Flicker-free, homogeneous illumination without UV or IR components, plus a signal function via freely definable colors or flashing/strobe intervals
- Optimal illumination through a 100° wide-angle beam
- Easy to install or retrofit into standardized built-in shafts or for self-installation
- Oil- and coolant-resistant, chip-impact resistant
Fields of Application
- Tool and CNC machines
- Injection molding machines
- EDM machines
- Stamping presses
- Production and manufacturing areas with limited space
- Logistics and automation
The Technology
- RGB LED chip and high-performance LED chip clusters for white and colored light in a single luminaire
- 100° beam angle and high color rendering at daylight white 5200–5700K
- RGB LED chips can signal different machine or system states through color changes
- Control of the LED chips via the machine’s or system’s PLC
- Covered with shatterproof 4 mm (0.16 in) safety glass
- Internal light-forming technology
- Space-saving geometry
- Heat dissipation via aluminum profile at the back
- Various lengths and widths
- Protection class IP67/IP69K
- Suitable for CNC
- Manufactured in Germany
TUBELED_40 II Integrated RGB-W
| Article number | White lamp luminous flux | Lamp luminous flux RED | Lamp luminous flux GREEN | Lamp luminous flux BLUE | Data sheet | ||
|---|---|---|---|---|---|---|---|
| TUBELED_40 II Integrated RGB-W, 8,66“ x 2,91“ x 0,12“ | 151090-01 | 767 lm | 92 lm | 168 lm | 56 lm | Data sheet | |
| TUBELED_40 II Integrated RGB-W, 15,55“ x 2,91“ x 0,12“ | 151190-01 | 1215 lm | 240 lm | 345 lm | 150 lm | Data sheet | |
| TUBELED_40 II Integrated RGB-W, 22,44“ x 2,91“ x 0,12“ | 151290-01 | 2430 lm | 480 lm | 690 lm | 300 lm | Data sheet | |
| TUBELED_40 II Integrated RGB-W, 29,33“ x 2,91“ x 0,12“ | 151390-01 | 2430 lm | 480 lm | 690 lm | 300 lm | Data sheet | |
| TUBELED_40 II integrated RGB-W, 13,39“ x 3,07“ x 0,12“ | 152090-01 | 1215 lm | 240 lm | 345 lm | 150 lm | Data sheet | |
| TUBELED_40 II integrated RGB-W, 27,56“ x 3,07“ x 0,12“ | 152290-01 | 2430 lm | 480 lm | 690 lm | 300 lm | Data sheet |
