Item No.: 220500-01
LED flexible arm lights

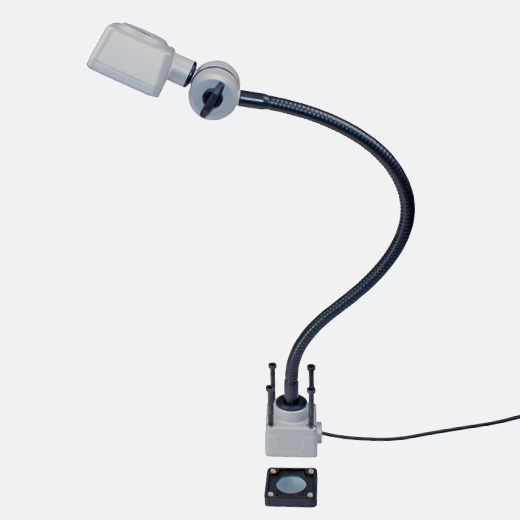

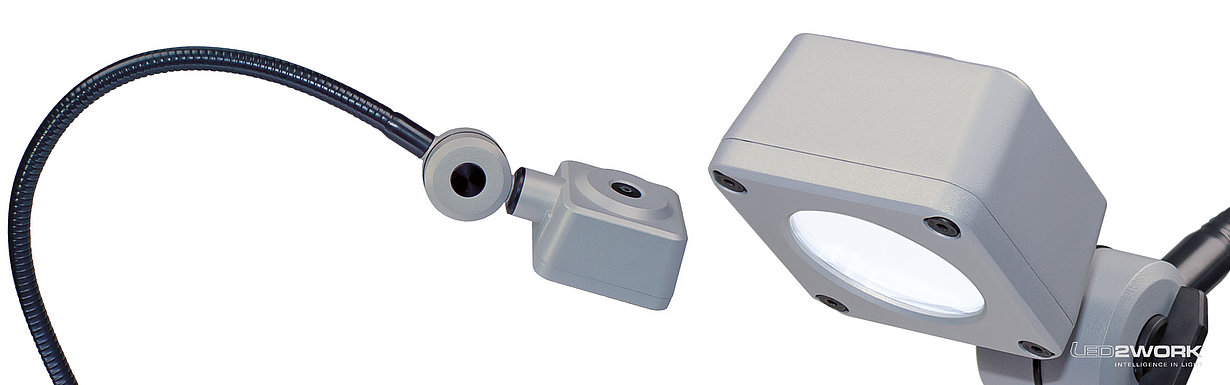

CENALED SPOT Gooseneck
Versatile, flexible, robust
The CENALED SPOT brings light to every workplace. Use in a machine tool is just as feasible as the lighting of a workbench. The flexible LED luminaire with jacketed, oil-resistant flexible arm and safety glass to protect the high-performance LEDs cuts a fine figure even under harsh manufacturing conditions. Equipped with a backplate and optional magnetic base, the CENALED SPOT can be used anytime, anywhere you need light.
The LED flex arm luminaire is part of the CENALED modular system. By using standardized parts made of aluminum die casting alloy from German manufacturers and being in strict compliance with the applicable regulations, the CENALED series offers energy-efficient and cost-attractive workplace lighting using the latest technologies.
YOUR ADVANTAGES
- 80% more energy-efficient and brighter than a 50W halogen version
- Medium beam angle
- Intense illumination using neutral white light with a high level of detail
- Dimmable using buttons on the light fixture head
- The light path can be smoothly and precisely directed by an adjustable flexible arm.
- Oil-resistant jacketed flexible arm and safety glass, suitable for rugged manufacturing environments

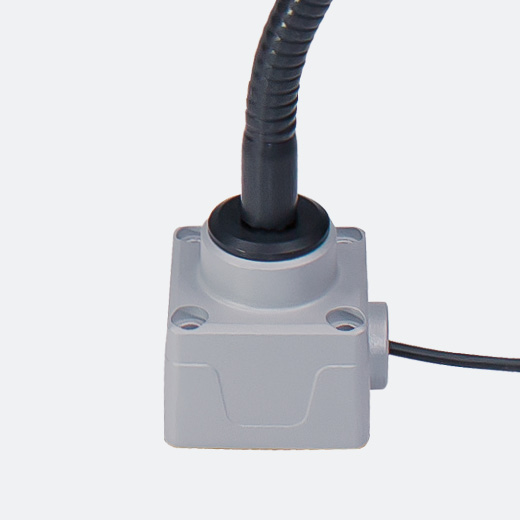

- All-purpose backplate, adaptable to optional mounting accessories: magnetic holder, table clamp, or wall mount bracket
AREAS OF APPLICATION
- Craft production, manufacturing and metalworking shops
- Working areas of processing systems and standalone machines
- Suitable for use in tight spaces
- Testing station
- Workbench
- Microscope lighting
- Drill press
- Conventional machine tool
THE TECHNOLOGY
- High-performance LED chips for cool white light
- High color rendering
- Medium beam angle for focused light
- Dimmable using buttons on the light fixture head
- Long LED chip life
- Crack-proof 0.15 inch safety glass
- Insulated, water-resistant and oil-resistant flexible hose
- Top-quality gooseneck - extremely flexible, tested by completing 20,000 bending cycles
- Very little heat is generated as a result of thermal management within the enclosure.
- DC Version: IP67 protection rating and 24V DC supply voltage via a 10ft cable and exposed wires.
- AC version: IP65 rating and supply voltage 100-305V AC via 9.8ft power cable and NEMA 5-15P
- Maintenance-free, 3-year warranty
- Manufactured in Germany
Executions
- 2 versions: CENALED SPOT DC Gooseneck with 24V DC and CENALED SPOT AC Gooseneck with a wide input voltage range 110-305V AC
- Various mounting options using optional accessories, such as a magnetic holder, table clamp, or wall mount bracket.
CENALED SPOT Flexible Arm
| Article number | Power consumption | Lamp luminous flux | Data sheet | ||
|---|---|---|---|---|---|

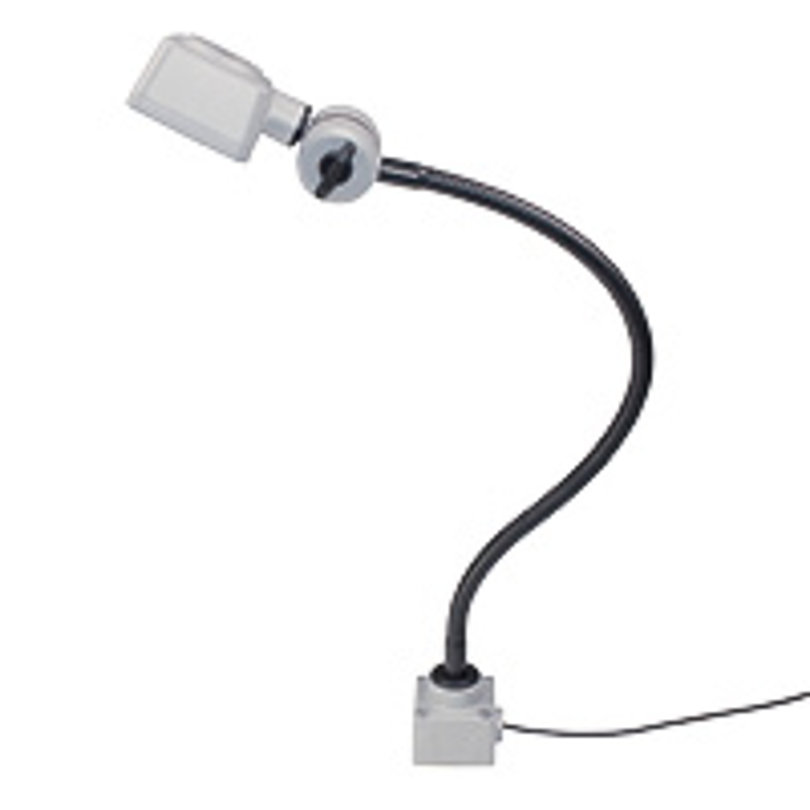

| CENALED SPOT DC Flexarm | 121012-01 | ~8,5 W | 1120 lm | Data sheet | |

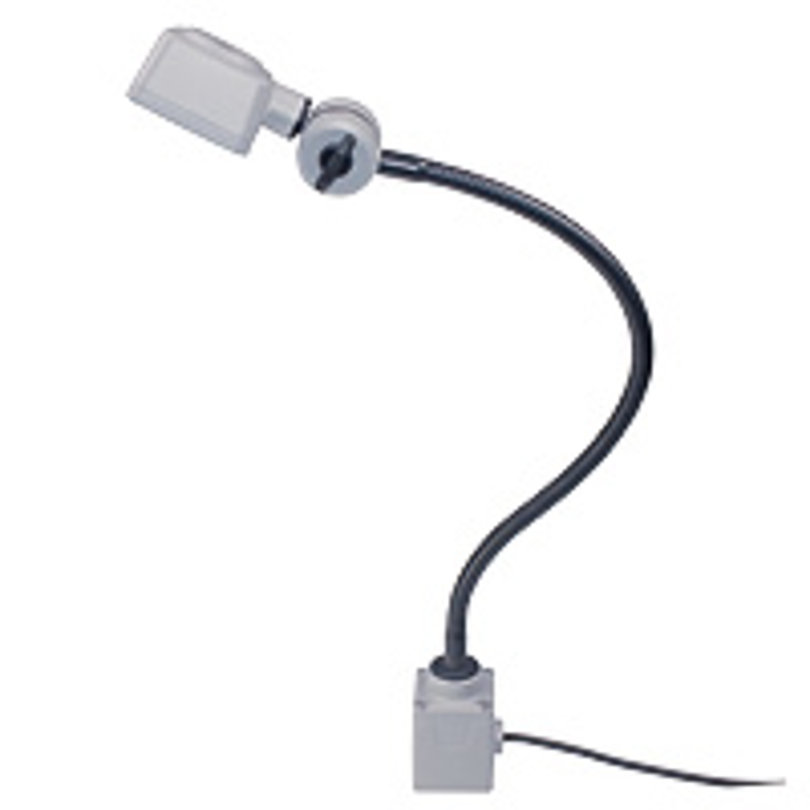

| CENALED SPOT AC, Flexarm | 121012-21 | ~9 W | 1120 lm | Data sheet |
Product Accessories
CENALED magnetic clamp for screw-on base
CENALED table clamp for screw-on base
Item No.: 220500-02
CENALED wall bracket for screw-on base
Item No.: 220500-03
