Item No.: 214300-01
LED Surface-Mounted Luminaire

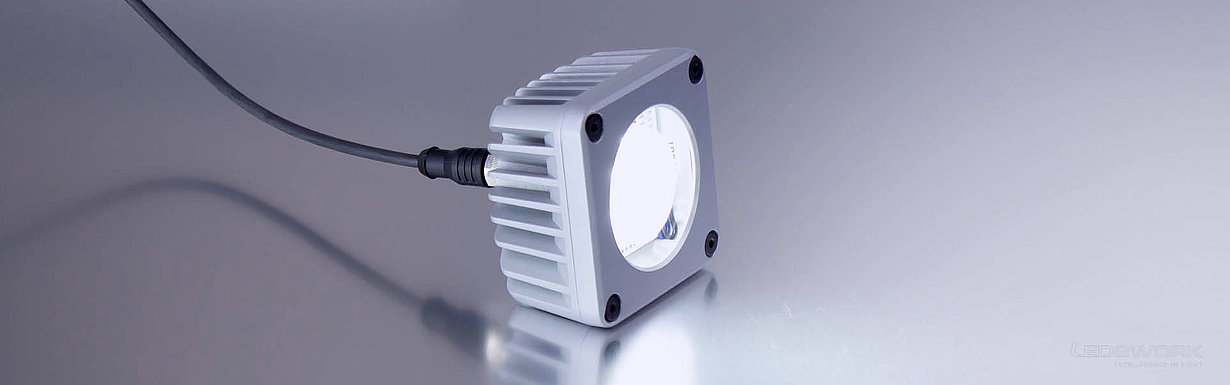

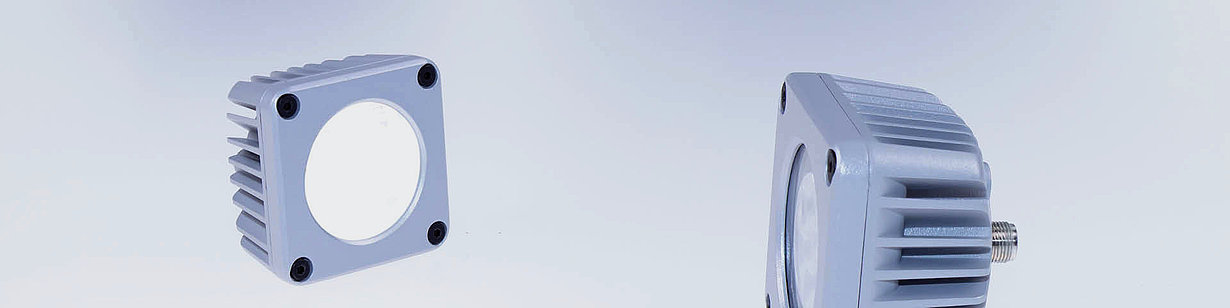

CENALED SPOT Surface Mount
Compact, robust, and powerful
The CENALED SPOT series is a modern and economical solution for illuminating work areas. The compact CENALED SPOT Surface Mount is particularly suitable for tight spaces and, thanks to state-of-the-art LED technology, provides excellent illumination. The robust aluminum housing and safety glass protect the luminaire from external influences such as flying chips or coolants.
Depending on the installed optics, the CENALED SPOT Surface Mount can be used as a focused spotlight or for wide-area illumination. It can be mounted directly onto a flat surface, for example inside a machine enclosure. Alternatively, the luminaire can be attached to an optional articulated bracket, allowing rotation and secure positioning in almost any direction.
Thanks to its high protection rating, the CENALED SPOT Surface Mount is well protected against dust and moisture, making it ideal for use in demanding work environments.
Your Benefits
- Compact, robust LED luminaire with cutting-edge technology
- Bright illumination in neutral white with high detail clarity
- High protection rating – dustproof and splashproof
- Available with 15°, 30°, or 65° optics
Fields of Application
- Machine tools or machine workstations
- Systems and production rooms with limited space
- Workbenches and inspection stations
- Camera applications for industrial image processing
The Technology
- High-performance LED chips in neutral white
- High color rendering
- Three versions with different beam angles
- Impact-resistant single-pane safety glass
- Minimal heat generation thanks to smart thermal management
- IP67 protection rating and 24V DC supply via M12 A-coded connector
- Manufactured in Germany
Versions
- 3 versions: 15°, 30°, or 65° optics
- Included in the delivery for all versions of the surface-mounted luminaire: LED luminaire and seal ring for rear mounting
CENALED SPOT Surface-Mounted
| Article number | Power consumption | Lamp luminous flux | Data sheet | ||
|---|---|---|---|---|---|
| Machine light CENALED SPOT Aufbau DC, (surface mounted light), optics 15° | 121011-04 | ~8,5 W | 1120 lm | Data sheet | |
| Machine light CENALED SPOT Aufbau DC, (surface mounted light), optics 30° | 121012-04 | ~8,5 W | 1120 lm | Data sheet | |
| Machine light CENALED SPOT Aufbau DC, (surface mounted light), optics 65° | 121013-04 | ~8,5 W | 1120 lm | Data sheet |
Product Accessories
SPOTLED II articulated joint
